点击放大查看

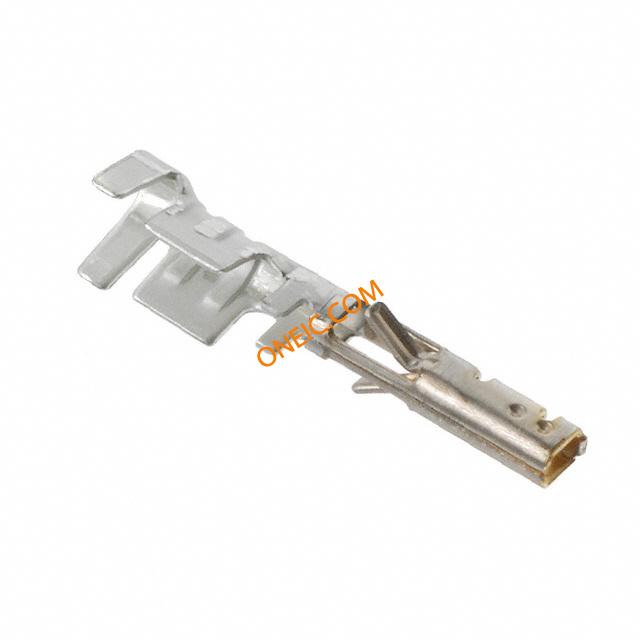

0430300002
| 制造商 | Molex, LLC |
| 描述 | . 0430300002 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 60 Days | 其他名称 | WM1125CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Crimp |
机械参数
| 深度 | 2.54 mm | 间距 | Not Required mm |
| 高度 | 2.29 mm | 重量 | 1 g |
| 包装方式 | Reel | 导线线规 | 20-24 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 封装形式 | roll |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 11.25 mm | 包装数量 | 12000 |
| 连接器 - 电缆 | contact | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 15µin (0.38µm) |
| 线规或范围 - mm² | 0.205...0.519mm2 | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 12000 | 类型 | Power |
| 连接器性别 | SKT | 系列 | Micro-Fit 3.0™ 43030 |
| 适配器系列 | Micro-Fit 3.0 | 单元数量 | 12000 |
| 行业别名 | 43030-0002, 430300002 | 工具类型/特性 | MX-63812-0800, MX-63819-0000, MX-63901-8900 |
| 适用产品/相关产品 | 0430300008 | ||
