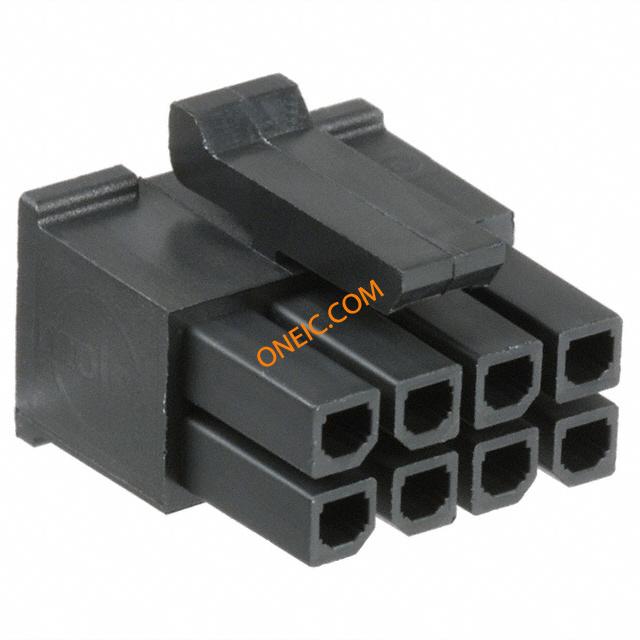

0430250800
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 8 POS 3mm Crimp ST Bag CONN RECEPT 8POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:8; w/o terminals; 5A; UL94V-0 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 1,500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 5A |
| 最小输入电压 | 600VDC|600VAC | 最小供电电压 | 600VDC/600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 14 mm |
| 间距 | 0.118" (3.00mm) | 高度 | 11.56 mm |
| 重量 | 1.05 g | 材料（通用） | polyester |
| 钻孔直径 | 9mm | 包装方式 | Bag |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Female Socket |
| 柱间距 | 3mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 2 | 锁定特性 | lock |
| 壳体材料 | Polyester | 总长度 | 12.85 mm |
| 包装数量 | 2500 | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 第一连接器安装特征 | 2x4 | ||
产品信息
| SPG | 2500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | Micro-Fit 3.0 | 单元数量 | 1 |
| 行业别名 | 43025-0800, 430250800 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0430300006
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP

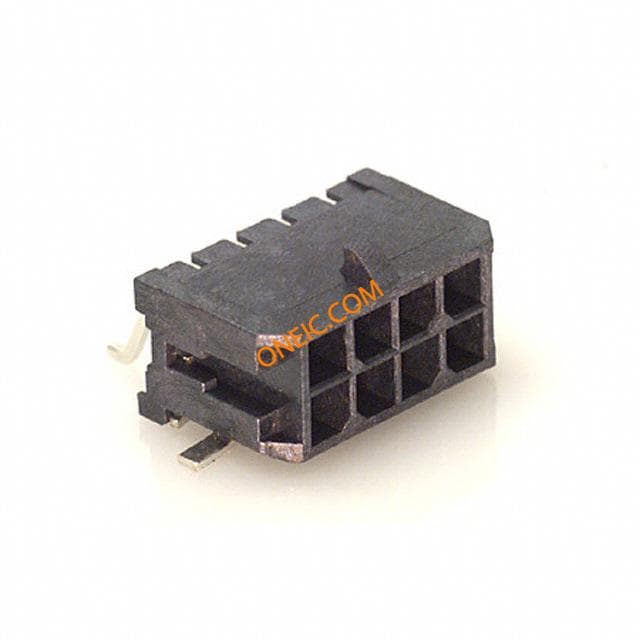

0430450811
molex
Conn Wire to Board HDR 8 POS 3mm Solder RA SMD T/R Conn Wire to Board HDR 8 POS 3mm Solder RA SMD Embossed T/R CONN HEADER 8POS RT ANG SMD GOLD
0430450818
molex
Conn Wire to Board HDR 8 POS 3mm Solder ST SMD T/R Conn Wire to Board HDR 8 POS 3mm Solder ST SMD Embossed T/R CONN HEADER 8POS VERT SMD TIN

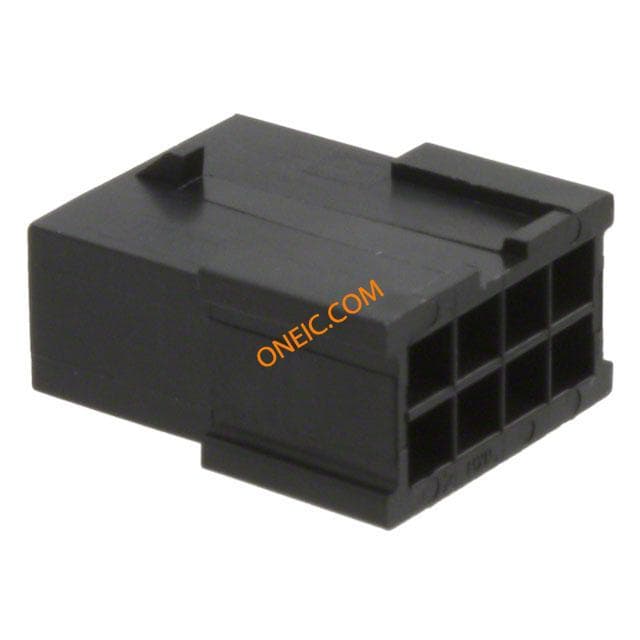

0430200801
molex
Conn Housing PL 8 POS 3mm Crimp ST Bag Conn Housing M 8 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 8POS 3MM VERT DUAL
0430450802
molex
Conn Wire to Board HDR 8 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 8POS 3MM R/A GOLD

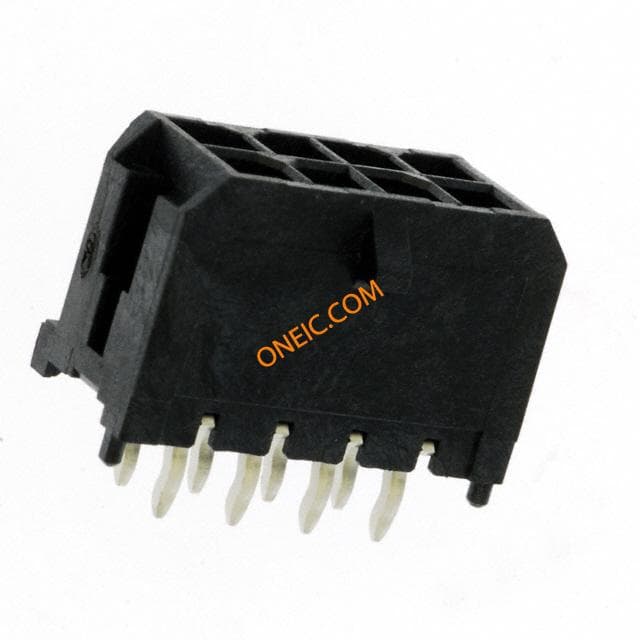

0430450813
molex
Conn Wire to Board HDR 8 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 8POS 3MM VERT GOLD
0430300010
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned
0430200800
Molex
Conn Housing M 8 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 8POS 3MM DUAL PNL MNT Plug; wire-board; male; 3mm; PIN:8; Series: Micro-Fit 3.0; UL94V-0

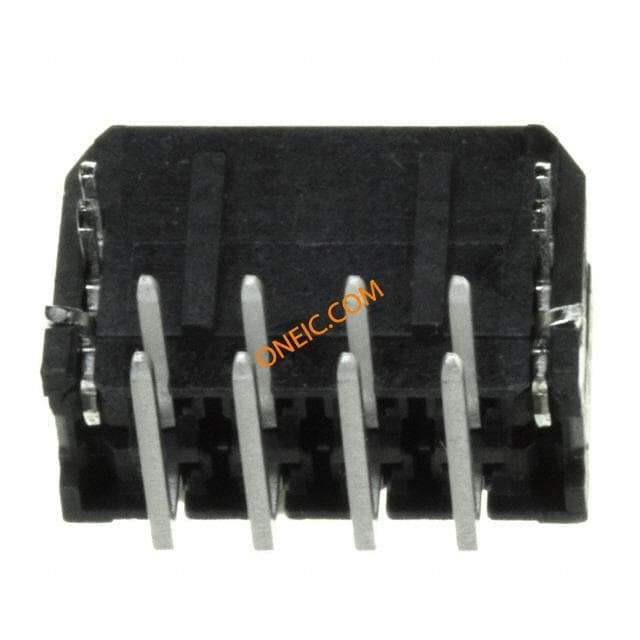

0430450822
Molex, LLC
. 0430450822 - Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm) from Molex. from now!

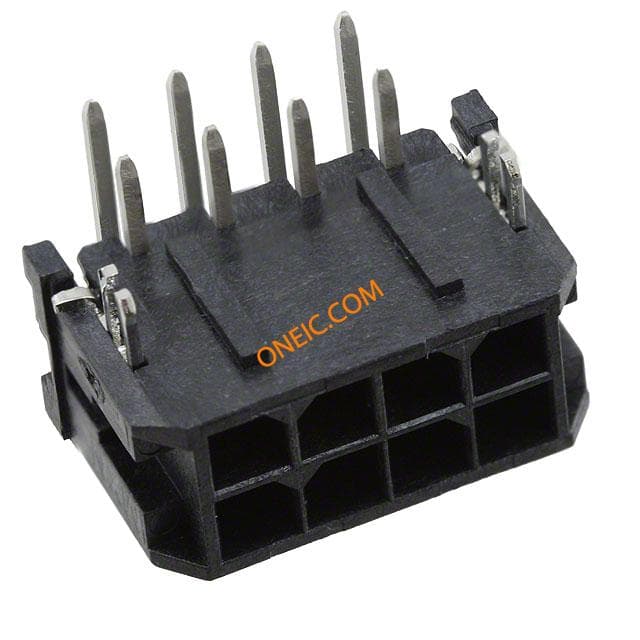

0430450823
Molex
Conn Wire to Board HDR 8 POS 3mm Solder RA Thru-Hole Tray CONN HEADER R/A DUAL GOLD 8CKT

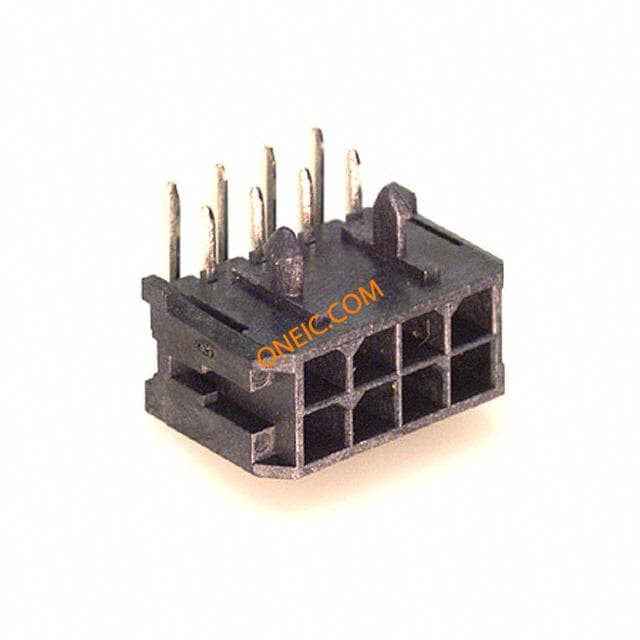

0430450800
Molex
Conn Wire to Board HDR 8 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 8POS 3MM RT ANG TIN Socket; wire-board; male; 3mm; PIN:8; tinned; Series: Micro-Fit 3.0 Connector
0430450814
Molex, LLC
. 0430450814 - Connector Header Through Hole 8 position 0.118" (3.00mm) from Molex. from now!

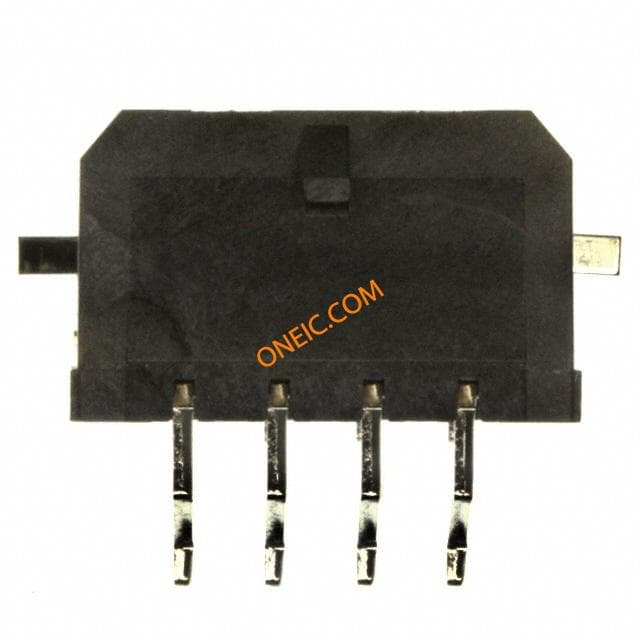

0430450809
Molex
Conn Wire to Board HDR 8 POS 3mm Solder RA SMD Embossed T/R CONN HEADER 8POS RT ANG SMD TIN Conn Wire to Board HDR 8 POS 3mm Solder RA SMD T/R Socket; wire-board; male; 3mm; PIN:8; tinned; Series: Micro-Fit 3.0
0430450812
Molex
Conn Wire to Board HDR 8 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 8POS 3MM VERT TIN Socket; wire-board; male; 3mm; PIN:8; tinned; Series: Micro-Fit 3.0

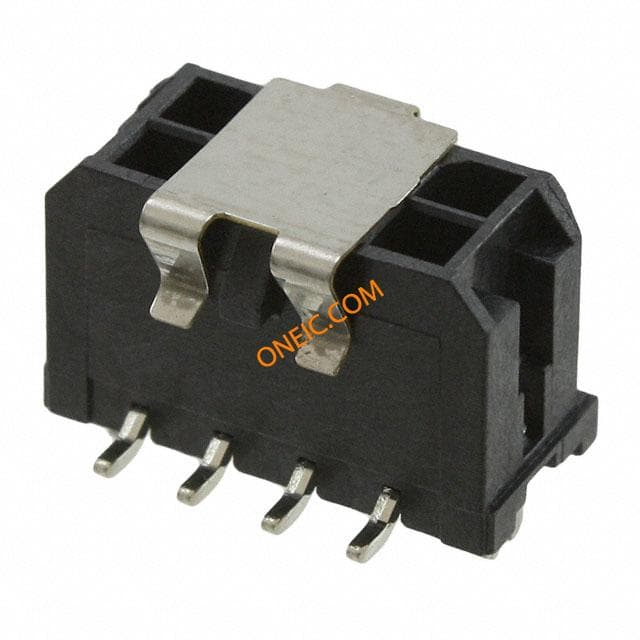

0430450815
Molex, LLC
. 0430450815 - Connector Header Surface Mount 8 position 0.118" (3.00mm) from Molex. from now!

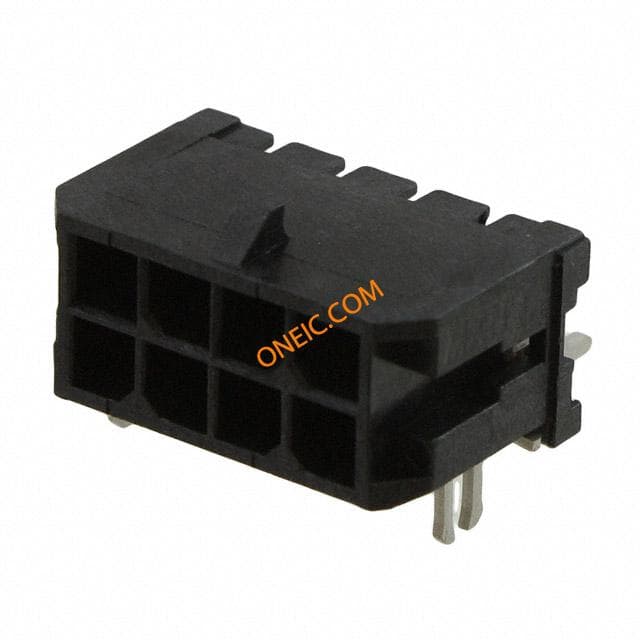

0430450807
Molex, LLC
. 0430450807 - Connector Header Surface Mount, Right Angle 8 position 0.118" (3.00mm) from Molex. from now!

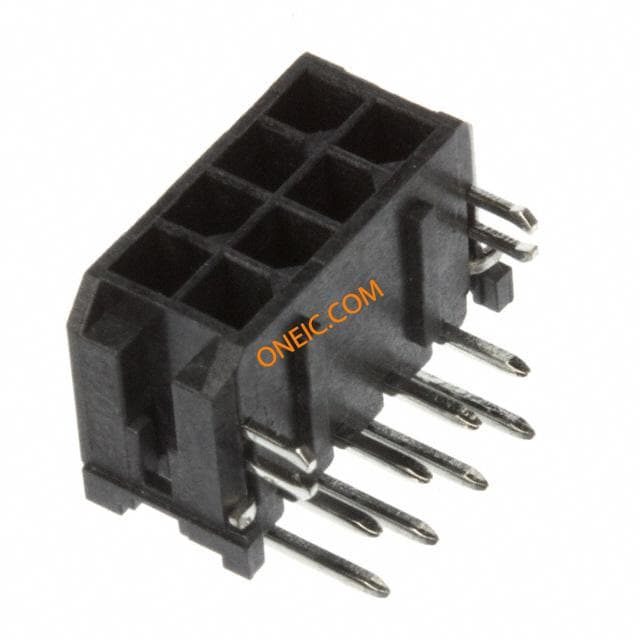

0430450821
Molex
Conn Wire to Board HDR 8 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 8POS 3MM R/A TIN Conn Wire to Board HDR 8 POS 3mm Solder RA Thru-Ho
0462355004
Molex Inc
CONN TRM 30U 26-30AWG LUBRICATE

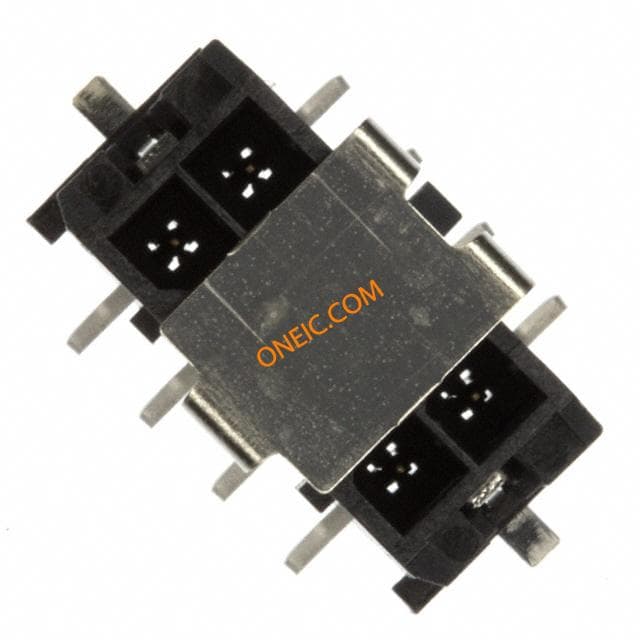

0430450819
Molex Inc
CONN HEADER 8POS 3MM STR SMD AU

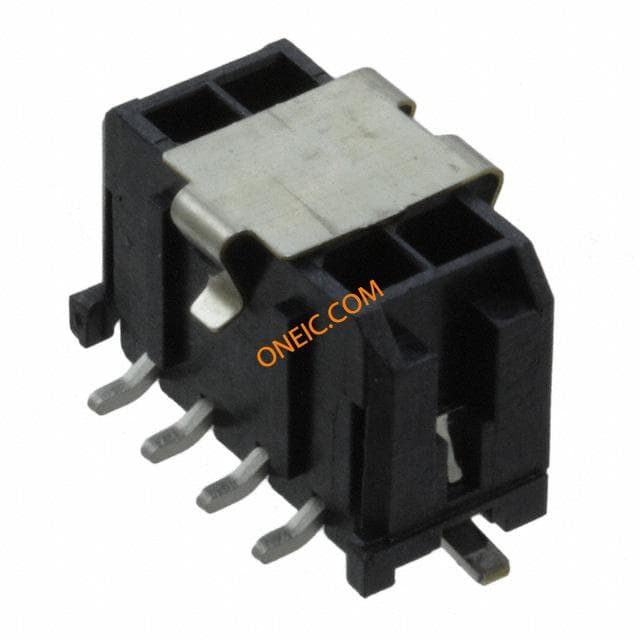

43045-0820
