点击放大查看

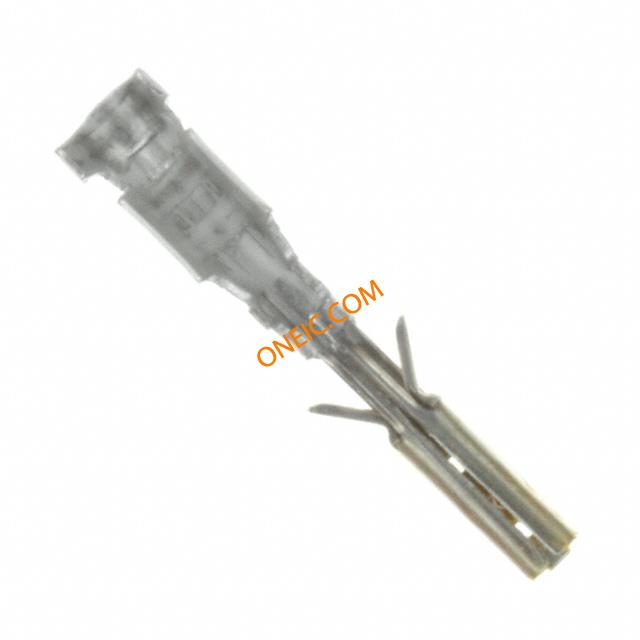

0430300006
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP |
| 分类 |
商业参数
| 交货时间 | 20 Days | 其他名称 | WM2779CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 5 |
机械参数
| 深度 | 2.1 | 高度 | 1.91 |
| 包装方式 | Reel | 导线线规 | 26-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 总长度 | 11 | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 行业别名 | 43030-0006, 430300006 | 适用产品/相关产品 | 0430300012 |
环境参数
| 工作温度 | 105 | ||
文档与媒体
相关型号
0430250200
molex
Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:2; w/o terminals; 5A; UL94V-0
0430250600
Molex, LLC
. 0430250600 - 6 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0436450200
Molex, LLC
. 0436450200 - 2 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!

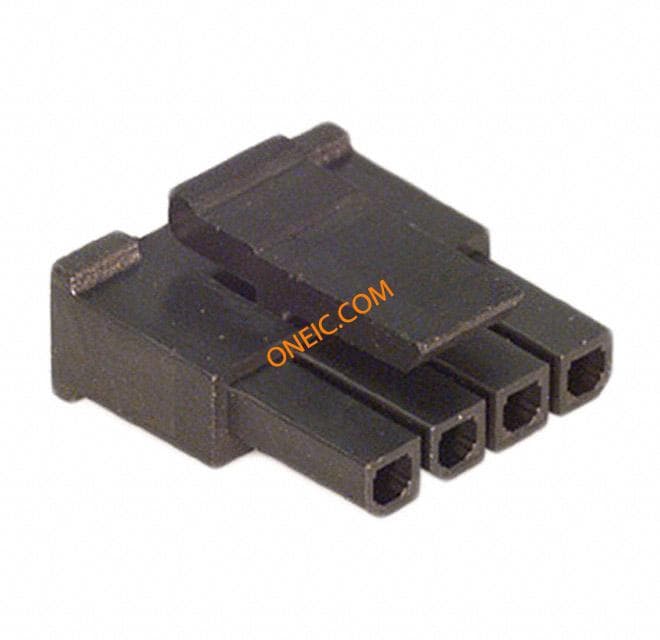

0436450400
molex
Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 4POS 3MM SINGLE ROW Plug; wire-board; female; 3mm; PIN:4; w/o terminals; 5A; UL94V-0
0430251200
molex
Conn Housing RCP 12 POS 3mm Crimp ST Cable Mount Bag Conn Housing F 12 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 12POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:12; w/o terminals; 5A; UL94V-0

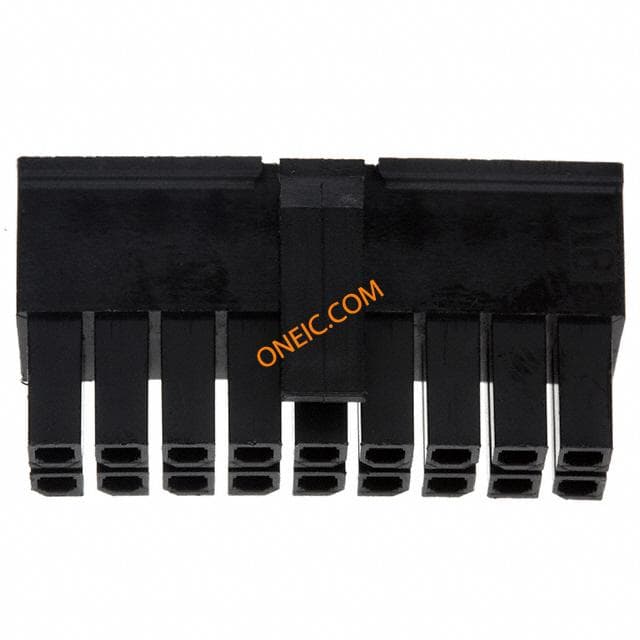

0430251800
molex
Conn Housing RCP 18 POS 3mm Crimp ST Bag Conn Housing F 18 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 18POS 3MM DUAL ROW Plug; wire-board; female; 3mm; PIN:18; w/o terminals; 5A; UL94V-0
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0
0430252400
Molex, LLC
. 0430252400 - 24 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0638120800
molex
INSERTION TOOL Insertion Tool For Micro-Fit 3.0 Crimp Terminal INSERTION TOOL 20-30 AWG CRIMP
0639001600
molex
Connector Accessories Crimp Applicator Tool Fineadjust Applicator, Use With Small Wire Insulation Diameter FINE ADJUST APPLICATOR
0638190000
Molex
Hand Crimp Tool TOOL CRIMP 20-30AWG MICROFIT 3.0 Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,05÷0,12mm2,0,2÷0,5mm2
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0430250800
Molex
Conn Housing RCP 8 POS 3mm Crimp ST Bag CONN RECEPT 8POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:8; w/o terminals; 5A; UL94V-0
0639104400
Molex
T2 Terminator Tooling Die For Micro-Fit 3.0 Crimp Terminal T2 TERMINATOR ASSEMBLY

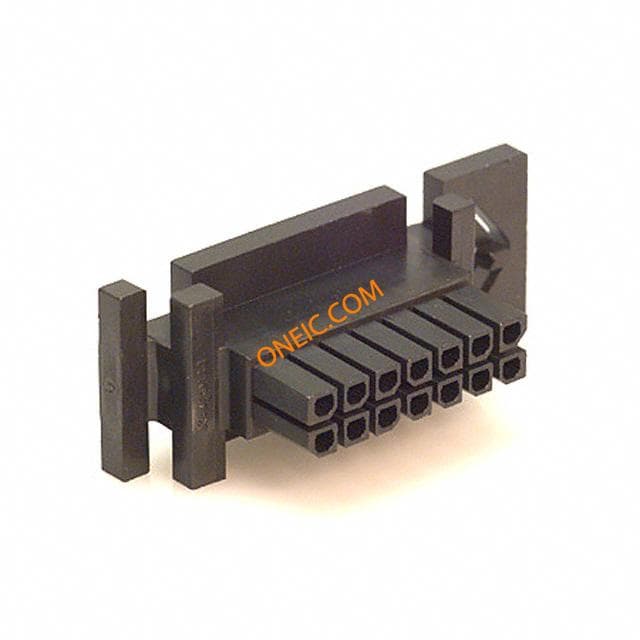

0441331400
Molex, LLC
. 0441331400 - 14 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0639004400
Molex
Fine-Adjust Applicator For Micro-Fit Crimp Terminal, 26-30 AWG FINE ADJUST APPLICATOR

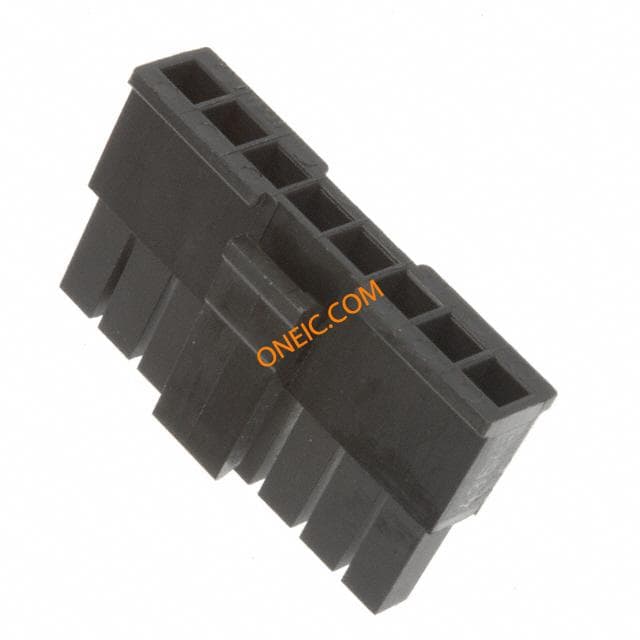

0436450800
Molex Inc
CONN RECEPT 8POS 3MM SINGLE ROW

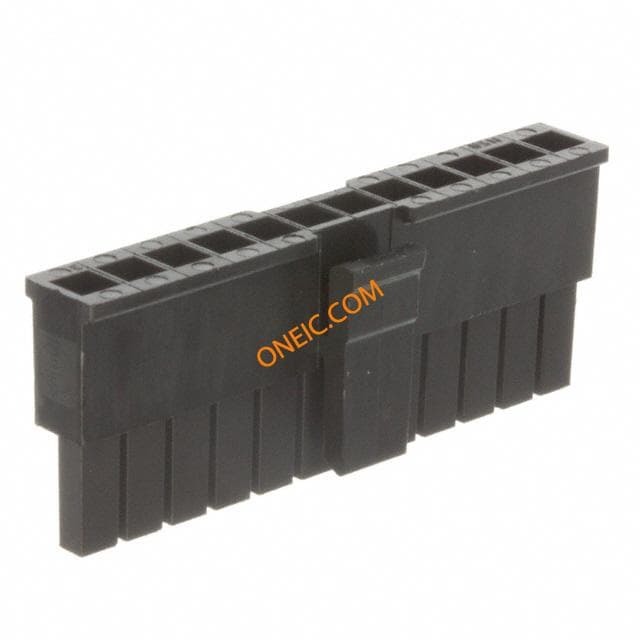

43645-1200
Molex Connector Corporation
CONN RECEPT 12POS 3MM SINGLE ROW Headers & Wire Housings RECEPTACLE SINGLE 12 Conn Housing RCP 12 POS 3mm Crimp ST Bag PLUG & SOCKET CONNECTOR, RCPT, 12POS, 3MM MICROFIT3.0RECEPTACLESGLROW12CKT Female contact housing single row Pitch3 mm Poles 1 x 12 Micro-Fit, 43645-1200, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 12 路 直 母 电缆安装 压接连接器外壳

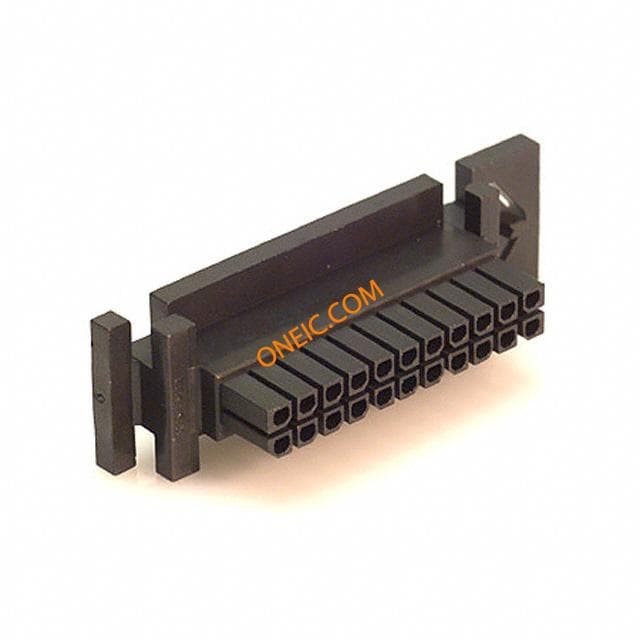

44133-2200
Molex Connector Corporation
CONN RECEPT 22POS 3MM DUAL ROW Headers & Wire Housings 3MM MICRO-FIT Recept. 22 CKT 3.00mm Micro-Fit 3.0 BMI™ Receptacle Housing, Dual Row, Panel Mount, 22 Circuits, PBT Polyester, UL 94V-0

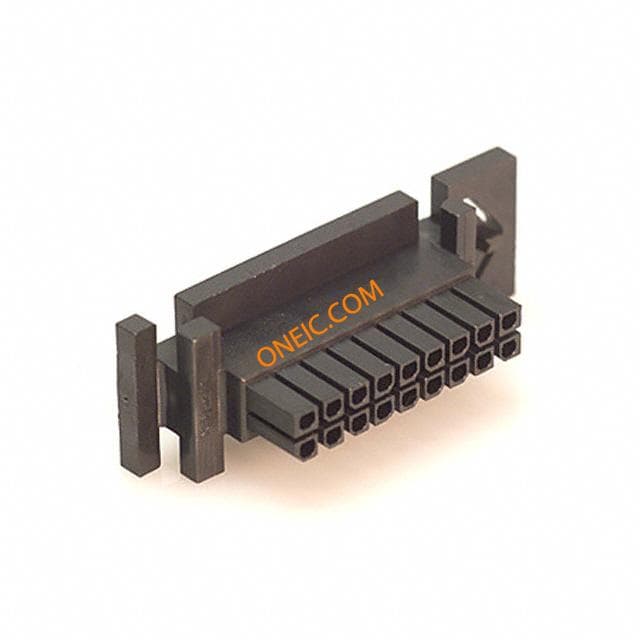

0441331800
