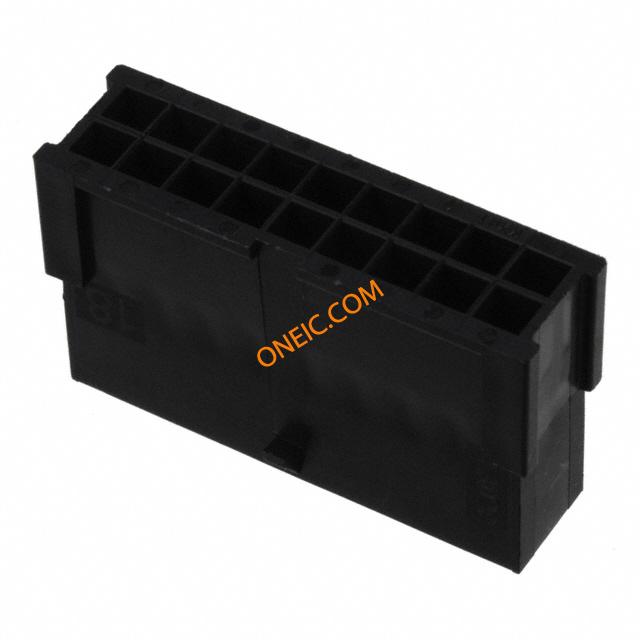

43020-1801
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 18POS 3MM VERT DUAL Headers & Wire Housings 18CKT PLUG HSG FREE HANGING DR 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, without Panel Mount Ears, 18 Circuits |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430201801 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 350 V | 最大额定电流 | 5 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Bulk | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 2 | 壳体材料 | Polyester |
| 触点数 | 18 | 接触件端接 | Crimp |
| 位数 | 18 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 系列 | 43020 | 产品子类型 | Wire Housings |
| 应用细节 | Power, Wire-to-Wire | ||
