点击放大查看

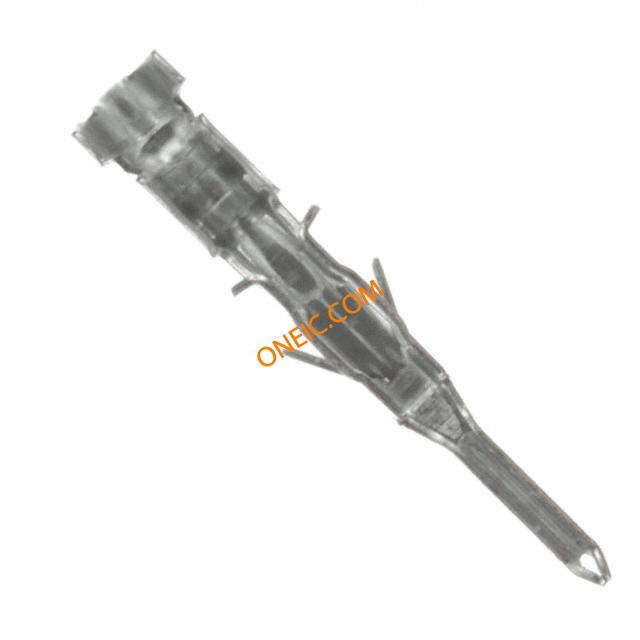

0430310004
| 制造商 | Molex, LLC |
| 描述 | . 0430310004 - Pin Contact Tin 26-30 AWG Crimp Power from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 22 Days | 其他名称 | WM2780CT |
| 子类别 | Connector Contact | 标准包装数量 | 12,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 5 |
机械参数
| 深度 | 2.1 | 包装方式 | Reel |
| 导线线规 | 26-30 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Recepta... | 接触镀层 | Tin |
| 触头材料 | Phosphor Bronze | 总长度 | 12.4 |
| 接触件端接 | Crimp | 接触镀层厚度 | 40µin (1.02µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 行业别名 | 43031-0004, 430310004 | 适用产品/相关产品 | 0430310010 |
环境参数
| 工作温度 | 105 | ||
