点击放大查看

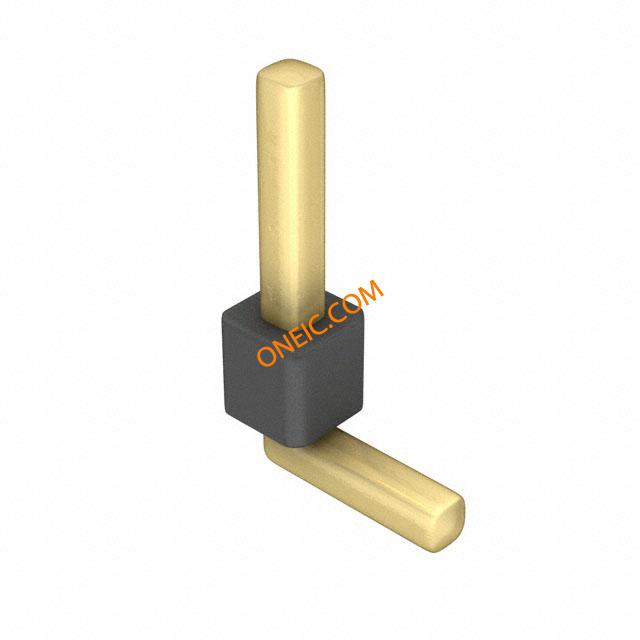

0022288090
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 9POS .100 R/A TIN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin |
| 排数 | 1 | 位数 | 9 |
| 接触长度 - 配合 | 0.244" (6.20mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 加载位置数 | All | ||
