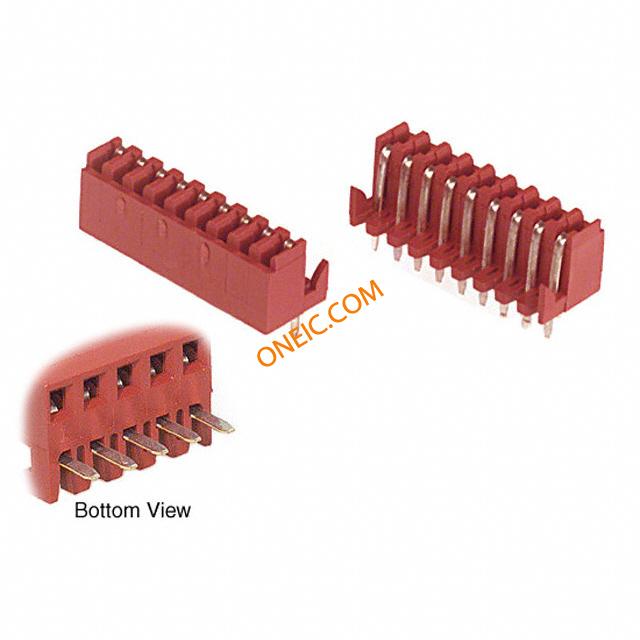

22-17-3092
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 9POS .100 VERT PCB Headers & Wire Housings 2.54MM BOARD CONN Bottom Entry 9 CKT Conn Socket Strip RCP 9 POS 2.54mm Solder ST Thru-Hole Tray |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022173092 A-4455-BH09D(208) |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 1008 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Bottom Entry | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 触点数 | 9 |
| 位数 | 9 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 系列 | 4455 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
