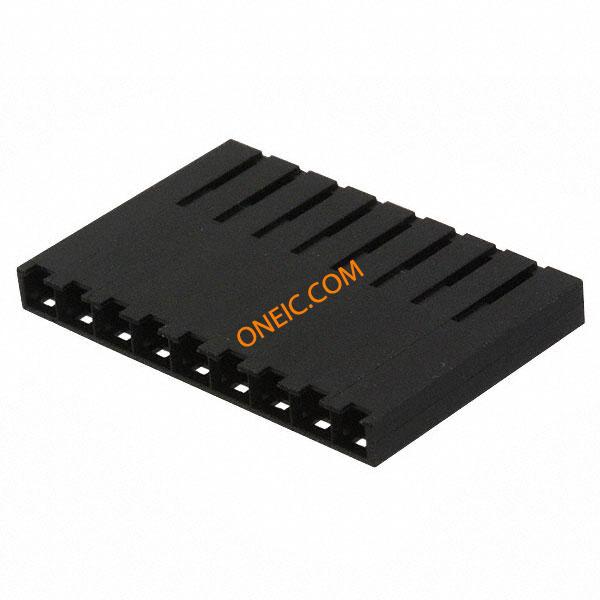

50-57-9009

制造商	Molex, LLC
描述	Conn Housing RCP 9 POS 2.54mm Crimp ST Bag CONN HOUSING 9POS .100 SINGLE 2.54mm,housing,Cgrid,SL,versionA,1row,9w Headers & Wire Housings HSG 9P SINGLE ROW NON-POLARIZED Conn Housing F 9 POS 2.54mm Crimp ST Cable Mount Bag HOUSING, 2.54MM, 9WAY Molex SL 系列 2.54mm 节距 9 路直母压接连接器外壳
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

商业参数

商标名	SL	零件号别名	0050579009
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	500

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

电气参数

量程（°/s）

:MOLEX - SL 70066 Series

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	2.51mm
长度	22.83mm	重量	0.005
包装方式	Bulk	端接方式	:Crimp
触头类型	Female Socket	引脚间距	:2.54mm
安装类型	Straight	连接器类型	Receptacle
接触镀层	Tin	安装样式	Wire
排数	1	触头材料	:-
壳体材料	PET	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	9
接触件端接	Crimp	位数	9

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	70066
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - Housings
适用产品/相关产品	SL Connector

文档与媒体

0050579009_CRIMP_HOUSINGS.pdf

50-57-9009

Single Row (SL) Prod Spec

1631515.pdf

相关型号

0022052091

molex

Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Bulk Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 9POS .100 R/A TIN

¥2.9367

详情

0016020082

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 15GOLD

¥0.4572

详情

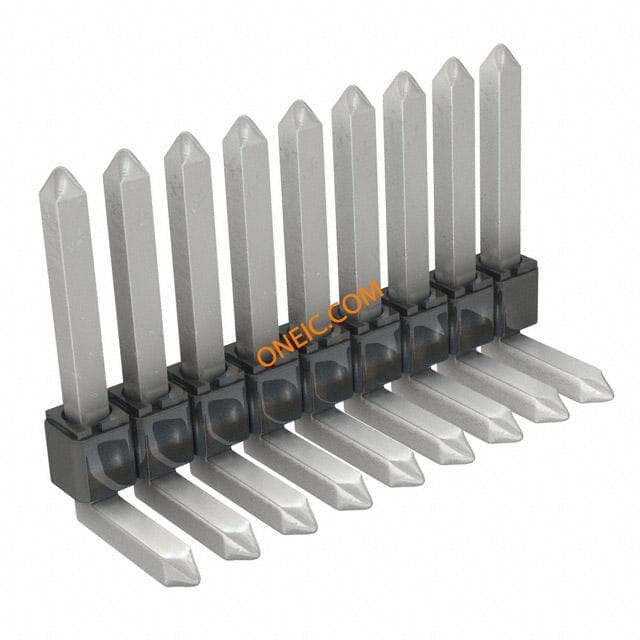

0022288091

molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 9POS .100 R/A TIN

¥1.1203

详情

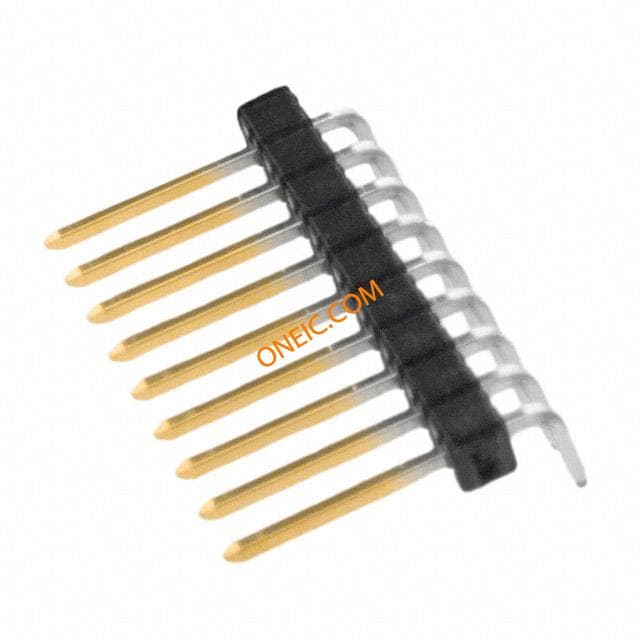

0022288093
