点击放大查看

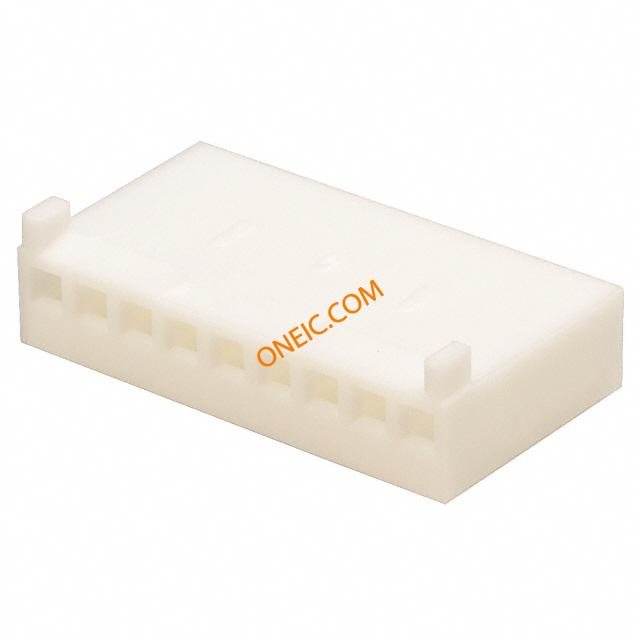

0022013097

制造商	Molex, LLC
描述	Conn Housing F 9 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 9POS .100 W/RAMP/RIB
分类	连接器解决方案矩形连接器电源混合矩形连接器

商业参数

交货时间	50 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

4/Contact

最小输入电压

250V

机械参数

颜色	White	深度	12.7
间距	0.100" (2.54mm)	高度	4.82
包装方式	Bag	触头类型	Non Gendered
外壳颜色	White	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	壳体材料	Nylon
总长度	23.42	触点数	9
接触件端接	Crimp	位数	9

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	F	产品特性	Polarizing Key
行业别名	22-01-3097, 22013097

文档与媒体

0022013097_CRIMP_HOUSINGS.pdf

22-01-3097

相关型号

0022052091

molex

Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Bulk Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 9POS .100 R/A TIN

¥2.9367

详情

0022232091

molex

Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 9POS .100 VERT TIN

¥1.8691

详情

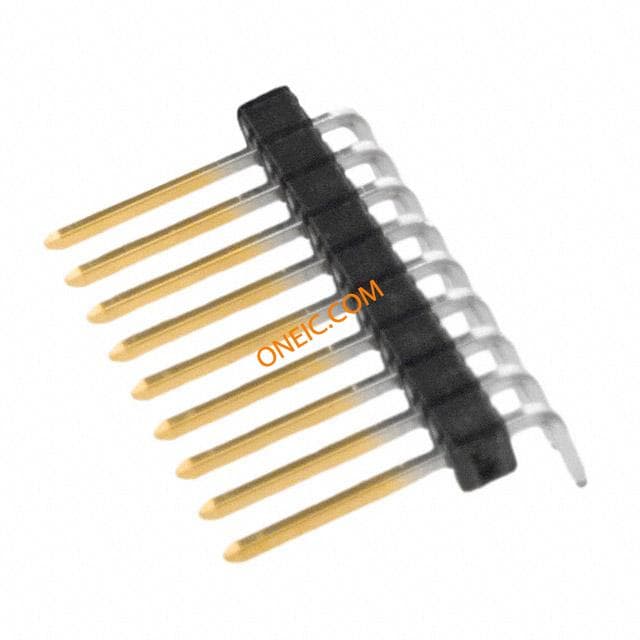

0022288093

molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 9POS .100 R/A GOLD

¥2.4854

详情

22-28-4095

molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 9POS .100 VERT GOLD

¥0.8827

详情

22-28-4092

molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 9POS .100 VERT TIN

¥1.2096

详情

22-28-4097

molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 9POS .100 VERT GOLD Headers & Wire Housings KK 100 Hdr Assy Bkwy Bkwy 09 Ckt 30 SGold

¥2.4408

详情

暂无图片

22-28-8095

molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 9POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 09 Ckt 30 SGold

¥2.5416

详情

22-28-4096

molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 9POS .100 VERT GOLD

¥1.5336

详情

0022284090

Molex

Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 9POS .100 VERT TIN

¥1.2960

详情

22-05-3091

Molex Connector Corporation

CONN HEADER 9POS .100 R/A TIN Headers & Wire Housings R/A PCB HDR 9P TIN FRICTION LOCK Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Bag KK 254 HDR, FRICKTION LOCK, RIGHT ANGLE, 9 CKT, TIN

¥1.6560

详情

22-11-2092

Molex Connector Corporation

CONN HEADER 9POS .100 VERT GOLD Molex 6373 Series 2.54mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings VERT PCB HDR 9P GOLD FRICTION LOCK Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Bag Molex KK 254 系列 2.54mm节距 9路 (1排) 直 PCB 针座, 焊接端接 , 通孔

¥3.4632

详情

22-10-2091

Molex Connector Corporation

CONN HEADER 9POS .100 VERT GOLD Headers & Wire Housings VERT PCB HDR 9P GOLD PLATING Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Bag

¥4.9176

详情

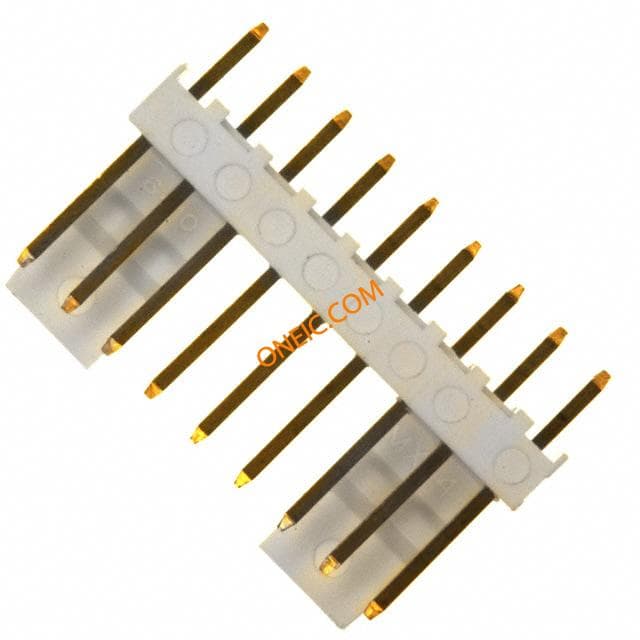

22-29-2091
