点击放大查看

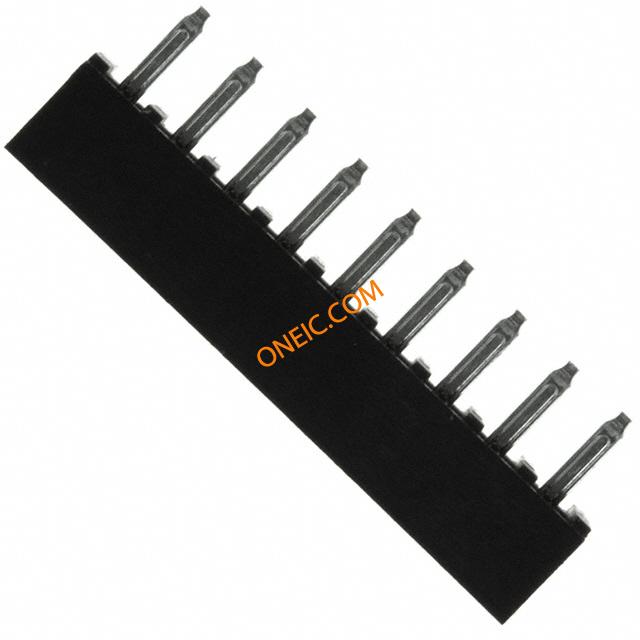

44812-0009

制造商	Molex, LLC
描述	CONN RECEPT 9POS .100" TIN PCB Molex 2.54mm 9 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 2.54 Recept. 9 CKT Top/bottom Entry Tin 2.54mm Pitch KK® PC Board Receptacle, Top and Bottom Entry, Low Profile, 5.00µm Tin (Sn), 9 Circuits Molex KK 254 系列 9路直 2.54mm节距通孔印刷电路板插座, 插座板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0448120009
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1040

合规参数

RoHS

Compliant

电气参数

额定电压

250 V

最大额定电流

机械参数

颜色	Black	间距	0.100" (2.54mm)
包装方式	Tray	方向	直
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle, Bottom or Top Entry
接触镀层	Tin	排数	1
触头材料	Brass Alloy	壳体材料	Thermoplastic
端接排数	焊接	端接样式	Through Hole
触点数	9	位数	9
接触镀层厚度	200µin (5.08µm)

产品信息

类型	Socket Strip	系列	44812
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - PCB
基础产品编号	44812	加载位置数	All

文档与媒体

PDF 文档

44812-0009
