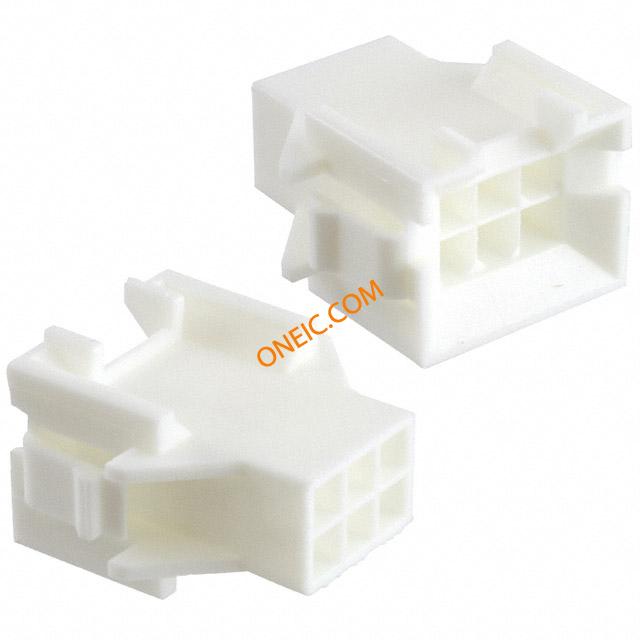

15-06-0066
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 6POS W/PANEL MNT EARS Headers & Wire Housings 4.20MM PLUG HSG 6P 2ROW W/PNL MT EARS 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 6 Circuits CONNECTOR, HOUSING, PLUG, 6POS Connector: wire-board; Series: Mini-Fit BMI; plug; male; PIN:6 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060066 42475-0621 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 最大额定电流 | 11 A, 8 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 方向 | straight | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 柱间距 | 4.2mm |
| 安装类型 | Panel Mount, Snap-In | 连接器类型 | Plug |
| 安装样式 | for cable | 排数 | 2 |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 第一连接器安装特征 | 2x3 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Plug Housing | 系列 | 42475 |
| 产品子类型 | Wire Housings | 适配器系列 | Mini-Fit BMI |
| 单元数量 | 100 | 应用细节 | Power, Wire-to-Wire, Wire-to-Board |
| 适用产品/相关产品 | :Mini-Fit Plus HCS 46012, Mini-Fit 5558 Series Male Crimp Terminals | ||
