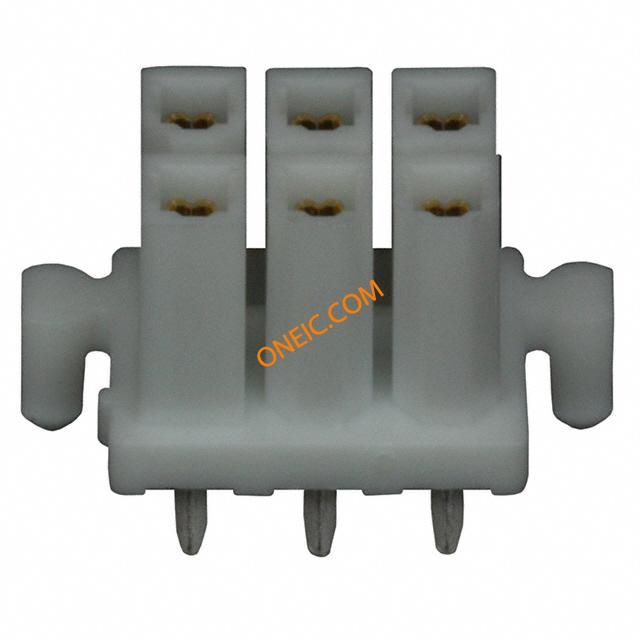

15-24-7063
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS 4.2MM STR GOLD Headers & Wire Housings VERT DUAL RCPT HDR 6 PCB snapin peg locks Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015247063 42385-06B2 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2400 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 6 |
| 位数 | 6 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 系列 | 42385 | 产品特性 | Board Lock |
| 产品子类型 | Receptacles / Sockets - PCB | 加载位置数 | All |
