点击放大查看

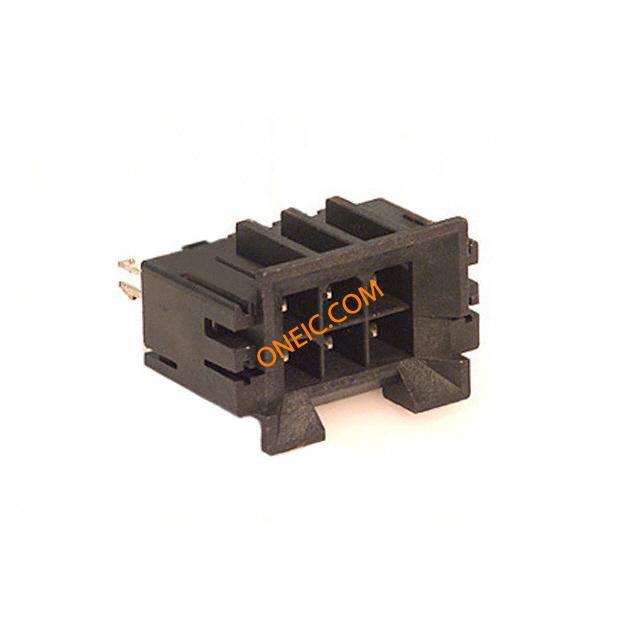

0440680002
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS STR W/CLIP TIN |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 8/Contact A |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 15 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 14.9 mm |
| 直径 | Not Required mm | 包装方式 | Tray |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 23.01 mm |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品特性 | Board Lock | 端口数 | 1 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
相关型号
0039012065
molex
Conn Housing F 6 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 6POS DUAL
0039012060
molex
Conn Housing RCP 6 POS 4.2mm Crimp ST Bag CONN RECEPT 6POS DUAL

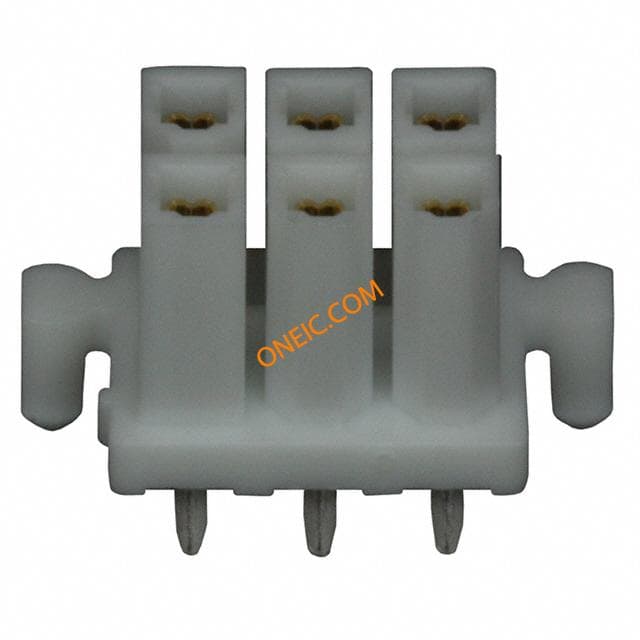

15-24-7063
Molex Connector Corporation
CONN HEADER 6POS 4.2MM STR GOLD Headers & Wire Housings VERT DUAL RCPT HDR 6 PCB snapin peg locks Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray

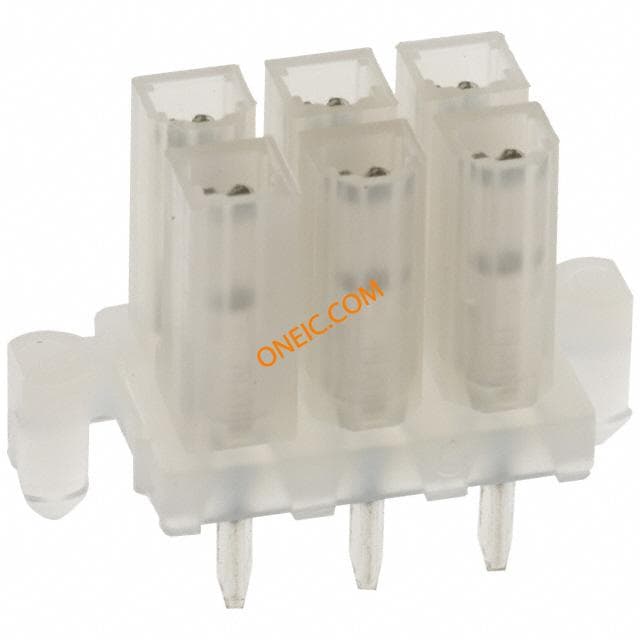

15-24-7060
Molex Connector Corporation
CONN HEADER 6POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 6P DUAL ROW Conn Wire to Board RCP 6 POS 4.2mm Solder ST Thru-Hole Tray Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray MINI-FIT BMI REC HDR ASSY V

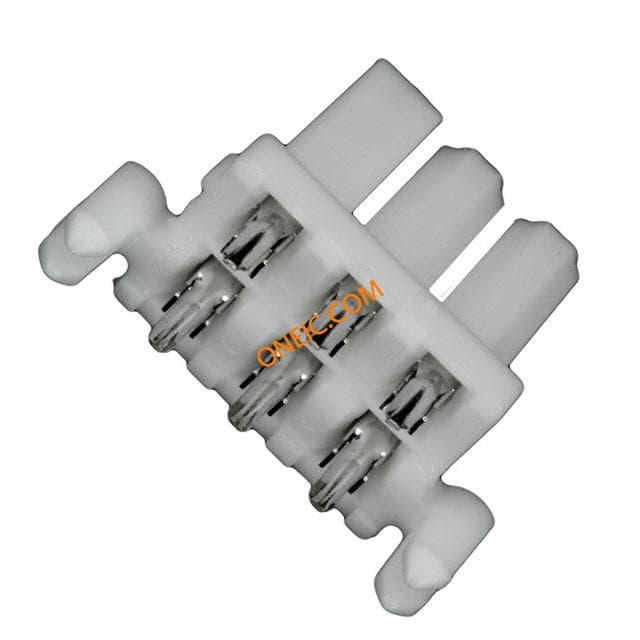

15-24-7061
