15-24-7060
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 6P DUAL ROW Conn Wire to Board RCP 6 POS 4.2mm Solder ST Thru-Hole Tray Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray MINI-FIT BMI REC HDR ASSY V |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015247060 42385-06A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 2400 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Receptacle Header | 系列 | 42385 |
| 产品特性 | Board Lock | 制造商全称 | Mini-Fit BMI |
| 产品子类型 | Receptacles / Sockets - PCB | 电路数 | 6 |
| 加载位置数 | All | ||
文档与媒体
相关型号
0438790034
molex
Conn Wire to Board HDR 6 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray
15-24-6066
Molex
Headers & Wire Housings VERTICAL HDR 6P w/drainholes CONN HEADER 6POS 4.2MM VERT TIN
76650-0158
molex
COMPONENT KITS, BOARD TO BOARD AND WIRE TO BOARD AND WIRE TO WIRE KIT 10,14,18,4,6,8POS 6A THROUGH HOLE MOUNTING ASSORTED VERTICAL, PLUGS,RECEPTACLE,RIGHT ANGLE HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT MINI-FIT BMI PLUG & RECEPT Board to Board & Mezzanine Connectors MINI-FIT BMI KIT COMPONENT KITS, BOARD TO BOARD AND WIRE TO BOARD AND WIRE TO WIRE KIT 10,14,18,4,6,8POS 6A THROUGH HOLE MOUNTING ASSORTED ... Kit Description:Blind Mate Vertical and Right Angle Header, Vertical Receptacle Header, Plug and ReceptacleKit Category:Wire to Wire and Wire to Board and Board to BoardSolution:Blind-MatePackaging:Tackle Box: 11" by 7.25"Num. Pieces:253 MINI-FIT BMI CONNECTOR KIT

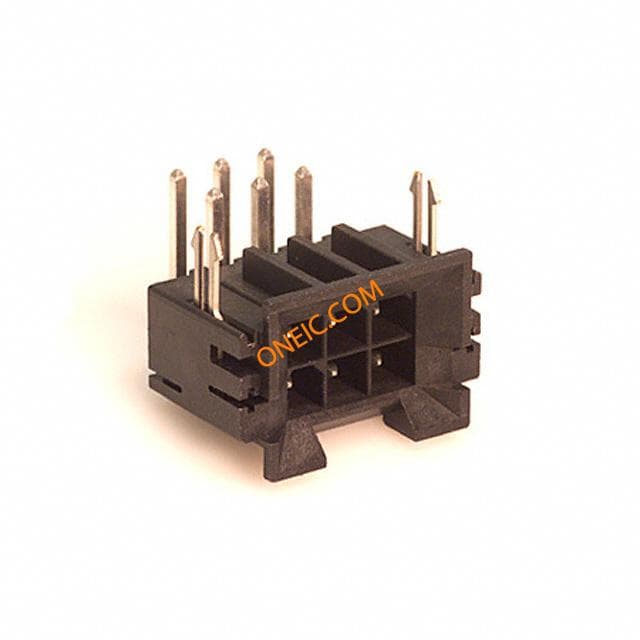

0438100002
Molex
Conn Power M 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS R/A W/CLIP TIN
0440680013
Molex
Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS STR W/CLIP GOLD

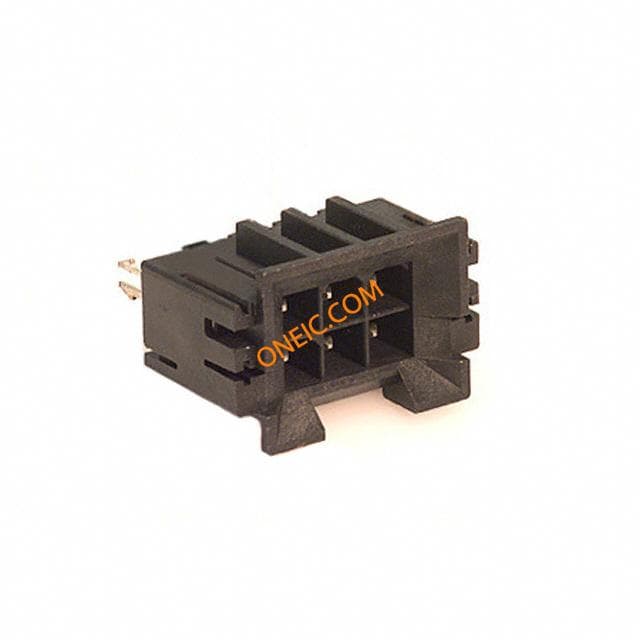

0440680002
Molex
Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS STR W/CLIP TIN
15-06-0065
Molex Connector Corporation
CONN PLUG 6POS W/PANEL MNT EARS 6w D/R BMI plug housing Headers & Wire Housings PLUG DUAL ROW 6POS w/panel mount ears PLUG & SOCKET CONNECTOR, PLUG 6POS 4.2MM MINIFIT BMI PLUG PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 6 路 直 公 压接连接器外壳
15-06-0066
Molex Connector Corporation
CONN PLUG 6POS W/PANEL MNT EARS Headers & Wire Housings 4.20MM PLUG HSG 6P 2ROW W/PNL MT EARS 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 6 Circuits CONNECTOR, HOUSING, PLUG, 6POS Connector: wire-board; Series: Mini-Fit BMI; plug; male; PIN:6

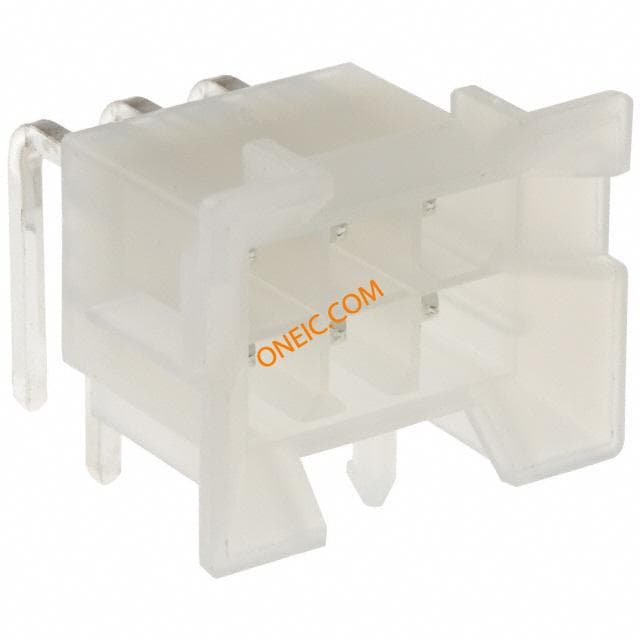

15-24-6060
Molex Connector Corporation
CONN HEADER 6POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray MINIFIT BMI RA HDR TIN V-2
15-24-9064
Molex Connector Corporation
CONN HEADER 6POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray

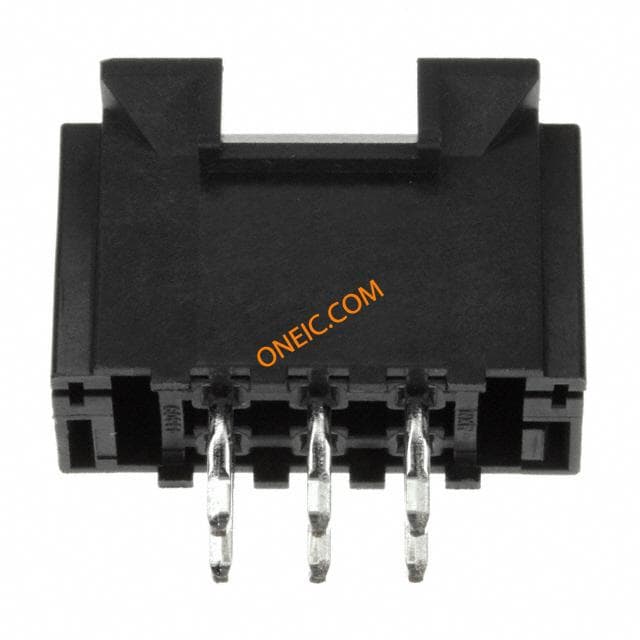

43879-0023
