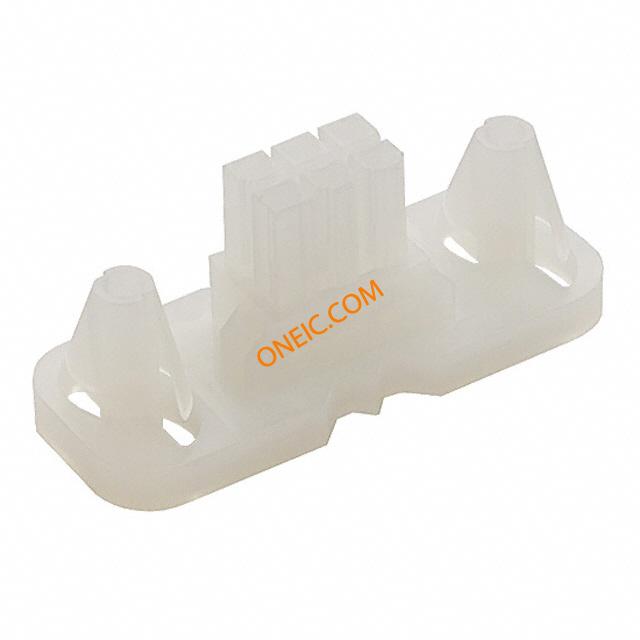

15-06-0060
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 6POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,6w Headers & Wire Housings RECPT DUAL ROW 6POS w/panel mount ears Conn Housing F 6 POS 4.2mm Crimp ST Panel Mount Bag MINIFIT BMI RCPT/PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 6 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060060 15-06-0060-PB 42474-0611 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 最大额定电流 | 12 A, 8 A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 17.3mm |
| 长度 | 44.4mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.165" (4.20mm) |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.165" (4.20mm) | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Receptacle Panel Mount |
| 连接器性别 | Female | 系列 | 42474 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Mini-Fit BMI |
| 产品子类型 | Receptacles / Sockets - Housings | 电路数 | 6 |
| 基础产品编号 | 42474 | 输出配置 | Panel Mount |
| 适用产品/相关产品 | Mini-Fit BMI Receptacle | ||
文档与媒体
相关型号
0039000186
molex
Contact F Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 16AWG GOLD Contact SKT Crimp ST Cable Mount Loose Piece
0438790034
molex
Conn Wire to Board HDR 6 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray
0039000183
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-28AWG 30GOLD
0442810002
molex

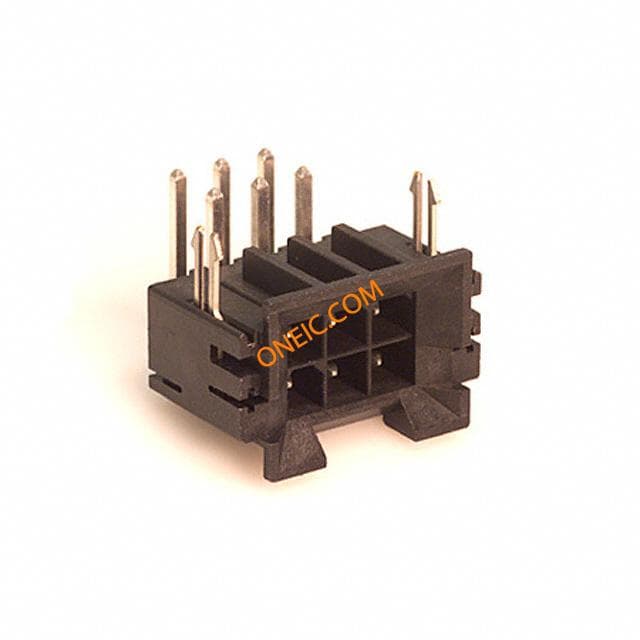

Conn Wire to Board PL 6 POS 4.2mm Solder ST Thru-Hole Bag Conn Power PL 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
0015249067
molex
Conn Wire to Board HDR 6 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray CONN HEADER R/A 6POS DUAL GOLD
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000180
molex
Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM
15-24-6066
Molex
Headers & Wire Housings VERTICAL HDR 6P w/drainholes CONN HEADER 6POS 4.2MM VERT TIN
0039000182
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece
0438100002
Molex
Conn Power M 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS R/A W/CLIP TIN
0440680013
Molex
Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS STR W/CLIP GOLD
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN
0039000155
Molex
Contact SKT Crimp ST Cable Mount
39-00-0154
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG 30GOLD CONTACT, CRIMP, SOCKET, 24-18AWG
0440680002
Molex

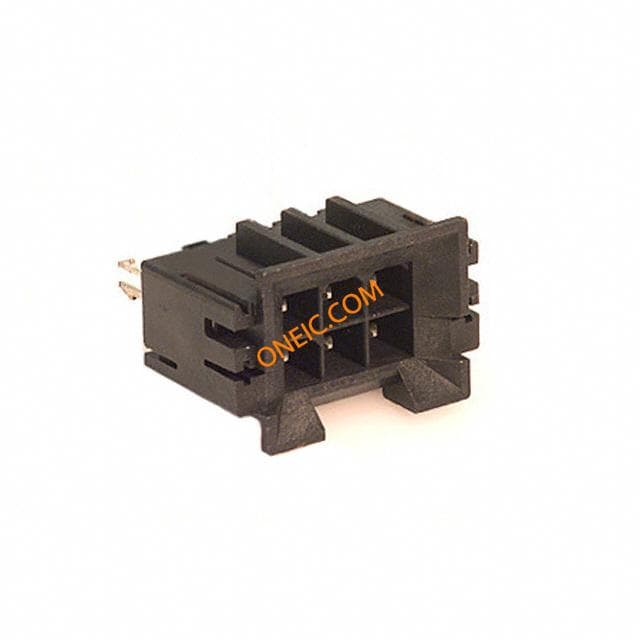

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS STR W/CLIP TIN
15-06-0065
Molex Connector Corporation
CONN PLUG 6POS W/PANEL MNT EARS 6w D/R BMI plug housing Headers & Wire Housings PLUG DUAL ROW 6POS w/panel mount ears PLUG & SOCKET CONNECTOR, PLUG 6POS 4.2MM MINIFIT BMI PLUG PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 6 路 直 公 压接连接器外壳
15-06-0066
Molex Connector Corporation
CONN PLUG 6POS W/PANEL MNT EARS Headers & Wire Housings 4.20MM PLUG HSG 6P 2ROW W/PNL MT EARS 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 6 Circuits CONNECTOR, HOUSING, PLUG, 6POS Connector: wire-board; Series: Mini-Fit BMI; plug; male; PIN:6
15-24-6060
Molex Connector Corporation

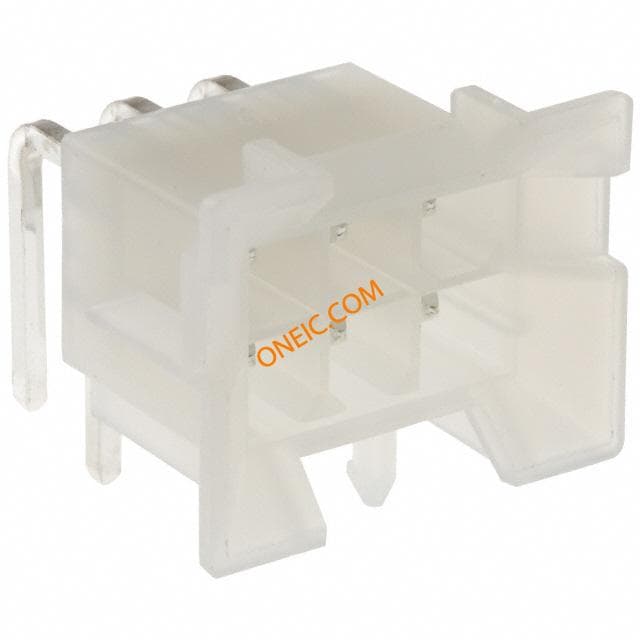

CONN HEADER 6POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray MINIFIT BMI RA HDR TIN V-2
15-24-9064
Molex Connector Corporation
CONN HEADER 6POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray
43879-0023
Molex Connector Corporation

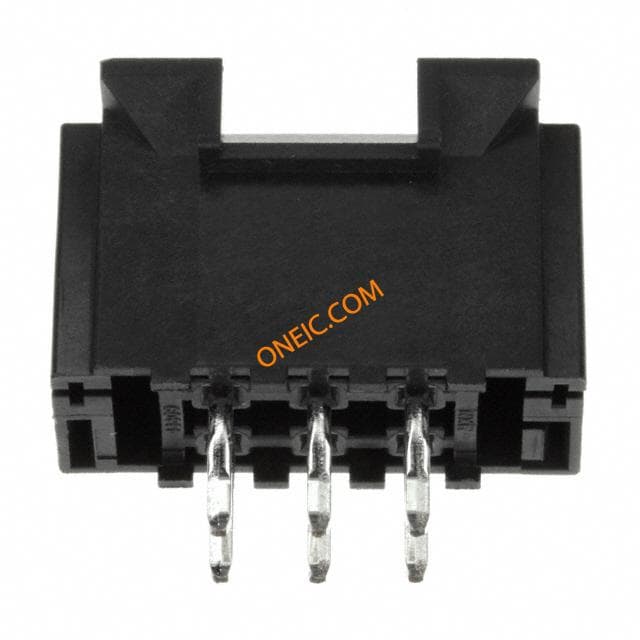

CONN HEADER 6POS 4.2MM DUAL TIN Headers & Wire Housings VERT MINIFIT CPI 6P dual row interface Conn Power HDR 6 POS 4.2mm Press Fit ST Thru-Hole 6 Terminal 1 Port Tray MINI-FIT CPI HDR FOR .094PCB 6CKT TIN MINI-FITCPIHDRFOR.094PCB6CKTTIN
