点击放大查看

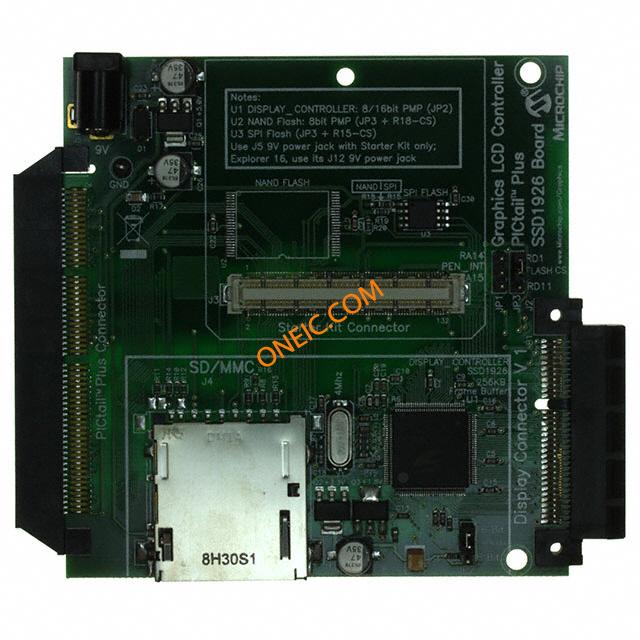

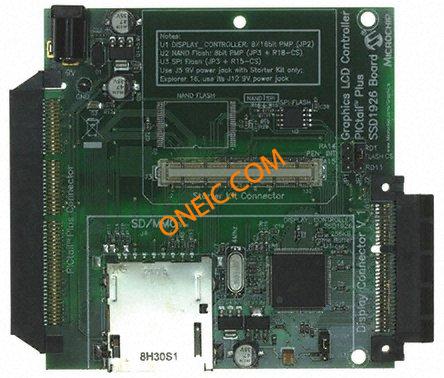

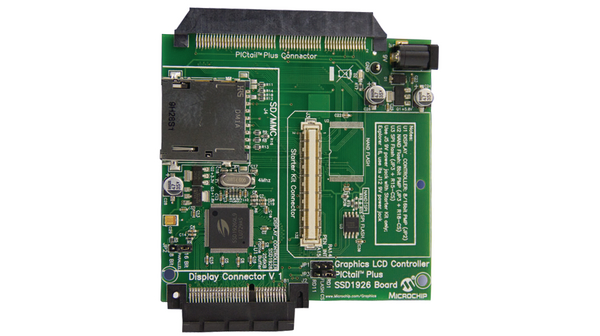

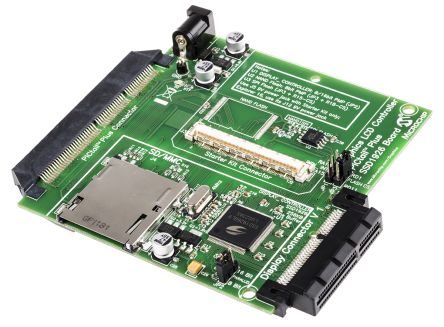

AC164127-5
| 制造商 | Microchip Technology Inc. |
| 描述 | Microcontrollers 16 Bit Picmcus And DSPICDSCS Daughter Cards & OEM Boards Graphics LCD Contlr SSD1926 Board Graphic PICtail Plus SSD1926 BOARD GRAPH LCD CNTLR PICTAIL AC164127-5, Module, LCD, PIC, Graphics LCD Controller PICtail Plus SSD1926 Board ADD-ON BRD, GRAPHICS CTLR, EXP16 + PIC32 LCDCONTROLLERPICTAIL Board with LCD controller; Interface: parallel 18-bit RGB Graphics LCD PICtail Plus SSD1926 Board -, AC164127-5, Microchip Microchip LCD 微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Expansion Boards |
| 单位包装 | 1 | 其他名称 | AC1641275 |
| 产品类别 | Daughter Cards & OEM Boards | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC | 接口 | parallel 18-bit RGB |
| 元件数量 | :- | ||
机械参数
| 重量 | 0.25 | 核心数/总线宽度 | 8 bit |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | Yes, MCU, 16/32-Bit | 产品特性 | :SD/MMC Card Socket, Connected to SSD1926 via 4-Wire Interface, PIC32 Starter Kit Connector |
| 匹配码 | AC164127-5 | 技术 | LCD |
| 套件内容 | Graphics LCD Controller PICtail Plus SSD1926 Board | 主要用途 | Displays, LCD Controller |
| 制造商全称 | :- | 卡标准 | Module |
| 附件类型 | board with LCD controller | 开发套件 | EVALBOARD |
| 单元数量 | 1 | 关联项目 | AC164127-4, AC164127-6, AC164139, DM320001, DM320003-2 |
| 标准交期 | 6 weeks | 工具类型/特性 | SSD1926 |
| 主要特性 | 16 MB Serial Flash | 使用的IC/零件 | SSD1926 |
| 芯片组制造商 | :Microchip | 次要特性 | SD/MMC Card Socket |
| 支持MCU系列 | :Graphics LCD Controllers | 适用产品/相关产品 | AC164127-4, DM240001, DM320001, DM320003 |
