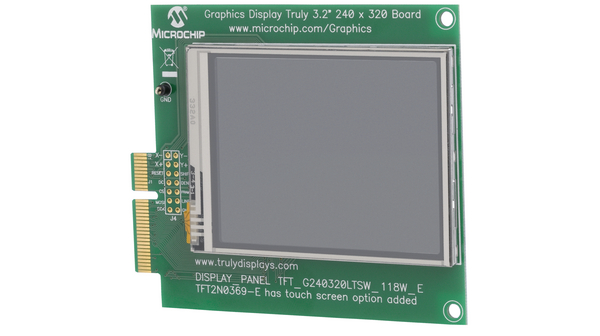

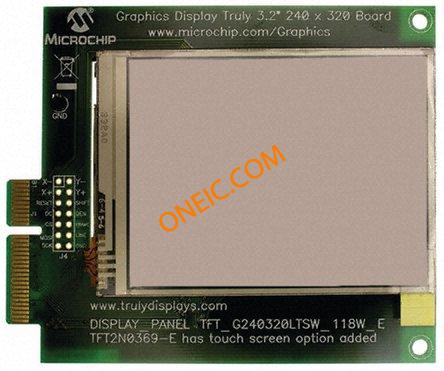

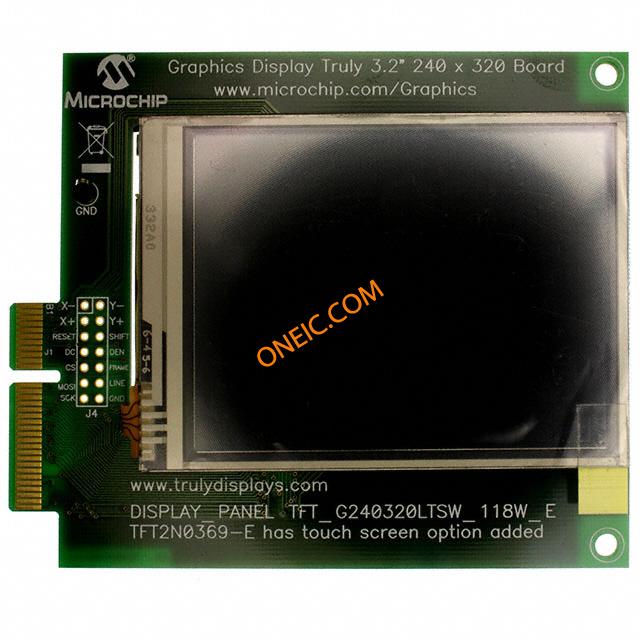

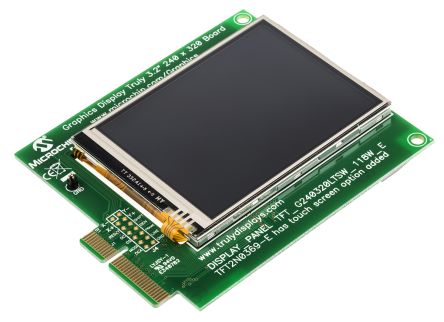

AC164127-4
| 制造商 | Microchip Technology Inc. |
| 描述 | Graphics Pictail Plus Daughter Board Daughter Cards & OEM Boards Graphics Disp Brd Truly 3.2 240x320 Graphic Display Truly 3.2" BOARD GRAPH DISPLAY 3.2 240X320 AC164127-4, Module, LCD, PIC, Graphics Display Board GRAPHIC DISPLAY, 320X240, TFT LCD, DEMO BOARD GRAPHIC DISPLAY, 320X240, DEMO BOARD TRULY3.2""QVGABOARD Expansion board with LCD display; 3,2" TFT 240x320 Display 3.2 inch 320 x 240 Board - 9 V, AC164127-4, Microchip Microchip LCD 处理器和微控制器开发套件 Graphic Display Truly 3.2 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 1 |
| 其他名称 | AC1641274 | 产品类别 | Daughter Cards & OEM Boards |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85439000 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC | 接口 | parallel 18-bit RGB |
| 元件数量 | :PIC24FJ256DA210 | ||
机械参数
| 重量 | 0.00001 | 连接器类型 | Microchip Display Connector V1 |
| 核心数/总线宽度 | 8 bit | ||
产品信息
| 类型 | Development Kit | 内容 | Board with LCD |
| 嵌入式 | Yes, MCU, 16/32-Bit | 产品特性 | :3.2" QVGA (240x320) TFT LCD with 18-Bit Parallel RGB Interface, Resistive 4-Wire Touch Screen |
| 套件类型 | :- | 匹配码 | AC164127-4 |
| 技术 | LCD | 套件内容 | Graphics Display Board |
| 主要用途 | Displays, LCD Display | 制造商全称 | :PIC24FJxxDAxxx |
| 卡标准 | Module | 显示样式 | 3,2" TFT 240x320 |
| 附件类型 | expansion board with LCD display | 开发套件 | EVALBOARD |
| 单元数量 | 1 | 关联项目 | AC164127-5, AC164127-7, AC164144, DM240312 |
| 标准交期 | 6 weeks | 主要特性 | 3.2" QVGA, Touch Screen |
| 芯片组制造商 | :Microchip | 次要特性 | Parallel Interface |
| 应用细节 | :- | 可编程特性 | resistive 4-wire touch panel |
| 支持MCU系列 | :PIC24FJ256DA210 | 适用产品/相关产品 | prototype board |
