点击放大查看

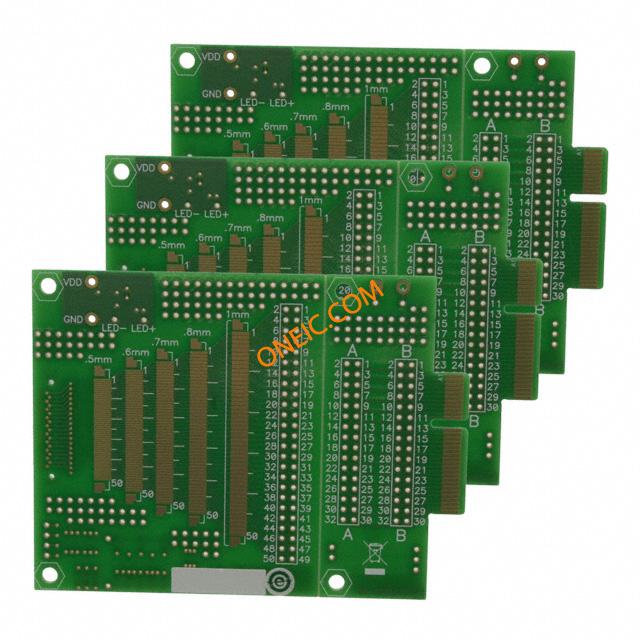

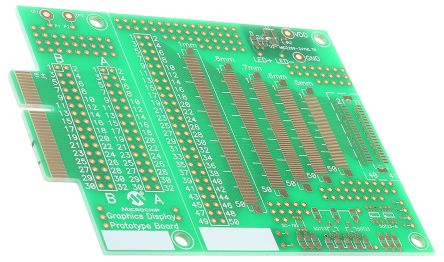

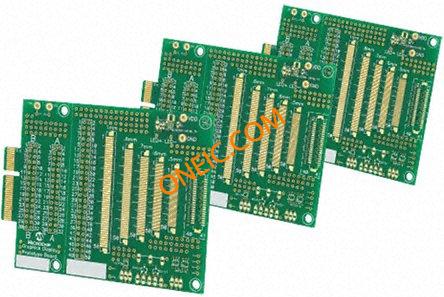

AC164139
| 制造商 | Microchip Technology Inc. |
| 描述 | Graphics Display Prototype Board PCBs & Breadboards Graphics Display Prototype Board Graphics Display Prototype Boar BOARD GRASPHICS DISPLAY AC164139, Development Kit, Graphics, Graphics Display Prototype Board BOARD, PROTOTYPE, GFX DISPLAY GraphicsDisplayPrototypeBoard Breadboard prototype expansion board Microchip 图像 开发套件 |
| 分类 |
商业参数
| 最小起订量 | 7 | 产品 | Prototyping Boards |
| 单位包装 | 1 | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85319020 | 无铅定义 | RoHS-conform |
机械参数
| 重量 | 0.1 | 连接器类型 | Microchip Display Connector V1 |
产品信息
| 类型 | Development Kit | 内容 | 3 Bare Boards |
| 嵌入式 | No | 匹配码 | PROTOTYPE BOARD |
| 技术 | Graphics | 套件内容 | Graphics Display Prototype Board |
| 主要用途 | LCD Development | 卡标准 | Development Kit |
| 附件类型 | breadboard prototype expansion board | 开发套件 | EVALBOARD |
| 单元数量 | 1 | 关联项目 | AC164127-5, DM240312 |
| 标准交期 | 6 weeks | 使用的IC/零件 | PICtail™ Plus Board |
| 适用产品/相关产品 | 2 boards in the set | ||
