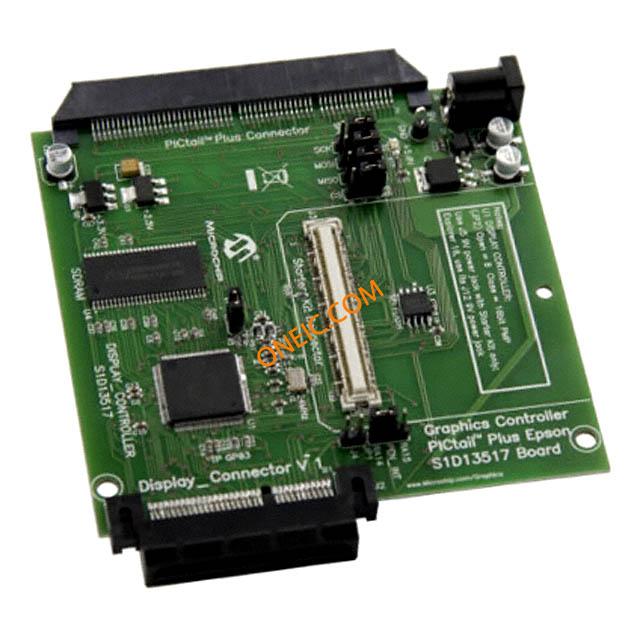

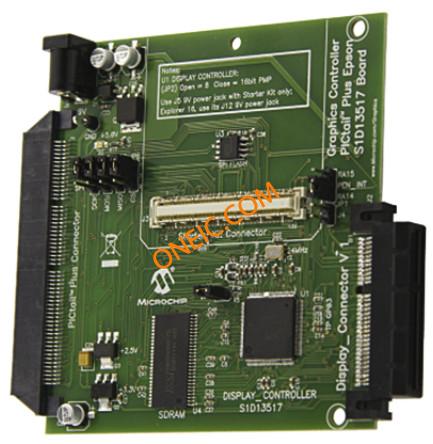

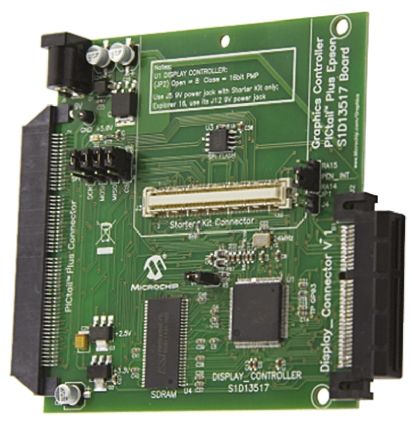

AC164127-7
| 制造商 | Microchip Technology Inc. |
| 描述 | Graphics Controller Pictail Plus Epson S1D13517 Board Daughter Cards & OEM Boards Graphic Ctrl PICtail +Epson S1D13517 Brd Graphics PICtail Plus Epson BOARD DISPLAY CTLR PLUS S1D13517 AC164127-7, Development Kit, PICtail, PIC S1D13517, GRAPHIC CNTLR, DEMO BOARD Board with LCD controller; In the set: prototype board Microchip PICtail 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Daughter Boards |
| 单位包装 | 1 | 其他名称 | AC1641277 |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC | 接口 | TFT |
机械参数
| 重量 | 0.25 | 包装数量 | 1 |
| 核心数/总线宽度 | 16-bit, 32-bit | ||
产品信息
| SPG | 1 | 类型 | Development Kit |
| 内容 | Board | 产品特性 | :Display Connector for Interfacing with Different Display Boards, PIC32 Starter Kit Connector |
| 功能 | Graphics controller PICtail plus Epson S1D13517 Board allows evaluating Microchip Technology's solution and graphics library for 16-and 32 bit microcontrollers | 匹配码 | AC164127-7 |
| 技术 | PICtail | 套件内容 | Display Connector, Graphics Display Controller, PIC32 Starter Kit Connector, PICtail Plus Interface, TFT Interface |
| 主要用途 | Displays, LCD Controller | 卡标准 | Development Kit |
| 附件类型 | :Graphics Controller | 开发套件 | ACCESSORY |
| 单元数量 | 1 | 关联项目 | AC164127-4, AC164127-6, AC164127-8, AC164127-9, AC164139, DM320001, DM320003-2, DM320004 |
| 标准交期 | 6 weeks | 工具类型/特性 | S1D13517 |
| 主要特性 | For Use With PIC32 Starter KIT and Explorer 16 Dev Boards | 使用的IC/零件 | S1D13517 |
| 适用产品/相关产品 | DM240001, DM320001, DM320003 | ||
