芯天下
19200160251

点击放大查看

19200160251

制造商
HARTING Technology Group
描述

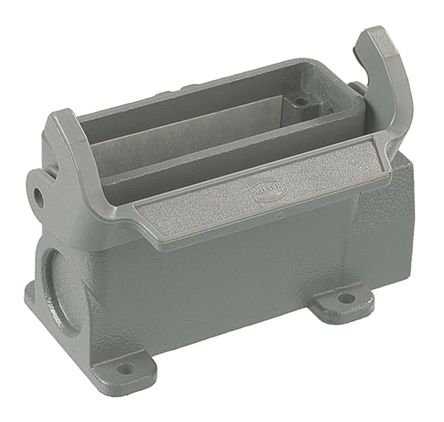

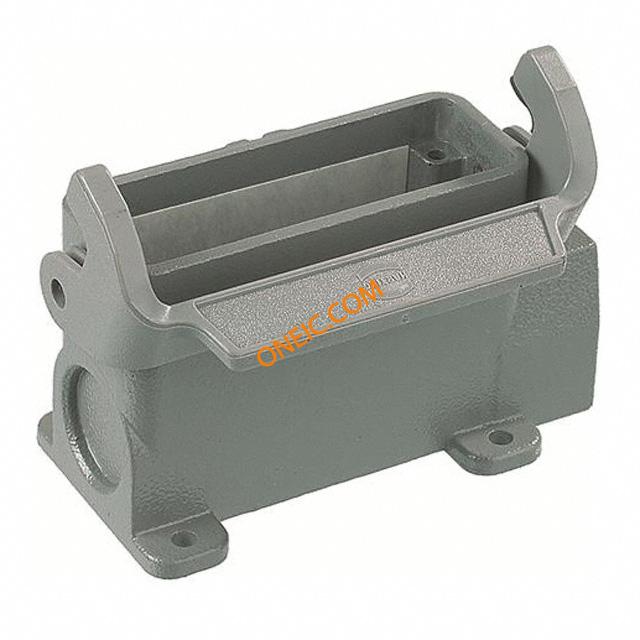

HAN A BASE HC 1 LVR 1 M25 Heavy Duty Power Connectors SURFACE MOUNTING HSG 1 SIDE ENTRY Enclosure: for Han connectors; Han; size 16A; with lock; M25; IP65 Han A standard housing, surface mounting size 16 A, HC 1 side entry M25 Harting Han A 系列 电源连接器
分类
连接器解决方案重载连接器重载圆形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称1195-3077零件号别名016 019 019-20-016-0251 0251 20
产品类别Heavy Duty Power Connectors标准包装数量1
工厂包装数量1

合规参数

RoHSRoHS Compliant

机械参数

尺寸16A重量0.19 kg
包装方式Bulk螺纹尺寸M25
重量（g）188.00000外壳颜色Gray
衬套螺纹M25连接器类型Base - Box Mount
外壳涂层Powder Coated安装样式flange (4 holes), for panel mounting, for cable
封装形式size 16A锁定特性with lock
壳体材料Aluminum, Die Cast尺寸/外形3.740" L x 1.969" W x 2.244" H (95.00mm x 50.00mm x 57.00mm)
端接样式Screw供应商器件封装for Han connectors
外壳与棱镜材料aluminium alloy

产品信息

类型CONNECTORS样式Side Entry
系列Han A产品子类型Receptacle Housings
锁定位置Side Clip on Base Bottom附件类型Housings
适配器系列Han单元数量1
基础产品编号1920000加载位置数1

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
