点击放大查看

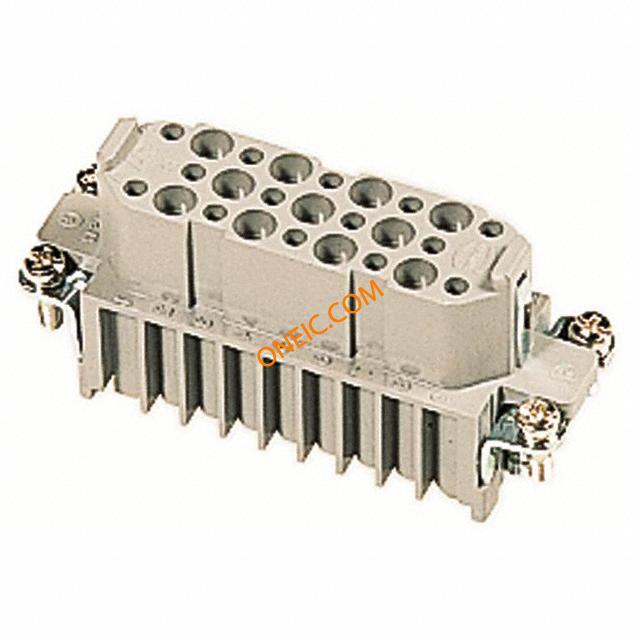

09210253101

制造商	HARTING Technology Group
描述	HAN D 25 POS. F INSERT CRIMP Heavy Duty Power Connectors HAN D 25P F CRIMP ORDER CONTACTS SEP Han(R) D 25P+E socket insert, 250Vac PowerConnectorInsert;Female;25 Connector: HAN; female; Han D; PIN:25; 25+PE; size 16A; 250V Han D Female Insert: Han D 25 Position F Insert Crimp Harting Han D 系列 3行 26针插座电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	025 09 09-21-025-3101 21 3101	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

材料阻燃等级

UL94 HB

电气参数

测试电压	4kV	额定电压	600V
最大额定电流	10A	连接器类型 - 电压输入	for HAN D terminals

机械参数

尺寸	16A	颜色	Gray
重量	0.03 kg	包装方式	Bulk
方向	直	重量（g）	38.00000
触头类型	Han® D	连接器类型	Insert without Contacts
排数	3	封装形式	size 16A
插入力	Female	壳体材料	Polyamide (PA), Nylon
包装数量	2	尺寸/外形	16A
端接样式	Crimp	触点数	26
位数	25+Ground	线规或范围 - AWG	26-14
第一连接器安装特征	25+PE

产品信息

SPG	2	类型	CONNECTORS
连接器性别	Female	系列	HAN-D, HAN-D AV
CAD图纸	3D CAD Model	产品子类型	Inserts
适配器系列	Han D	单元数量	1

环境参数

工作温度

-40°C ~ 125°C
