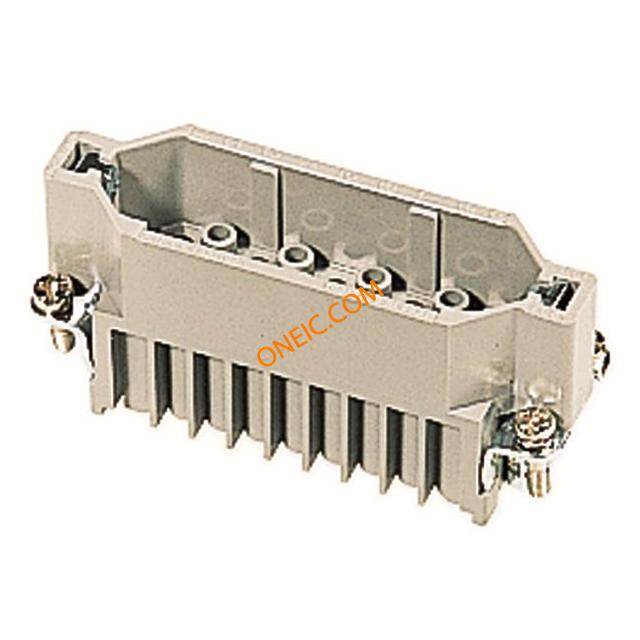

09210253001
| 制造商 | |
| 描述 | Connector Accessories Male Insert 25 POS Heavy Duty Power Connectors HAN D 25P M CRIMP ORDER CONTACTS SEP HAN D 25 POS. M INSERT CRIMP Han D 25 Male 2A,600V Insert;250V;10A;Male;25;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:25; 25+PE; size 16A; w/o terminals Han D Male Insert: Han D 25 Position M Insert Crimp Harting Han D 系列 25P+E 3 行 25 路 公插 触点插件 , M3 x 10螺纹, 额定电流 10A/ 250 V, 适用于大负荷电源连接器 |
| 分类 |
商业参数
| 零件号别名 | 025 09 09-21-025-3001 21 3001 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 HB | ||
电气参数
| 测试电压 | 4kV | 额定电压 | 600V |
| 最大额定电流 | 10A | 连接器类型 - 电压输入 | for HAN D terminals |
机械参数
| 尺寸 | 16A | 颜色 | Gray |
| 深度 | 33.8 | 高度 | 22.8 |
| 重量 | 0.03 kg | 包装方式 | Bulk |
| 螺纹尺寸 | M3 x 10 | 重量（g） | 34.00000 |
| 触头类型 | Han® D | 连接器类型 | Insert without Contacts |
| 排数 | 3 | 封装形式 | size 16A |
| 插入力 | Male | 壳体材料 | Polyamide (PA), Nylon |
| 总长度 | 73 | 包装数量 | 2 |
| 尺寸/外形 | 16A | 端接样式 | Crimp |
| 触点数 | 25 | 位数 | 25+Ground |
| 线规或范围 - AWG | 26-14 | 第一连接器安装特征 | 25+PE |
产品信息
| SPG | 2 | 类型 | Male Insert |
| 连接器性别 | Male | 系列 | Han D |
| 极性 | 25P+E | CAD图纸 | 3D CAD Model |
| 产品子类型 | Inserts | 附件类型 | 插片 |
| 适配器系列 | Han D | 单元数量 | 1 |
| 适用产品/相关产品 | 大负荷电源连接器 | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
