09200160321

制造商	HARTING Technology Group
描述	Connector Accessories 20 POS Housing Metal Heavy Duty Power Connectors HAN 16A BULKHEAD MT THERMOPLASTIC COVER HAN A BASE PANEL 1 LEVER LOCK Low type panel mount housing w/cover,16A HANABASEPANEL1LEVERLOCKABLETHERMO Enclosure: for Han connectors; Han; flange (4 holes), on panel Han A Housings: Han A Base Panel 1 Lever Lockable thermo Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	016 0321 09 09-20-016-0321 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

16 A

连接器类型 - 电压输入

with cover

机械参数

尺寸	16A	重量	0.09 kg
包装方式	Bulk	重量（g）	92.00000
外壳颜色	Gray	安装类型	flange (4 holes), on panel
连接器类型	Base - Panel Mount with Cover	外壳涂层	Powder Coated
封装形式	size 16A	插入力	Female
锁定特性	with lock	壳体材料	Aluminum, Die Cast
总长度	96	尺寸/外形	3.780" L x 1.140" W x 1.024" H (96.00mm x 29.00mm x 26.00mm)
端接样式	Cable	触点数	20
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

类型	Housing	样式	Bottom Entry
系列	Han A	CAD图纸	3D CAD Model
产品子类型	Housings	锁定位置	Side Clip on Base Bottom
适配器系列	Han	单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09200165425

Harting Technology Group

None Heavy Duty Power Connectors PROTECTION COVER HAN 16A 1 LVR LCKING HAN A PROTECT COVER DIE CAST HanAProtectCoverDieCastforBase Protection cover; Han; size 16A; for latch; metal Han A Accessories: Han A Protect Cover Die Cast for Base

¥196.3024

详情

09200162612

Harting Technology Group

Conn Housing M 17 POS Crimp ST Heavy Duty Power Connectors HAN A 16P M SCREW SCREW TERMINATION HAN A 16POS. M INSERT SCREW Han A 16 2 Male Straight, Panel Mount 16A,600V Insert;250V;16A;Male;16;RoHSCompliant;HanASeries;16AProductSize Connector: HAN; male; Han A; PIN:16; 16+PE; size 16A; 16A; 250V; 1mΩ Han A Male Insert-Screw: Han A 16 Position M Insert Screw Harting Han A 系列 2行 16针 16P+E极插头电源连接器插件 , 面板安装

¥73.5000

详情

09200162812

Harting Technology Group

Conn Housing F 17 POS Crimp ST Heavy Duty Power Connectors HAN A 16P F SCREW SCREW TERMINATION HAN A 16 POS. F INSERT SCREW Han A 16 2 Female Straight, Panel Mount 16A,600V PowerConnectorInsert;Female;16 Connector: HAN; female; Han A; PIN:16; 16+PE; size 16A; 16A; 250V Han A Female Insert-Screw: Han A 16 Position F Insert Screw Harting Han A 系列 2行 16针 16P+E极插座电源连接器插件 , 面板安装

¥142.0520

详情

09700202817

Harting Technology Group

Conn Rectangular F 20 POS Crimp ST Panel Mount Heavy Duty Power Connectors FEMALE INSERT HAN 16A 20 POLE PCAF 20 POS. F INSERT SCREW HAN FEMALE INSERT, 20WAY, SCREW INSERT FEMALE 20POS SCREW Staf20Pos.FInsertScrew Connector: rectangular; male; Han Staf; PIN:20; size 16A; 10A; 50V Staf Insert F: Staf 20 Position F Insert Screw

¥190.2600

详情

09200163111

Harting Technology Group

Conn Housing F 16 POS Crimp ST Panel Mount Heavy Duty Power Connectors FEMALE INSERT HAN 32A CRIMP TERM HAN A 16 POS. F INSERT CRIMP INSERT FEMALE 16POS+1GND CRIMP HanA,16Position,Female,Insert,Crimp Harting Han-A 系列 2 行 16 路母座插片 , 额定电流 16A/ 250 V

¥101.2900

详情

09200163101

Harting Technology Group

Connector Accessories Female Insert Heavy Duty Power Connectors FEMALE INSERT HAN 16A CRIMP TERM HAN A 16 POS. F INSERT CRIMP HANA16POS.FINSERTCRIMP Connector: HAN; female; PIN:16; 16+PE; size 16A; 250V Han A Female Insert-Crimp: Han A 16 Position F Insert Crimp Harting Han-A 系列 2 行 16 路母座插片 , 额定电流 16A/ 250 V

¥172.2400

详情

09210253001

Harting Technology Group

Connector Accessories Male Insert 25 POS Heavy Duty Power Connectors HAN D 25P M CRIMP ORDER CONTACTS SEP HAN D 25 POS. M INSERT CRIMP Han D 25 Male 2A,600V Insert;250V;10A;Male;25;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:25; 25+PE; size 16A; w/o terminals Han D Male Insert: Han D 25 Position M Insert Crimp Harting Han D 系列 25P+E 3 行 25 路公插触点插件 , M3 x 10螺纹, 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥81.5400

详情

09200163001

Harting Technology Group

Conn Housing M 17 POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 16A CRIMP TERM HAN A 16 POS. M INSERT CRIMP HanA16Pos.MInsertCrimp Connector: HAN; male; PIN:16; 16+PE; size 16A; 250V Han A Male Insert-Crimp: Han A 16 Position M Insert Crimp Harting Han-A 系列 2 行 16 路公插插片 , 额定电流 16A/ 250 V

¥214.3505

详情

09700202622

Harting Technology Group

STAF 20-STI-S/MALE INSERT (F) Heavy Duty Power Connectors MALE INSERT HAN 16A 20 POLE PCAF 20 POS. M INSERT SCREW RECTANGULAR HAN INSERT, PLUG 20WAY SCREW INSERT MALE 20POS SCREW Connector: rectangular; female; Han Staf; PIN:20; size 16A; 10A Staf Insert M: Staf 20 Position M Insert Screw

¥163.0800

详情

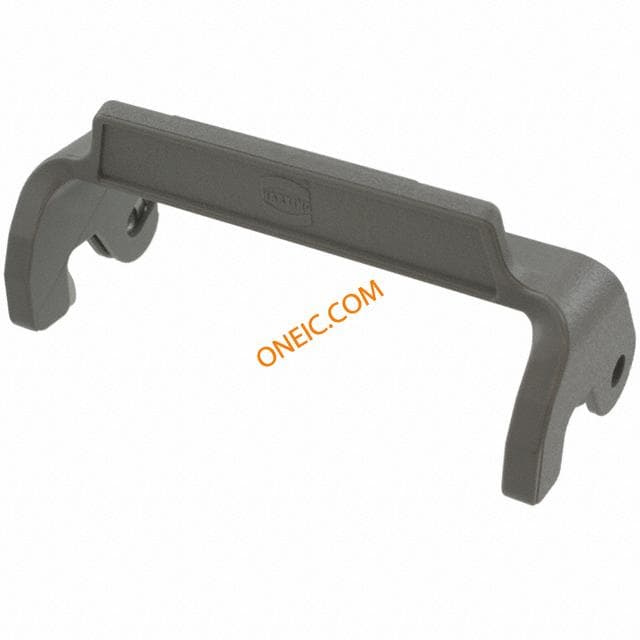

09000005225
