点击放大查看

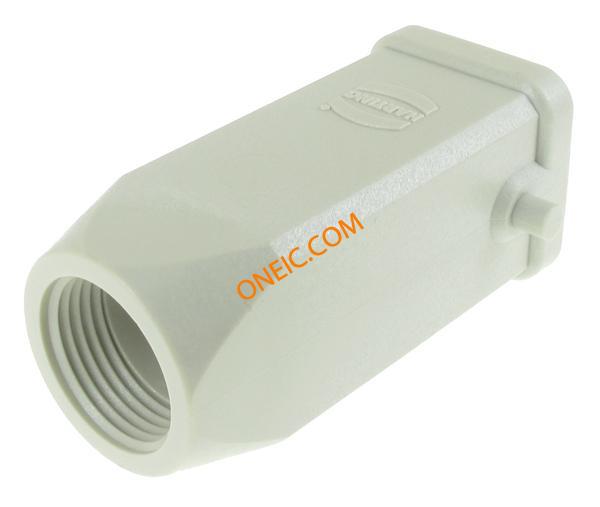

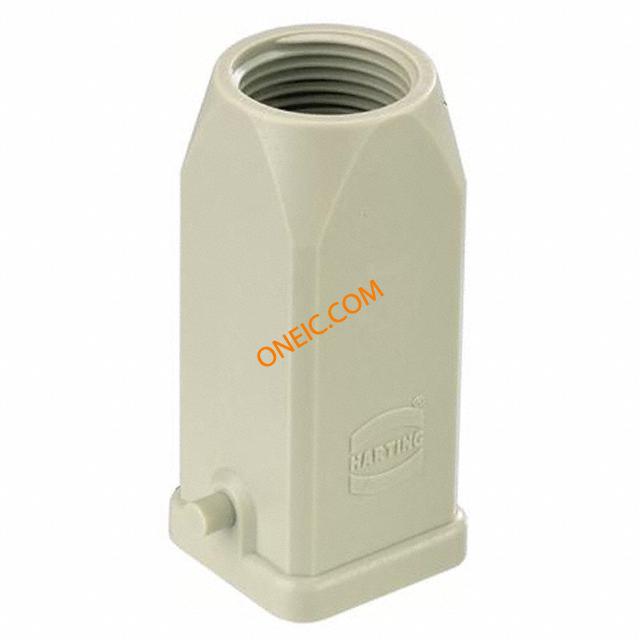

09200030420

制造商	HARTING Technology Group
描述	Connector Accessories Hood Gray Heavy Duty Power Connectors HAN 3A PG11 TOP ENTR GREY PLASTIC HAN A HOOD TOP 2 PEGS PG 11 GREY Han top entry plastic hood,PG11 size 3A Hood;Plastic;1Peg;for1LeverLock;35mm;60mm;Han3;Pg11;Gray Enclosure: for Han connectors; Han; size 3A; for cable; for latch Han A Hoods: Han A Hood Top Entry 2 Pegs PG 11 Grey Harting Han A 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0420 09 09-20-003-0420 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	深度	26.5
高度	60	重量	0.01 kg
包装方式	Bulk	壳体颜色	grey
方向	straight	螺纹尺寸	PG11
重量（g）	12.00000	外壳颜色	Gray
衬套螺纹	PG11	连接器类型	Hood
安装样式	for cable	封装形式	size 3A
插入力	Female	锁定特性	for latch
壳体材料	Thermoplastic	总长度	35
包装数量	10	尺寸/外形	1.043" L x 1.043" W x 2.362" H (26.50mm x 26.50mm x 60.00mm)
端接样式	Cable	触点数	12
供应商器件封装	for Han connectors	外壳与棱镜材料	polycarbonate

产品信息

SPG	10	类型	Hood
样式	Top Entry	系列	Han Q
产品子类型	Hoods	锁定位置	Central Locking Clip on Base Bottom
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C

相关型号

09200042711

Harting Technology Group

Conn Rectangular F 4Power/1Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN A 4P FEMALE SCRW SCREW TERMINATION HAN A 04 POS. F INSERT SCREW Insert; 230/400 V; 10 A; Female; 4; RoHS Compliant; Han A Series Han10B-g Connector: HAN; female; Han A; PIN:5; 4+PE; size 3A; screw terminal Han A Female Insert-Screw: Han A 04 Position F Insert Screw

¥65.8240

详情

09210073131

Harting Technology Group

Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN D 7P FEMALE CRMP ORDER CONTACTS SEP HAN D 7 POS. F INSERT CRIMP Han(R) D 7P+E socket insert, 250Vac PowerConnectorInsert;Female;7 Connector: HAN; female; Han D; PIN:8; 7+PE; size 3A; w/o terminals Han D Female Insert: Han D 7 Position F Insert Crimp Harting Han D 系列 3行 8针插座电源连接器

¥26.0440

详情

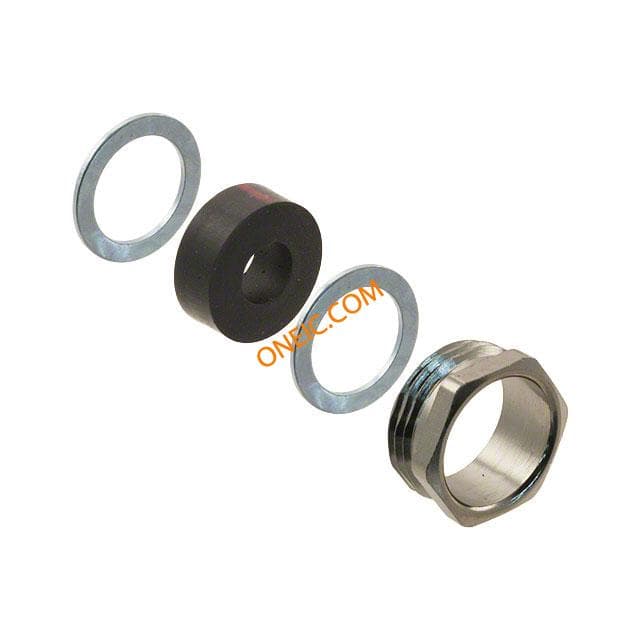

09000005013
