点击放大查看

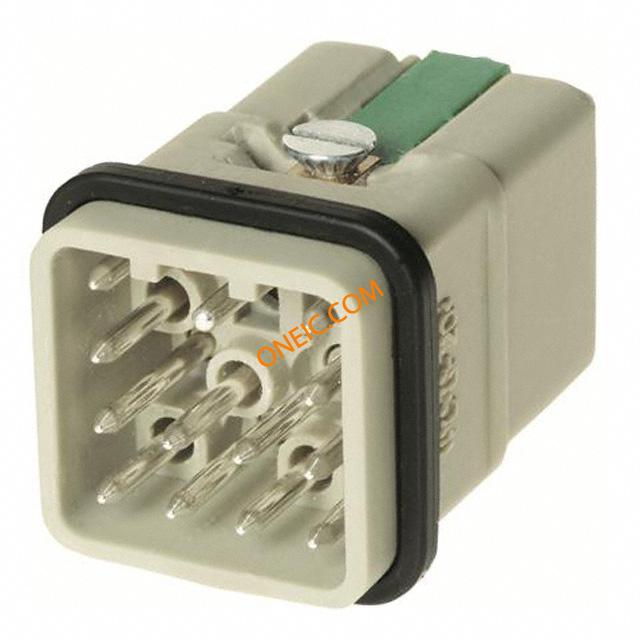

09120123001

制造商	HARTING Technology Group
描述	INSERT HAN 12/0 MALE Heavy Duty Power Connectors 12+GND MALE RECEPT SCREW TERM INSERT Han Q Male Insert: Insert Han 12/0 Male Harting Han Q 系列 4行 12针插头电源连接器外壳
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	012 09 09-12-012-3001 12 3001	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压

600V

最大额定电流

10A

机械参数

尺寸	3A	颜色	Gray
包装方式	Bulk	方向	直
触头类型	Han® D	连接器类型	Insert without Contacts
接触镀层	Gold	排数	4
插入力	Male	触头材料	Copper Alloy
壳体材料	Polycarbonate (PC)	尺寸/外形	3A
端接排数	压接	端接样式	Crimp, Push In with Lock
触点数	12 + PE	位数	12
线规或范围 - AWG	20-14

产品信息

类型	CONNECTORS	连接器性别	Male
系列	HAN-Q	产品子类型	Inserts
基础产品编号	0912

环境参数

工作温度

-40°C ~ 125°C
