点击放大查看

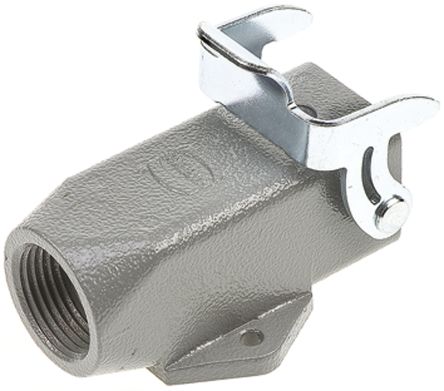

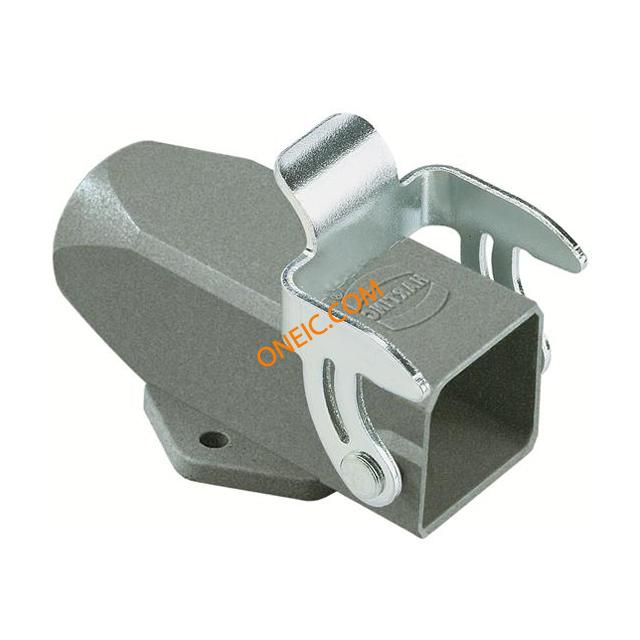

09200031250

制造商	HARTING Technology Group
描述	HAN A BASE SURFACE 1LEVER PG 11 Heavy Duty Power Connectors HAN 3A PG11 SIDE ENT SURFACE MOUNT Panel mount metal housing,PG11 size 3A HeavyDutyPowerConnectorsHAN3APG11SIDEENTSURFACEMOUNT Enclosure: for Han connectors; Han; size 3A; with lock; side; PG11 Han A Housings: Han A Base Surface 1 Lever 1 Entry PG 11 Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 09 09-20-003-1250 1250 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

最大额定电流

3 A

连接器类型 - 电压输入

side

机械参数

尺寸	3A	重量	0.08 kg
包装方式	Bulk	壳体颜色	grey
方向	straight	螺纹尺寸	PG11
外壳颜色	Gray	衬套螺纹	PG11
连接器类型	Base - Panel Mount 90°	外壳涂层	Powder Coated
安装样式	Right	封装形式	size 3A
插入力	Female	锁定特性	with lock
壳体材料	Zinc, Die Cast	包装数量	10
尺寸/外形	1.102" L x 1.575" W x 1.071" H (28.00mm x 40.00mm x 27.20mm)	端接样式	Cable
触点数	13	供应商器件封装	for Han connectors
外壳与棱镜材料	zinc alloy

产品信息

SPG	10	类型	CONNECTORS
样式	Side Entry	系列	Han Q
产品子类型	Housings	锁定位置	Central Locking Clip on Base Bottom
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C

相关型号

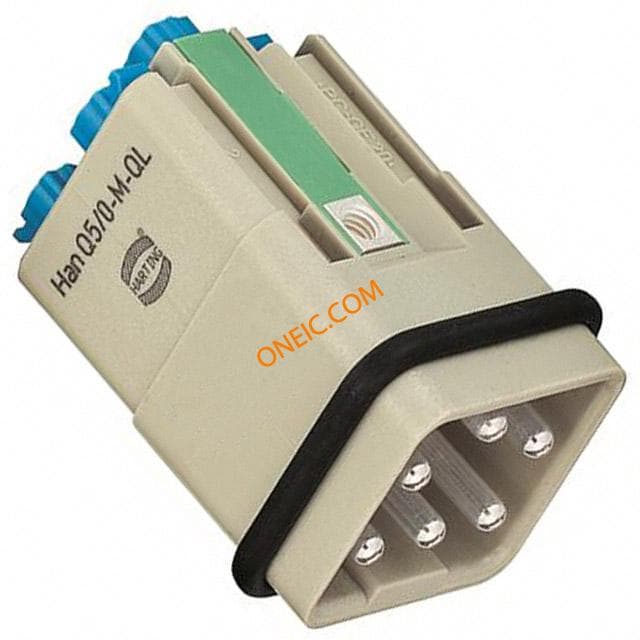

09120052633

Harting Technology Group

Conn Housing M 5 POS Crimp ST Cable Mount Heavy Duty Power Connectors 5+GND MALE RECEPT QUICK LOCK TERM HAN Q 5/0 INSERT MALE QUICK LOCK HANQ5/0Insertmalequicklock Connector: HAN; male; Quick Lock; PIN:6; 5+PE; size 3A; snap-on; 16A Han Q Male Insert: Han Q 5/0 Insert male quick lock Harting Han Q 系列 2行 5针插头电源连接器外壳

¥68.1100

详情

09120073001

Harting Technology Group

Conn Housing M 8 POS Crimp ST Panel Mount Heavy Duty Power Connectors MALE INSERT 7 POLE CRIMP TERM HAN Q 7/0-MALE HeavyDutyPowerConnectorsMALEINSERT7POLECRIMPTERM HanQ7/0-male Han Q Male Insert: Han Q 7/0-male Harting Han Q 系列 2行 8针插头电源连接器

¥27.4400

详情

09200042711

Harting Technology Group

Conn Rectangular F 4Power/1Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN A 4P FEMALE SCRW SCREW TERMINATION HAN A 04 POS. F INSERT SCREW Insert; 230/400 V; 10 A; Female; 4; RoHS Compliant; Han A Series Han10B-g Connector: HAN; female; Han A; PIN:5; 4+PE; size 3A; screw terminal Han A Female Insert-Screw: Han A 04 Position F Insert Screw

¥65.8240

详情

09200032611

Harting Technology Group

Conn Power M 3Power POS Screw ST Cable Mount 3 Terminal 1 Port Heavy Duty Power Connectors HAN A 3P MALE SCREW SCREW TERMINATION HAN 3A M INSERT SCREW Han A 3 2 Male Straight, Cable Mount 10A,600V Insert;230/400V;10A;Male;3;RoHSCompliant;HanASeries Connector: HAN; male; Han A; PIN:4; 3+PE; size 3A; screw terminal Han A Male Insert-Screw: Han 3A M Insert Screw Harting Han A 系列 2行 3针 3P+E极插头电源连接器插件 , 电缆安装

¥61.2306

详情

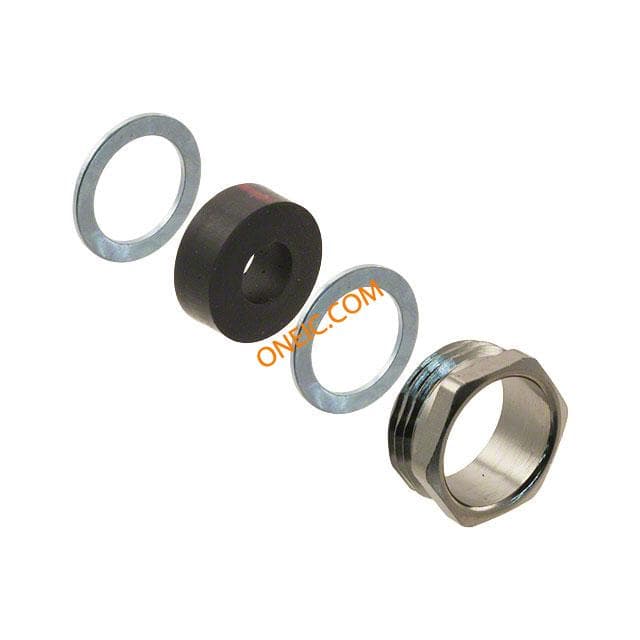

09000005013
