点击放大查看

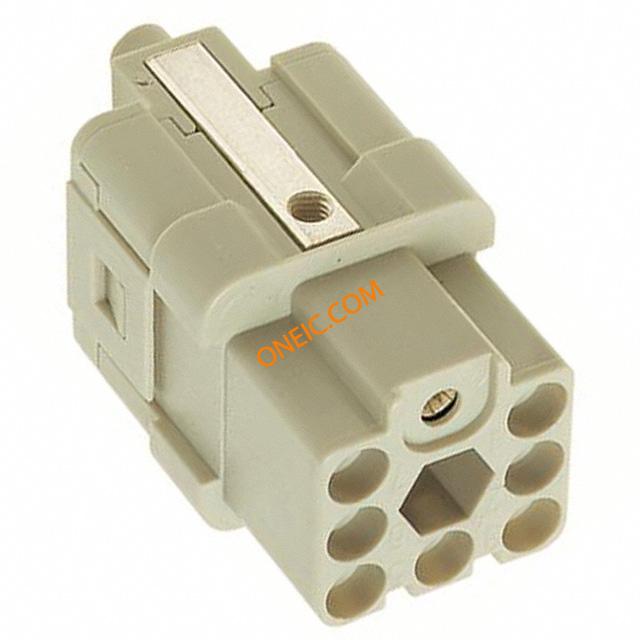

09120073101

制造商	HARTING Technology Group
描述	Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN Q FEM INST CRIMP TERM 7C+PE HAN Q 7/0-F HanQ7/0-Female Han Q Female Insert: Han Q 7/0-F Harting Han Q 系列 4行 8针插座电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	007 09 09-12-007-3101 12 3101	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	600V	最大额定电流	10A
最小输入电压	400V

机械参数

尺寸	3A	颜色	Gray
深度	40.1	高度	21
包装方式	Bulk	方向	直
触头类型	Han® DD	安装类型	Straight
连接器类型	Insert without Contacts	排数	4
插入力	Female	壳体材料	Polycarbonate (PC)
总长度	21	端接样式	Crimp
触点数	8	位数	7

产品信息

类型	Housing	连接器性别	F
系列	Han Q	CAD图纸	3D CAD 模型
产品子类型	Connectors

环境参数

工作温度

-40°C ~ 125°C
