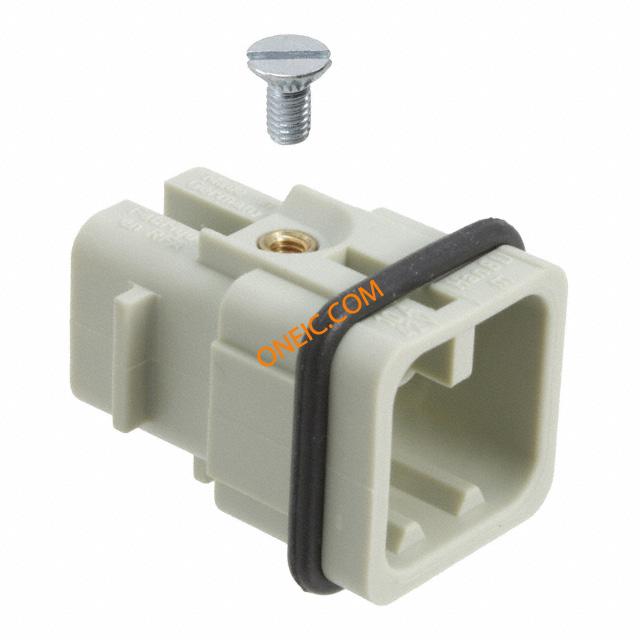

点击放大查看

09360083001

制造商	HARTING Technology Group
描述	HAN 8D MALE INSERT CRIMP Heavy Duty Power Connectors HAN U 8P MALE INSERT CRIMP Han(R) 8D(U) 8P male insert,10A 50Vac HANU8PMALEINSERTCRIMP Connector: HAN; male; Han D; PIN:8; size 3A; w/o terminals; crimped Han D Male Insert: Han 8D Male Insert Crimp Harting Han D 系列 8针插头电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	008 09 09-36-008-3001 3001 36	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

材料阻燃等级

UL94 HB

电气参数

测试电压	4kV	额定电压	50V
最大额定电流	10A	连接器类型 - 电压输入	w/o terminals

机械参数

尺寸	3A	颜色	Gray
重量	7.9 g	包装方式	Bulk
方向	直	重量（g）	7.60000
触头类型	Han® D	安装类型	crimped
连接器类型	Insert without Contacts	封装形式	size 3A
插入力	Male	壳体材料	Polyamide (PA), Nylon
包装数量	10	尺寸/外形	3A
端接样式	Crimp	触点数	8
位数	8	绝缘材料 - 材质	polycarbonate

产品信息

SPG	10	类型	CONNECTORS
连接器性别	Male	系列	Han D
CAD图纸	3D CAD Model	产品子类型	Inserts
适配器系列	Han D	单元数量	1

环境参数

工作温度

-40°C ~ 125°C
