132134
| 制造商 | |

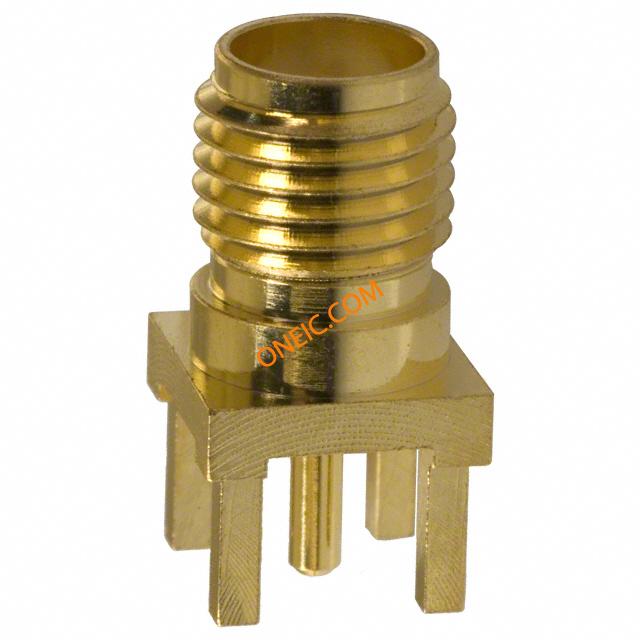

| 描述 | RF Connectors SMA STRAIGHT PCB RECEPTACLE Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA JACK STR 50 OHM PCB connector;rf coaxial;sma str jack for p.c.board;4 legs;.050 center cont;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PCB RECEPTACLE RF COAXIAL, SMA JACK, THT, 50OHM connector, rf coaxial, sma str jack for p.c.board, 4 legs, .050 center cont, 50 ohm |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1230 |
| 零件号别名 | 319-0176 99H5021 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 18G | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 18GHz |
机械参数
| 深度 | 7 | 高度 | 9.53 |
| 长度 | 0.531 in. | 重量 | 0.054322 oz |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Gold | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 7 | 主要材料 | SMA |
| 端接样式 | PCB - Through Hole | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Straight |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | PCB | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
901-9876-RFX
amphenol

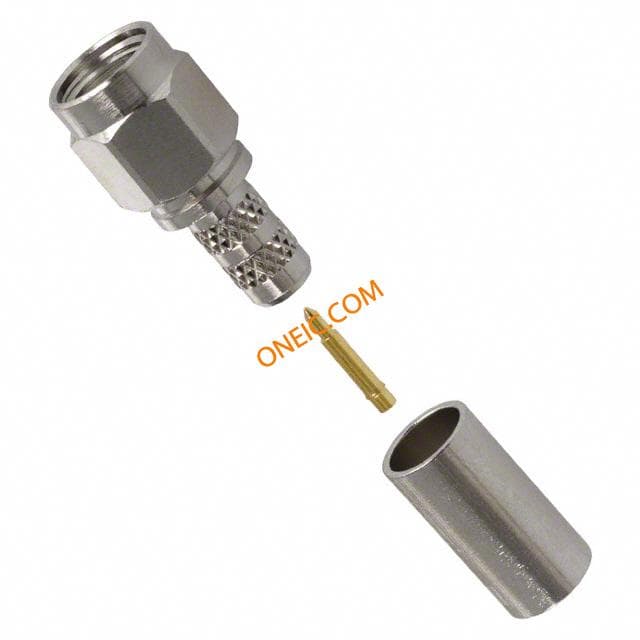

Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;crimp/solder;captive cont;rg58;50 ohm RF Connectors / Coaxial Connectors STRT PLG 58 141 Ni CONNECTOR, QMA, RF COAXIAL, CRIMP
132360
amphenol

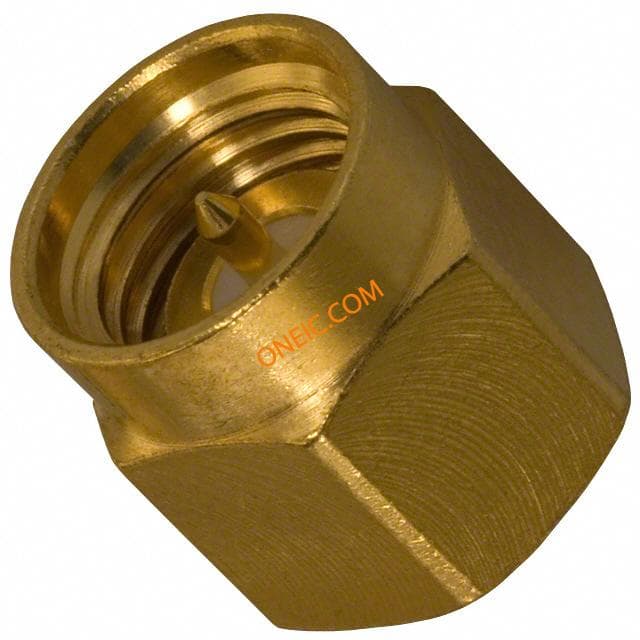

Conn SMA Terminator PL 0Hz to 18GHz 50Ohm ST Gold CONN SMA PLUG TERMINATOR 50 OHMS connector accessory;sma plug resistor cap;for jacks and receptacles;50 ohm RF Connectors / Coaxial Connectors SMA MALE RESISTOR CAP 50 OHM RF COAXIAL, SMA, PLUG, 50OHM Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacks/Recep; Straight; 50Ohms
202112-10
amphenol connex

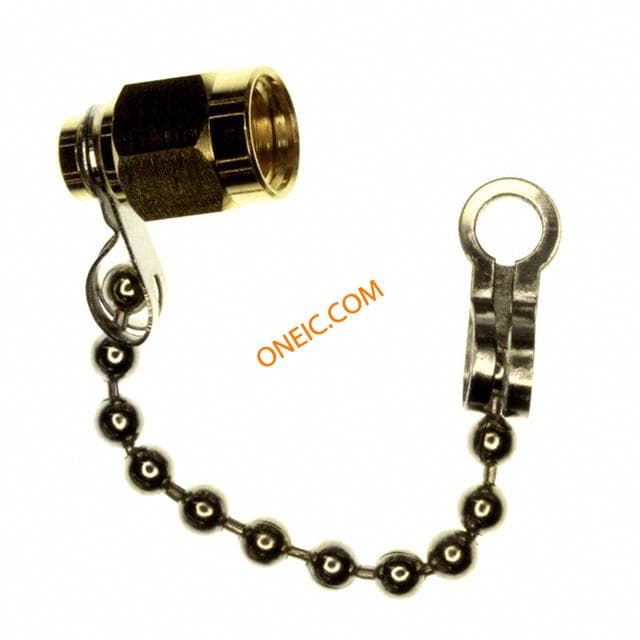

Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/CHAIN connector accessory;rf coaxial;sma plug cap with chain;for jacks and receptacles RF/COAXIAL CONNECTOR CAP, SMA, JACK, WITH CHAIN 202112-10 SMA Male Cap with Chain,Chain Length: 100mm, Amphenol
132364
amphenol connex
SMA PL CAP-EXT BODY FOR RP JK SMA CAP FOR FEMALE CONNECTOR RF Connector Accessories SMA MALE CAP FOR REV POLARITY JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forFemaleConn; Straight
202112
amphenol connex

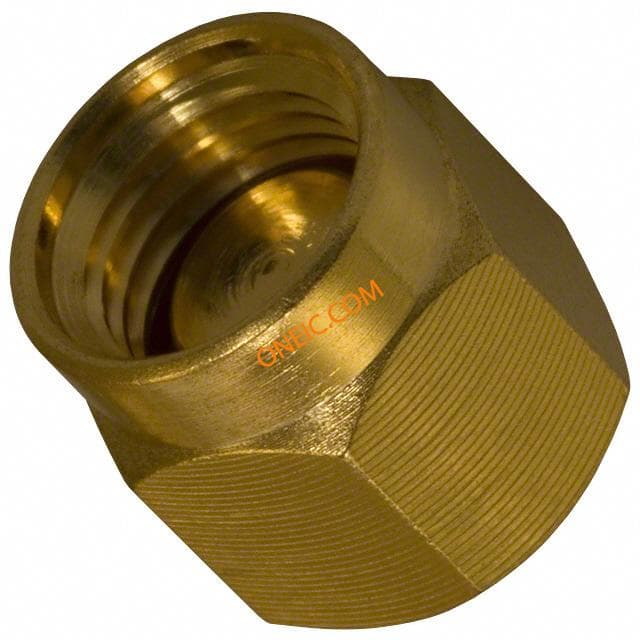

Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/O CHAIN connector accessory;sma dust cap(plug);for unused/open jacks and receptacles RF Connector Accessories SMA MALE CAP CAP, SMA, JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forJacksandRecep; Straight CONN CAP (COVER) FOR SMA JACKS
242140
amphenol connex

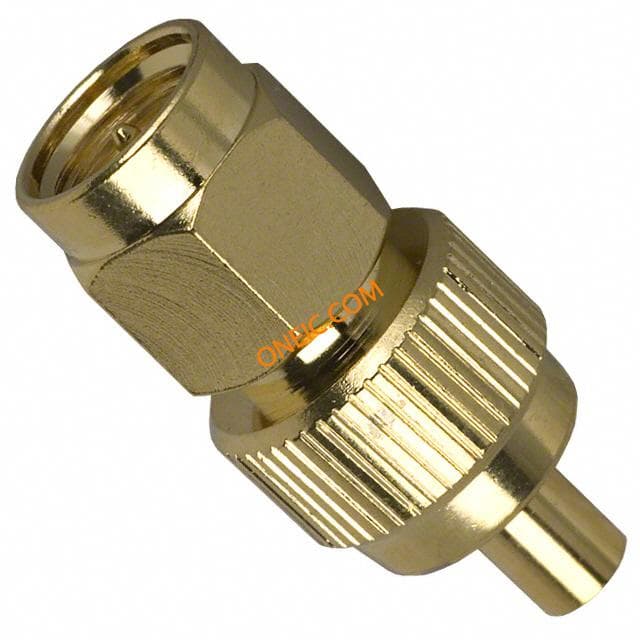

Conn SMA-MMCX Adapter PL/PL ST Gold CONN ADT SMA PLUG/MMCX JACK connector;rf coaxial;between series adapter;sma plug to mmcx jack RF Adapters - Between Series SMA PLUG TO MMCX JACK ADAPTER ADAPTOR, SMA-MMCX, RF COAXIAL connector, rf coaxial, between series adapter, sma plug to mmcx jack
132331
amphenol connex

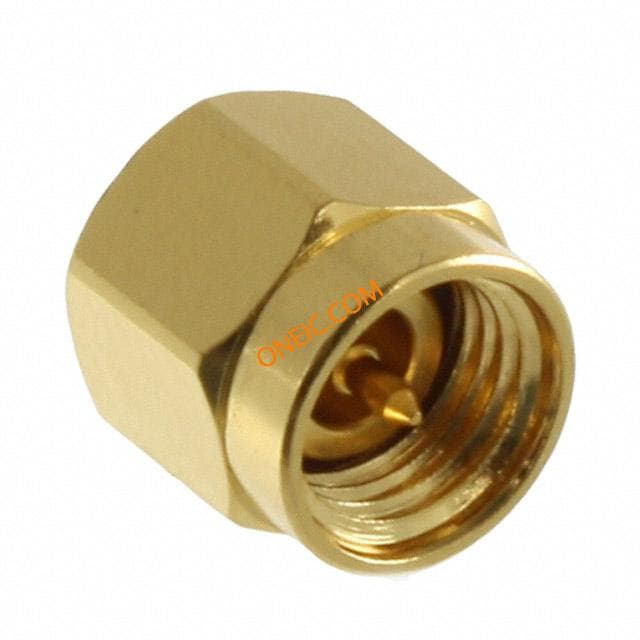

Connector Accessories SMA Male Shorting Cap Brass Gold Finish CONN PLUG SMA SHORTING CAP connector accessory;rf coaxial;sma male shorting cap for jacks and receptacles RF Connectors / Coaxial Connectors SMA MALE SHORTING CAP RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacksandRecep; Straight
132113
Amphenol Connex
RF Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg 58;141;LMR195 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD RF COAXIAL, SMA, PLUG, CRIMP, 50OHM connector, rf coaxial, sma str crimp plug, for rg 58, 141, LMR195 cable, 50 ohm 132113 SMA Male Crimp Connector, Cable Group C, Amphenol
132168
Amphenol Connex

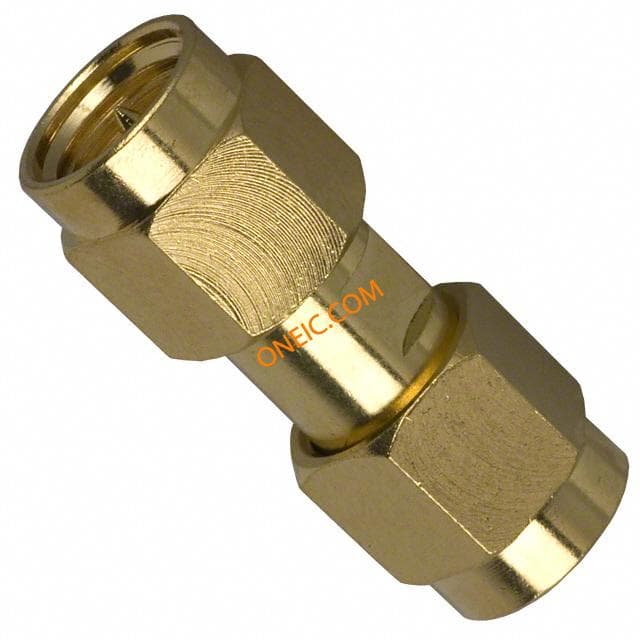

RF Adapters - In Series SMA ST PLUG PLUG ADAPTER GOLD Conn SMA Adapter PL/PL 0Hz to 18GHz 50Ohm ST Gold CONN SMA ADAPTER PLUG-PLUG STR connector;rf coaxial;sma in-series adapter;straight plug to plug;50 ohm RF COAXIAL CONNECTOR, ADAPTER connector, rf coaxial, sma in-series adapter, straight plug to plug, 50 ohm
132134
Amphenol Connex
RF Connectors SMA STRAIGHT PCB RECEPTACLE Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA JACK STR 50 OHM PCB connector;rf coaxial;sma str jack for p.c.board;4 legs;.050 center cont;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PCB RECEPTACLE RF COAXIAL, SMA JACK, THT, 50OHM connector, rf coaxial, sma str jack for p.c.board, 4 legs, .050 center cont, 50 ohm
132114
Brady Corporation
RF Connectors SMA STRAIGHT PLUG 316/174 GOLD Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg174;316;LMR100 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 316/174 GOLD RF COAXIAL, SMA, PLUG, CRIMP, 50OHM connector, rf coaxial, sma str crimp plug, for rg174, 316, LMR100 cable, 50 ohm 132114 SMA Male Crimp Connector, Cable Group B, Amphenol/Connex
901-144
amphenol

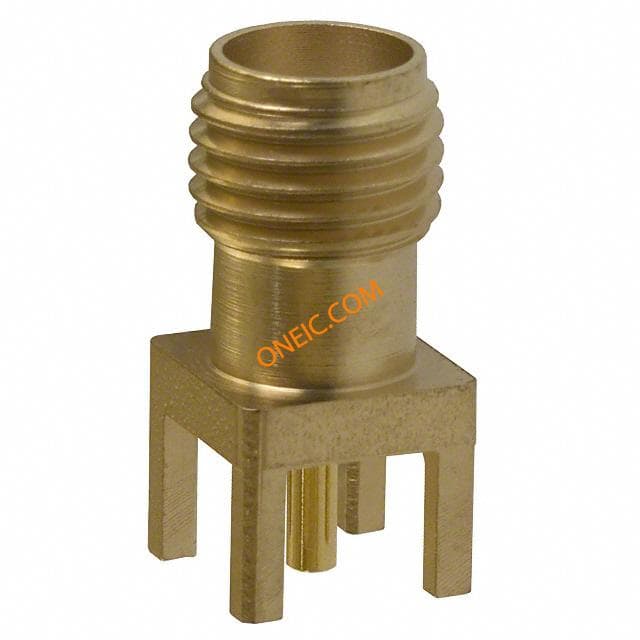

Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold Over Nickel CONN SMA JACK STR 50 OHM PCB connector;rf coaxial;sma pcb jack recept;4 legs;center post term;.155 legs&post RF Connectors / Coaxial Connectors PC JCK .155 GLD connector, rf coaxial, sma pcb jack recept, 4 legs, center post term, .155 legs&post
901-9894-RFX
amphenol

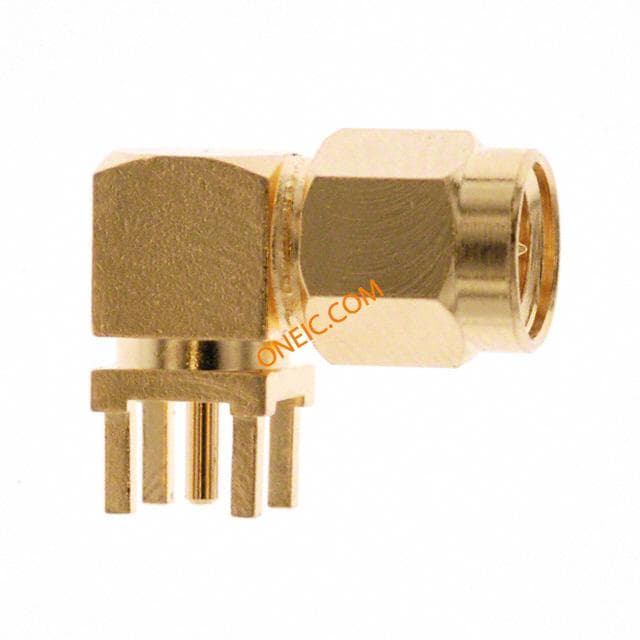

Conn SMA PL 0Hz to 18GHz 50Ohm Solder RA Thru-Hole Gold CONN SMA PLUG R/A 50 OHM PCB connector;rf coaxial;sma pcb rt angle plug recept;4 legs;blunt post term;gold RF Connectors / Coaxial Connectors PC R/A PLG TFE GLD CONNECTOR, QMA, RF COAXIAL connector, rf coaxial, sma pcb rt angle plug recept, 4 legs, blunt post term, gold
