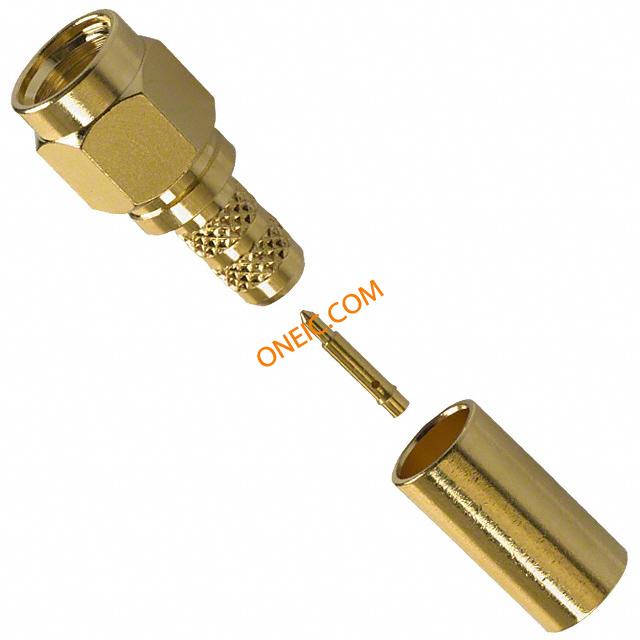

点击放大查看
132113
| 制造商 | |
| 描述 | RF Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg 58;141;LMR195 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD RF COAXIAL, SMA, PLUG, CRIMP, 50OHM connector, rf coaxial, sma str crimp plug, for rg 58, 141, LMR195 cable, 50 ohm 132113 SMA Male Crimp Connector, Cable Group C, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1192 |
| 零件号别名 | 319-0153 87H5611 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 12.4 | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | ||
机械参数
| 深度 | 8 mm | 重量 | 0.148151 oz |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A | 本体表面处理 | Gold |
| 电缆组 | RG-58, LMR-195 | 方向 | Straight |
| 端接方式 | Crimp | 重量（g） | 5.20000 |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 安装样式 | Cable | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 23 mm | 主要材料 | SMA |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 绝缘材料 - 材质 | :PTFE (Polytetrafluoroethylene) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 系列 | :SMA | 已删除 | Compliant |
| 极性 | Standard | 连接类型 | Flexible Cable |
| 射频系列/标准 | SMA | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
