点击放大查看
132360
| 制造商 | |

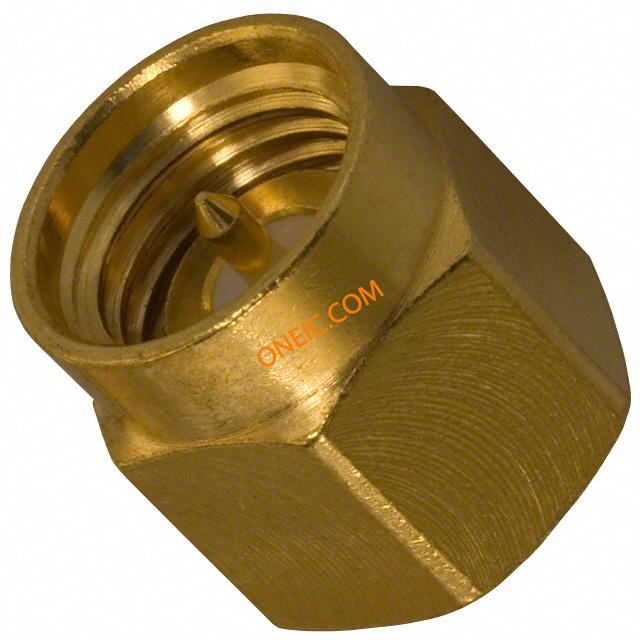

| 描述 | Conn SMA Terminator PL 0Hz to 18GHz 50Ohm ST Gold CONN SMA PLUG TERMINATOR 50 OHMS connector accessory;sma plug resistor cap;for jacks and receptacles;50 ohm RF Connectors / Coaxial Connectors SMA MALE RESISTOR CAP 50 OHM RF COAXIAL, SMA, PLUG, 50OHM Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacks/Recep; Straight; 50Ohms |
| 分类 |
商业参数
| 产品 | Terminators | 其他名称 | ACX1251 |
| 零件号别名 | 319-0189 99H5158 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 18GHz | ||
机械参数
| 深度 | 8 mm | 长度 | 0.331 in. |
| 重量 | 0.080284 oz | 直径 | Not Required mm |
| 本体表面处理 | Gold | 基体材料 | Brass |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 本体材料 | Brass | 触头材料 | Brass |
| 总长度 | 8.4 mm | 主要材料 | SMA |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | SMA Terminator | 连接器性别 | PL |
| 附件类型 | :Terminator, Coaxial | 射频系列/标准 | 132360 |
| 适用产品/相关产品 | :SMA Coaxial | 适用/相关制造商 | Jacks And Receptacles |
