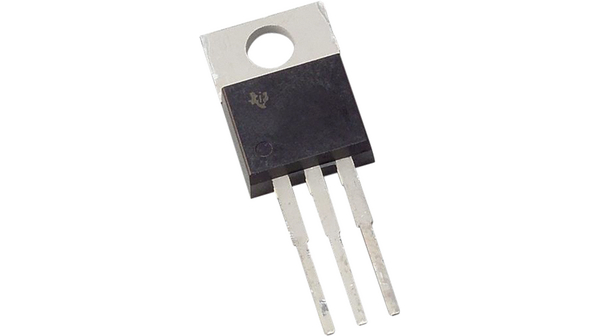

UA7805CKCS

制造商	Texas Instruments Incorporated
描述	Standard Regulator Pos 5V 1.5A 3-Pin(3+Tab) TO-220 Tube LDO Regulator Pos 5V 1.5A 3-Pin(3+Tab) TO-220 Tube IC REG LDO 5V 1.5A TO220-3 UA7805CKCS, Linear Voltage Regulator, 1.5A 5V, 3-Pin TO-220 Voltage Regulators - Standard Positive V 3 Pin 1.5A Fixed 5V Positive Voltage Regulator Linear voltage regulator 4.75...5.25 V TO-220-3, UA7805, UA7805CKCS, Texas Instruments Reg Standard Lin Fix Pos 5V 1.5A 3-Pin Linear Voltage Regulators Positive V
分类	集成电路电源管理IC通用电源管理IC

对参数有疑问？问 AI 助手

商业参数

其他名称	296-13996-5	产品类别	Voltage Regulators - Standard
标准包装数量	Rail / Tube	工厂包装数量	50
标准封装名称	TO-220

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
零件状态	ACTIVE	抗辐射加固	No

电气参数

电源抑制比	78 dB	噪声	40
输出端	1	精度	4
输出类型	Fixed	稳压器类型	Linear
额定电压	7 V	电源调整率	100mV
负载调整率	100 mV	输出电流	1.5 A
供电电压	2@1A V	输出数量	1
稳压器拓扑	Positive Fixed	电容 @ Vr, F	Cap Free Non-Ceramic
最大额定电流	Catalog	稳压器数量	1
最小输入电压	5V	静态电流 (Iq)	4.3
直流输入电压（最小）	7 V	静态电流（最大）	8 mA

机械参数

宽度	4.58mm	高度	8.7mm
长度	10.16mm	重量	0.067197 oz
包装方式	Tube	插片宽度	Tab
安装类型	Through Hole	安装样式	Through Hole
封装形式	3TO-220	冷却的封装	TO-220
总长度	10.67(Max)	包装数量	TO-220
尺寸/外形	10.16 x 4.58 x 8.7mm	位数	3
外壳尺寸-插件	9.25(Max)	供应商器件封装	TO-220-3

产品信息

类型	Linear	系列	UA7805
产品特性	Current Limit\|Safe Area Protectio...	极性	Positive
软件	SLVS056P	拓扑	Standard
制造商全称	Texas Instruments	输出及类型	Fixed Output
功能框图	alt_slvs056p.gif	使用的IC/零件	View
输出配置	5	印刷电路板数量	3

环境参数

测试温度

0 to 125

工作温度

0 to 125 °C

文档与媒体

PDF 文档

ua7805.pdf

PDF 文档

1788992.pdf

PDF 文档

ua7812.pdf
