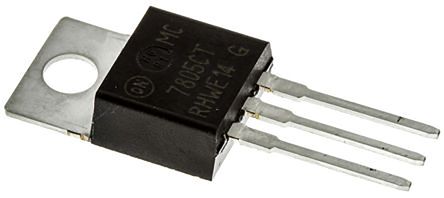

MC7805CTG

制造商	onsemi
描述	Standard Regulator Pos 5V 1A 3-Pin(3+Tab) TO-220 Rail LDO Regulator Pos 5V 1A 3-Pin(3+Tab) TO-220 Rail IC REG LDO 5V 1A TO220AB MC7805CTG, Voltage Regulator, 2.2A 5V, ±4%, 3-Pin TO-220 Voltage Regulators - Standard 5V 1A Postive Standard Regulator 5V 2.2A 3-Pin (3+Tab) TO-220 Rail IC, V REG +5.0V, 7805, TO-220-3 IC, REGULATOR +5.0V, TUBE50 REGULATOR,VOLTAGE;to-220;0.5MV(TYP.)LINEREGULATION;1.3MV(TYP.);5.0 Voltage stabiliser; fixed; 5V; 1A; THT; TO220AB; Package: tube Linear voltage regulator 5 V TO-220, MC7805CTG, ON Semiconductor ON Semiconductor MC78xx 系列线性稳压器, 5 V ±4% /1A, 3针 TO-220 Linear Voltage Regulators 5V 1A Positive
分类	集成电路电源管理IC通用电源管理IC

对参数有疑问？问 AI 助手

商业参数

其他名称	MC7805CTGOS	产品类别	Voltage Regulators - Standard
标准包装数量	Rail / Tube	工厂包装数量	50
标准封装名称	TO-220

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423990
零件状态	:7805

电气参数

电源抑制比	83 dB	精度	±4 %
输出类型	Fixed	稳压器类型	:Positive Fixed
额定电压	35 V	电源调整率	20 mV
负载调整率	25 mV	输出电流	1(Min) A
供电电压	2@1A V	输出数量	1
稳压器拓扑	Positive Fixed	25°C时电阻	5°C/W
稳压器数量	1	噪声 - 0.1Hz至10Hz	10μV/V
最小输入电压	5V	输出电压（最大）	:5V
最小供电电压	:4%	静态电流 (Iq)	3.2mA
静态电流（最大）	6.5 mA	最大持续工作电压（MCOV）	:35V

机械参数

宽度	4.82mm	高度	30.02mm
长度	10.28mm	重量	0.002
包装方式	Rail	引脚样式	Through Hole
端接方式	:Through Hole	安装类型	Through Hole
安装样式	Through Hole	引脚数	:3
封装形式	3TO-220	冷却的封装	TO-220
壁厚	0.51...0.61mm	材料表面处理	:-
包装数量	TO-220	尺寸/外形	10.28 x 4.82 x 30.02mm
位数	3	供应商器件封装	TO-220AB

产品信息

SPG	1	类型	Linear
产品特性	Current Limit\|Safe Area Protectio...	极性	Positive
基本单元	:7805	单元数量	1
使用的IC/零件	:MC7805CTG.

环境参数

工作温度

0 to 125 °C

可用温度范围

0to+125°C

文档与媒体

PDF 文档

MC7800-D.PDF

PDF 文档

MC78zz(z), NCV78zz

PDF 文档

87758.pdf
