点击放大查看

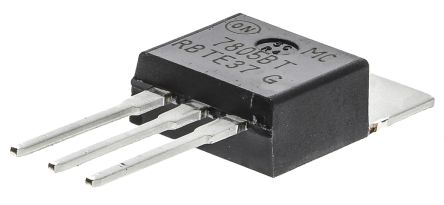

MC7805BTG

制造商	onsemi
描述	Standard Regulator Pos 5V 1A 3-Pin(3+Tab) TO-220 Rail LDO Regulator Pos 5V 1A 3-Pin(3+Tab) TO-220 Rail IC REG LDO 5V 1A TO220AB MC7805BTG, Voltage Regulator, 2.2A 5V, ±4%, 3-Pin TO-220 Voltage Regulators - Standard 5V 1A Postive IC, LDO VOLT REG, 5V, 1A, TO-220 IC, VOLTAGE REG, 40V, TO220-3 ANA1A5VVREG Voltage stabiliser; fixed; 5V; 1A; THT; TO220AB; Package: tube ON Semiconductor MC78xx 系列线性稳压器, 5 V ±4% /1A, 3针 TO-220 Linear Voltage Regulators 5V 1A Positive
分类	集成电路电源管理IC通用电源管理IC

对参数有疑问？问 AI 助手

商业参数

产品类别	Voltage Regulators - Standard	标准包装数量	Rail / Tube
工厂包装数量	50	标准封装名称	TO-220

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85411000
零件状态	:7805	抗辐射加固	No

电气参数

电源抑制比	68 dB	精度	±4 %
输出类型	Fixed	稳压器类型	Linear
额定电压	35 V	电源调整率	100mV
负载调整率	100 mV	输出电流	1(Min) A
供电电压	2@1A V	输出数量	1
稳压器拓扑	Positive Fixed	25°C时电阻	5°C/W
最大额定电流	:1A	稳压器数量	1
噪声 - 0.1Hz至10Hz	10μV/V	最小输入电压	5V
最小供电电压	:4%	输出电压精度	�4 %
静态电流 (Iq)	3.2mA	静态电流（最大）	8 mA
最大持续工作电压（MCOV）	:35V

机械参数

宽度	4.82mm	高度	30.02mm
长度	10.28mm	重量	0.00136
包装方式	Rail	引脚样式	Through Hole
端接方式	:Through Hole	安装类型	Through Hole
安装样式	Through Hole	引脚数	:3
封装形式	3TO-220	冷却的封装	TO-220
壁厚	0.51...0.61mm	材料表面处理	:-
包装数量	TO-220	尺寸/外形	10.28 x 4.82 x 30.02mm
位数	3	供应商器件封装	TO-220AB

产品信息

SPG	1	类型	Linear
产品特性	Current Limit\|Safe Area Protectio...	极性	Positive
拓扑	Standard	单元数量	1

环境参数

工作温度

-40 to 125 °C

可用温度范围

-40to+125°C
