AMPS-1-1103417-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN INSERT SOCKET HA.16 SERIES |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 16A |
机械参数
| 尺寸 | 5 | 颜色 | Beige |
| 包装方式 | Bulk | 连接器类型 | Insert |
| 接触镀层 | Silver | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Screw | 位数 | 16+Ground |
产品信息
| 连接器性别 | Female | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
1-1103416-1
te connectivity / amp
Conn Heavy-Duty Rectangular M 16Signal/1Ground POS Screw ST Panel Mount Loose Piece CONN INSERT PIN HA.16 SERIES HTS 17 2 Female Straight Heavy Duty Power Connector, Panel Mount 16A,250V Heavy Duty Power Connectors PIN INSERT 16+PE HA.16 SIZE 5 Conn Heavy-Duty Rectangular M 16Signal/1Ground POS Screw ST Panel Mount Loose Piece Product Highlights:HA.16 SeriesInsertProduct Size = 5Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 1-16 HA16wayscrewterminalmaleinsert,10A Connector: HTS; male; HTS HA; PIN:16; size 5; 16A; 250V; 0.5÷2.5mm2 TE Connectivity HA 系列 2行 16针 16P极 插头 电源连接器 , 面板安装
1106442-1
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece CONN HOOD TOP SZ5 M25 HD HD Connector, Hood HD.25.STO.1.M25.G HDCONNECTOR,HOODHD.25.STO.1 HD.25.STO.1.M25.G
1-1102136-7
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece HTS Connectors and Accessories HA.16.STS.1.16.G Heavy Duty Power Connectors HOOD SZ 5 PG16 SE HA.16.STS.1.16.G Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Product Highlights:HA SeriesHoodProduct Size = 5Dimensions (L x H x W) = 79.5 x 57.0 x 29.0 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Enclosure: for HTS connectors; HTS; size 5; Locking: for latch
1106456-1
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Power Connectors HA.32.STO.1.M32.G CONN HOOD TOP SZ7 M32 HA.32
1-1102147-2
te connectivity / amp
Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Connectors CONN HSG W/CVR SZ5 PG16 HA.16 HA.16.SGD-LB.1.16.Z HA.16.SGD-LB.1.16.Z Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650

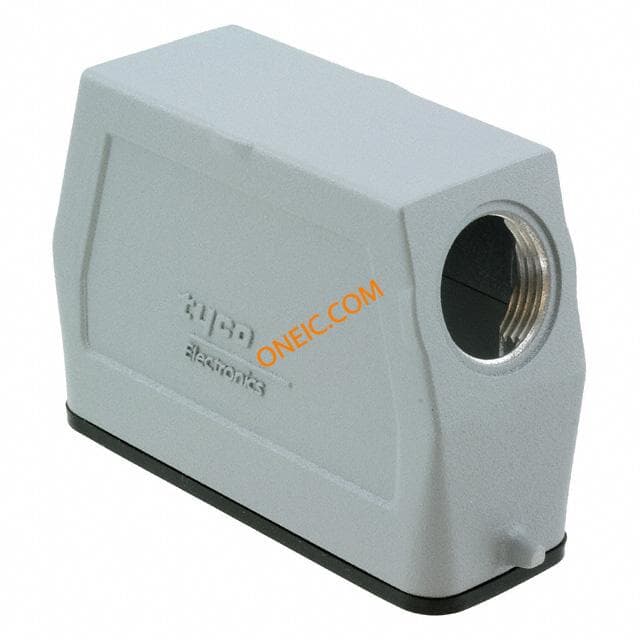

1106439-2
