点击放大查看

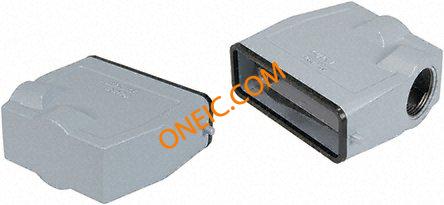

1106442-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece CONN HOOD SIDE SZ5 M25 HD HD Connector, Hood HD.25.STS.1.M25.G HD.25.STS.1.M25.G HD.25.STS.1.M25.G Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTOR,HOODHD.25.STS.1 TE Connectivity HD 系列 电源连接器外壳 |
| 分类 |
商业参数
| 标准包装规格 | 5 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 尺寸 | 5 | 颜色 | 灰色 |
| 宽度 | 29 mm [ 1.14 in ] | 高度 | 70.9 mm [ 2.8 in ] |
| 长度 | 79.5 mm [ 3.13 in ] | 材料（通用） | 铝 |
| 锁定类型 | 壳体底部 | 包装方式 | Bulk |
| 螺纹尺寸 | M25 | 外壳颜色 | Gray |
| 连接器类型 | Hood | 外壳涂层 | Powder Coated |
| 壳体材料 | Aluminum Alloy, Die Cast | 包装数量 | 5 |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | 3.130" L x 1.140" W x 2.791" H (79.50mm x 29.00mm x 70.90mm) |
| 外壳尺寸-插件 | 是 | AC输出连接器 | 侧 |
产品信息
| 类型 | Hood | 样式 | Side Entry |
| 系列 | HD | 产品子类型 | 附件 |
| 锁定位置 | Side Clip on Base Bottom | 附件类型 | 护罩 |
| 射频系列/标准 | 1106442 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 耐磨防护 | 否 |
