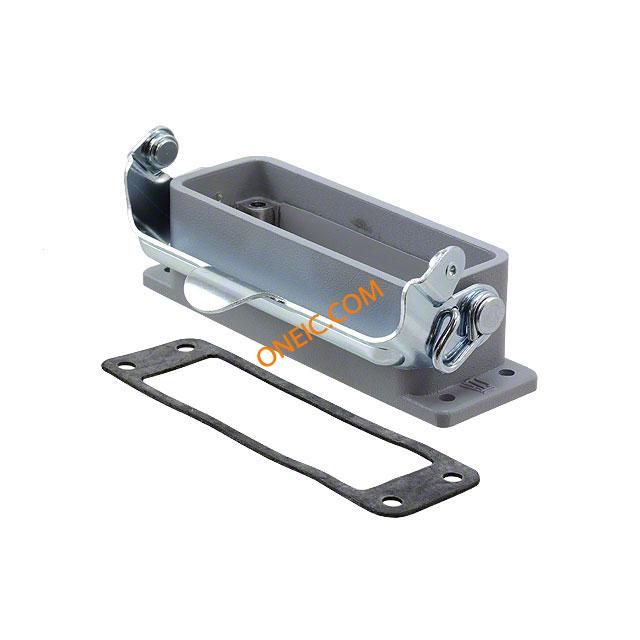

1-1102140-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | HA.16.AG-LB HTS Connectors and Accessories CONN HOUSING HA SERIES SIZE 5 HA 16way topentry metal panel base,Size5 Heavy Duty Power Connectors HA HOUSING SIZE 5 Connector Accessories Housing Die Cast Aluminum Loose Piece Connector Accessories Housing Die Cast Aluminum Loose Piece Product Highlights:HA SeriesHousingProduct Size = 5Dimensions (L x H x W) = 96.0 x 28.0 x 29.0 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HOUSING, SIZE 5, BOTTOM ENTRY HA16WAYTOPENTRYMETALPANEL Enclosure: for HTS connectors; HTS; size 5; Locking: with lock TE Connectivity HA 系列 顶入 电源连接器外壳 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, SEV, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 尺寸 | 5 | 表面处理 | Silver Gray |
| 重量 | 0.08 | 材料（通用） | Die Cast Aluminum |
| 包装方式 | Bulk | 出线方向 | :Bottom |
| 螺纹尺寸 | None | 外壳颜色 | Gray |
| 连接器类型 | Base - Panel Mount | 外壳涂层 | Powder Coated |
| 安装样式 | flange (4 holes), for panel mounting | 封装形式 | size 5 |
| 连接器样式 | Bottom | 锁定特性 | Side Clip at Housing Bottom |
| 本体材料 | :Aluminium | 壳体材料 | Aluminum Alloy, Die Cast |
| 包装数量 | Loose Piece | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 3.780" L x 1.181" W x 1.100" H (96.00mm x 30.00mm x 28.00mm) | 连接器颜色 | :Powder Coated, Silver Grey |
| 外壳尺寸-插件 | :5 | 总体尺寸 | 96.0 x 28.0 x 29.0 [3.78 x 1.10 x 1.14] |
| 供应商器件封装 | for HTS connectors | 外壳与棱镜材料 | aluminium alloy |
产品信息
| SPG | 2 | 类型 | Base,PanelMount |
| 样式 | Bottom Entry | 系列 | HA |
| CAD图纸 | 3D CAD Model | 制造商全称 | HTS |
| 产品子类型 | Housing | 锁定位置 | Side Clip on Base Bottom |
| 附件类型 | :Housing | 适配器系列 | HTS |
| 单元数量 | 1 | 适用产品/相关产品 | :HTS Heavy Duty Connectors |
环境参数
| NEMA 机架尺寸 | :IP40, IP65 | 液体防护 | No |
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | :125°C |
