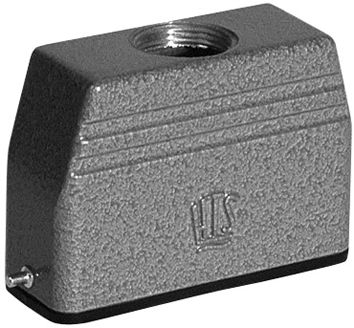

1106439-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Heavy Duty Connectors CONN HOOD TOP SZ5 M20 HA.16 HD Connector, Hood HA.16.STO.1.M20.G Heavy Duty Power Connectors HA.16.STO.1.M20.G Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Product Highlights:HA SeriesHoodProduct Size = 5Dimensions (L x H x W) = 79.5 x 57.0 x 29.0 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HOOD, SIZE 5, TOP ENTRY, M20 HDCONNECTOR,HOODHA.16.STO.1 Enclosure: for HTS connectors; HTS; size 5; Locking: for latch TE Connectivity HA 系列 电源连接器 HA.16.STO.1.M20.G |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
机械参数
| 尺寸 | 5 | 表面处理 | Silver Gray |
| 重量 | 0.11 | 材料（通用） | Die Cast Aluminum |
| 包装方式 | Bulk | 出线方向 | :180° |
| 方向 | straight | 螺纹尺寸 | M20 |
| 外壳颜色 | Gray | 衬套螺纹 | M20 |
| 连接器类型 | Hood | 外壳涂层 | Powder Coated |
| 安装样式 | for cable | 封装形式 | size 5 |
| 连接器样式 | Top | 锁定特性 | Side Clip at Housing Bottom |
| 本体材料 | :Aluminium | 壳体材料 | Aluminum, Die Cast |
| 包装数量 | Loose Piece | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 3.130" L x 1.140" W x 2.256" H (79.50mm x 29.00mm x 57.30mm) | 连接器颜色 | :Silver Grey |
| 工作尺寸 | 79.5 x 57.0 x 29.0 | 外壳尺寸-插件 | :5 |
| 供应商器件封装 | for HTS connectors | 外壳与棱镜材料 | aluminium alloy |
产品信息
| SPG | 5 | 类型 | Hood |
| 样式 | Top Entry | 系列 | HA |
| 制造商全称 | HTS | 产品子类型 | Accessory |
| 锁定位置 | Side Clip on Base Bottom | 附件类型 | Hood |
| 适配器系列 | HTS | 单元数量 | 1 |
| 射频系列/标准 | 1106439 | 适用产品/相关产品 | :HTS Heavy Duty Connectors |
环境参数
| 液体防护 | No | 防护等级 | IP65 - Dust Tight, Water Resistant |
文档与媒体
