点击放大查看
88189-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 24 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN PLUG 24POS HSG W/DETENT FFC & FPC Connectors 024 HOUSING FFC PIN DR 100CL Conn Housing PL 24 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedConnector Style = ReceptacleAccepts Contact Gender = Pin2.54 mm CenterlineSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 024 HOUSING FFC PIN DR 100CL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | Yes |
电气参数
| 额定电压 | 300V | 供电电压 | 300 VAC |
| 输入电阻 | 5000 | 钳位电压 | 720 |
| 连接器阻抗 | 制动器窗口 | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 深度 | 23.62 mm |
| 间距 | 2.54 mm | 高度 | 10.16 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 电缆类型 | FFC | 导线线规 | 22-24 AWG |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Standard |
| 排数 | 2 | 连接器用途 | Plug |
| 锁定特性 | Detent Windows | 壳体材料 | Thermoplastic |
| 总长度 | 37.59 mm | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 端接样式 | 插针 | 第一连接器类型 | 带罩 |
| FFC/FCB厚度 | 0.05-0.13mm | 配接方向 | With |
| 触点数 | 24 | 绝缘直径 | 0.061" ~ 0.069" (1.55mm ~ 1.75mm) |
| 位数 | 24 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [0.100] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Detent Lock, Positions Stamped |
| 产品子类型 | Housing | 扁平柔性类型 | FFC, Discrete Wire |
| 连接类型 | FFC Cable | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
文档与媒体
相关型号
86557-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts CONN CONTACT PIN 22-26AWG FFC FFC & FPC Connectors FFC PIN ROUND WIRE PLATED Flexible Film Contacts Product Highlights:PinContact Type = PinWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, FFC PIN ROUND WIRE PLATED
1-87631-9
te connectivity / amp
Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 24POS .100 POL DUAL Headers & Wire Housings 24 MODIV HSG COMP DR Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 24Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 24 路 直 母 电缆安装 PCB 连接器外壳 24 MODIV HSG COMP DR .100 POL
86561-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Flexible Film Contacts ROUND WIRE PIN L.P. 22-26 crimp contact gold plated FFC & FPC Connectors 100X100 FFC PIN 26-22AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = PinWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT PIN, GOLD, 26-22AWG 22-26crimpcontactgoldplated Crimp pin 3 A Male 26...22 AWG, 86561-6, TE Connectivity TE Connectivity FFC 系列 压接接线端子, 压接, 镀金镀镍触点
1-88179-4
te connectivity / amp
Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 24POS HOUSING FFC .100 FFC & FPC Connectors 24P RCPT DR 100CL Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 24Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 024 HOUSING FFC RCPT DR 100CL
1-86557-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts FFC PIN ROUND WIRE PLATED Crimp contact 22-26 awg tin Mod II FFC & FPC Connectors PIN CONTACT TIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = PinWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, CRIMP, PLUG, IDC, 26-22AWG CONTACT, CRIMP, PIN, 26-22AWG, REEL CRIMPCONTACT22-26AWGSN TE Connectivity FFC 系列 公 压接接线端子, 压接, 镀锡镀镍触点 FFC,PIN CONTACT,ROUND WIRE,22-
86658-2
te connectivity / amp
Solder Terminal 22-24AWG M Gold Loose Piece Flexible Film Contacts CONN PIN ROUND WIRE 22-24AWG FFC & FPC Connectors ROUND WIRE PIN L.P. Flexible Film Contacts Product Highlights:PinContact Type = PinWire Range = 0.20-0.40² [24-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, ROUND WIRE PIN L.P.
86557-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip FFC & FPC Connectors PIN CONTACT 26-22AWG Flexible Film Contacts FFC PIN ROUND WIRE PLATED Crimp contact 22-26 awg gold Mod II Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = PinWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, PIN, 26-22AWG, CRIMP CONTACT, CRIMP, PIN, 26-22AWG, REEL Crimpcontact22-26awggoldModII TE Connectivity FFC 系列 公 压接接线端子, 压接, 镀金镀镍触点
88048-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts FFC PIN CONTACT AU FFC & FPC Connectors FFC PIN CONTACT AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = PinWire Range = 0.03-0.15² [32-26] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire,
88117-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts CONN PIN FFC .100 15GOLD FFC & FPC Connectors FFC PIN CONT 15AU RL Flexible Film Contacts Product Highlights:PinContact Type = Pin2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold Flash over Palladium Nickel or Gold (15) over Nickel Contact Plating, Mating Area, MaterialSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, FFC PIN CONT 15AU RL
494033-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts FFC PIN CONTACT FFC & FPC Connectors FFC PIN CONTACT
86561-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Flexible Film Contacts CONN CONTACT PIN 22-26AWG FFC FFC & FPC Connectors ROUND WIRE PIN L.P. Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = PinWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, ROUND WIRE PIN L.P.
88117-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts CONN PIN FFC .100 15GOLD FFC & FPC Connectors 100X100 FFC PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = Pin2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (15) Contact Plating, Mating Area, MaterialSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, FFC PIN CONT 15AU RL

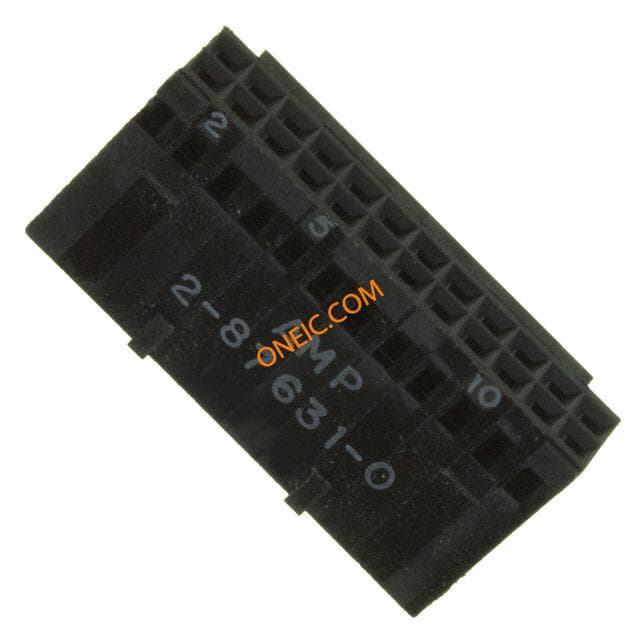

2-87631-0
