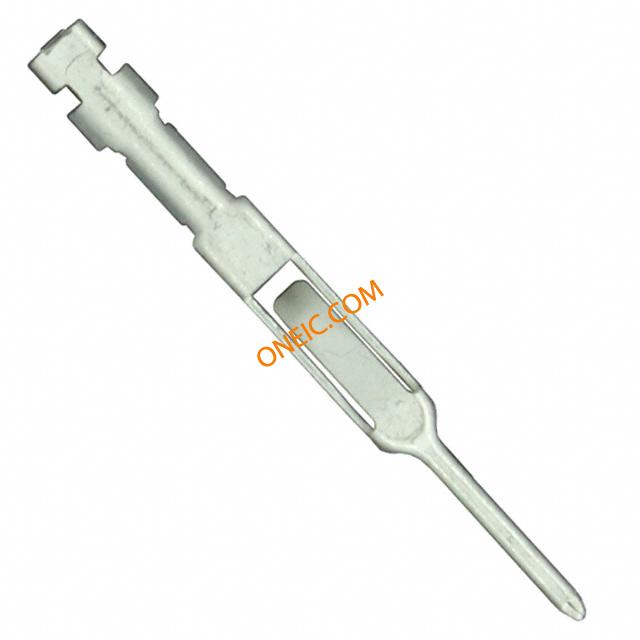

1-86561-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Flexible Film Contacts CONN PIN FFC 26-22AWG TIN Crimp contact 22-26 awg tin Mod II FFC & FPC Connectors 100X100 FFC PIN 26-22AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = PinWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT PIN, TIN, 26-22AWG Crimpcontact22-26awgtinModII TE Connectivity FFC 系列 压接接线端子, 压接, 镀锡镀镍触点 FFC,PIN CONTACT,LP,ROUND WIRE, |
| 分类 |
商业参数
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :- |
| 海关税号 | 85369010 | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接触电阻 | 45mΩ | 最大额定电流 | 2 A |
机械参数
| 间距 | 2.54 mm | 重量 | 0.01 |
| 包装方式 | Bulk | 电缆类型 | Round Wire, Discrete |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触点尺寸 | :22 | 触头类型 | Pin |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector FFC-FPC |
| 接触镀层 | Tin Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 2.54 [0.100] | 包装数量 | Loose Piece |
| 端接样式 | IDC | 第一触头极性 | PIN |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 1.02 â 1.42 [0.040 â 0.056] | 接触镀层厚度 | 100µin (2.54µm) |
| 线规或范围 - AWG | :26AWG | 线规或范围 - mm² | 0.12-0.40² [26-22] |
| 外径-未扩张 | :1.42mm | ||
产品信息
| 备注 | Use Extraction Tool No. 91092-1 for end locking slot and Extraction Tool No. 91 | 类型 | Contact |
| 连接器性别 | PIN | 系列 | :AMPMODU |
| 产品子类型 | Contacts | 适用产品/相关产品 | :.100 Centerline Connectors |
环境参数
| 工作温度 | +105°C | 可用温度范围 | -55to+105°C |
| 结工作温度 | 105°C | ||
