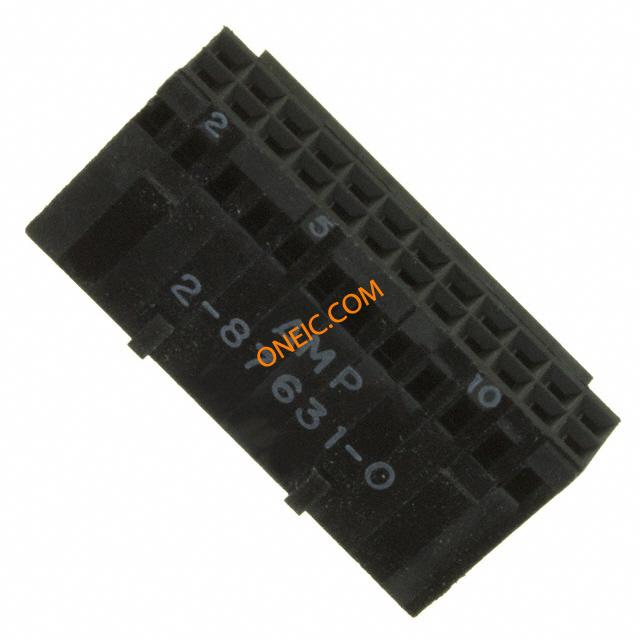

2-87631-0

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 24POS .100 POL DUAL AmpModu IV receptacle Housing 12+12 way Headers & Wire Housings RECEPTACLE 24 POS Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 24Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,24POSITION,.100IN,DUALROW,LATCHED,MARKED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 24 路直母电缆安装 PCB 连接器外壳 24 MODIV HSG DR MRKD .100 POL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	是

电气参数

额定电压	250 V	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	最小供电电压	250VAC
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	6.1mm
高度	3.14 mm [ .24 in ]	长度	30.48mm
锁定类型	锁闩	包装方式	Bulk
壳体颜色	黑色	导线线规	20-30 AWG
方向	直	排间距	0.100" (2.54mm)
触头类型	Female Socket	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	触头材料	Phosphor Bronze
壳体材料	Glass Fibre Reinforced Thermoplastic	总长度	30.48 mm
包装数量	1	主要材料	InterconnectSystem
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	24	接触件端接	Crimp
位数	24	兼容外壳尺寸（如TM-700等）	公端
安装孔直径	带有	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
抽头/步进数	2	其他规格	是
应用细节	Board to Board	适用产品/相关产品	MOD 1/2 Wire to Board Standard Pressure Contact

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

2-87631-0?RQPN=2-87631-0

相关型号

1-103168-0

te connectivity / amp
