5-103167-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 24POS 30AU Headers & Wire Housings 24P HDR DRRA SHRD Conn Shrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = Dual24 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 24 MODII HDR DRRA SHRD LF |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A33145 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LE7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 750 V | 开关功能 | Detent Windows |
| 连接器阻抗 | 制动器窗口 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 750 Vrms |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 带有 | 包装方式 | Tray |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] |
| 引脚样式 | 直角 | 排间距 | 0.100" (2.54mm) |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 第二连接器 | With | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Detent Lock | 安装样式 | 标准 |
| 排数 | 2 | 外壳材料（壳体） | 4- 面 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 64 |
| 面板安装类型 | 通孔 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 24 | 端接表面处理 | 带罩 |
| 位数 | 24 | 柱体长度（配合） | 8.08 mm |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 0.318" (8.08mm) |
| 端子柱长度 | 3.43 mm | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 端接镀层厚度 | 100 – 200 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 产品子类型 | Headers | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | - 55 C to + 105 C | 封装热阻 | 1.397 mm [ .055 in ] |
文档与媒体
相关型号

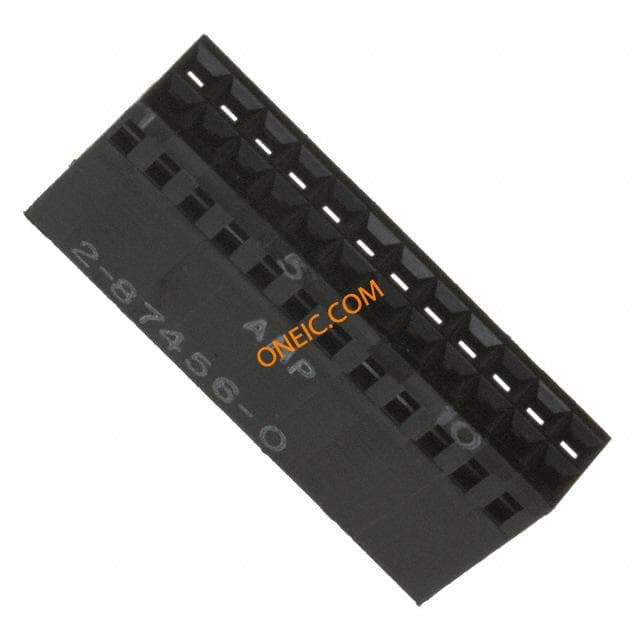

2-87456-0
