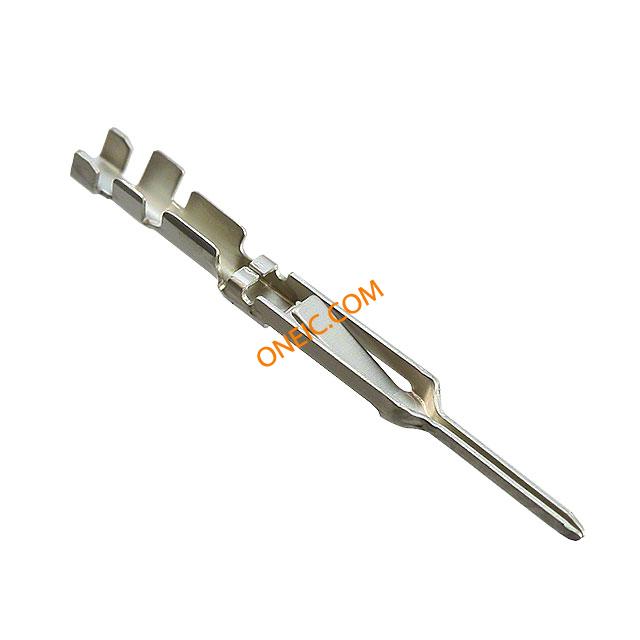

1-86557-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts FFC PIN ROUND WIRE PLATED Crimp contact 22-26 awg tin Mod II FFC & FPC Connectors PIN CONTACT TIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = PinWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, CRIMP, PLUG, IDC, 26-22AWG CONTACT, CRIMP, PIN, 26-22AWG, REEL CRIMPCONTACT22-26AWGSN TE Connectivity FFC 系列 公 压接接线端子, 压接, 镀锡镀镍触点 FFC,PIN CONTACT,ROUND WIRE,22- |
| 分类 |
商业参数
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 45mΩ | 最大额定电流 | 3 A |
机械参数
| 间距 | 2.54 mm | 重量 | 0.005 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | Round Wire, Discrete |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Pin | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector FFC-FPC | 接触镀层 | Tin Over Nickel |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 2.54 [0.100] |
| 包装数量 | Strip | 端接样式 | IDC |
| 第一触头极性 | PIN | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 â 1.42 [0.040 â 0.056] |
| 接触镀层厚度 | 100µin (2.54µm) | 线规或范围 - AWG | :26AWG |
| 线规或范围 - mm² | 0.12-0.40² [26-22] | ||
产品信息
| 备注 | Crimp Control Monitor 567561-2 for AMP-O-LECTRIC.; Use Extraction Tool No. 9109 | 类型 | Contact |
| 连接器性别 | PIN | 系列 | :- |
| 产品子类型 | Contacts | 适用产品/相关产品 | :FFC Connectors |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
