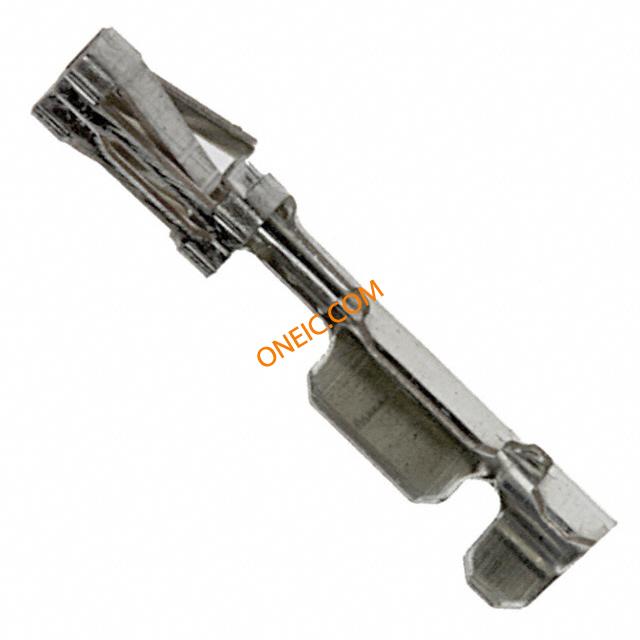

86016-3

点击放大查看

86016-3

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG TIN CRIMP Crimp connector,receptacle,Mod IV,Sn Headers & Wire Housings STANDARD PRESSURE 24-20 AWG tin Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP CONTACT,RECEPTACLE,MODIV,24-20AWG TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀锡触点 MOD IV RECP LP
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant海关税号85366910

电气参数

额定电压250 VAC接触电阻12mΩ
最大额定电流3 A最小供电电压250VAC

机械参数

深度2.41 mm间距Not Required mm
高度2.03 mm重量0.002
包装方式Bulk导线线规20-24 AWG
端接方式Crimp触头类型Signal
外壳颜色Not Required安装类型Straight
插针或插孔Socket连接器类型Connector Headers and PCB Receptacles
接触镀层Bright Tin安装样式Cable
触头材料Beryllium Copper壳体材料Not Required
总长度12.09 mm端接样式Crimp
第一触头极性Socket (Female)触点数Not Required
接触件端接Crimp接触镀层厚度78µin (1.98µm)
线规或范围 - AWG:24AWG

产品信息

类型Contact连接器性别SKT
系列Mod IVCAD图纸3D CAD Model
产品子类型Contacts适用产品/相关产品:Mod IV Series Connectors

环境参数

工作温度+105°C

文档与媒体

在线文档
86016-3?RQPN=86016-3

相关型号

1-87456-6

1-87456-6

te connectivity / amp

Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL Housing 20 way receptacle 2.54mm AmpModu Headers & Wire Housings 20P HOUSING Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;ModIV;Dual;20;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 20 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 壳体 20 MODIV HSG DR MRKD .100CL

¥5.7800
详情

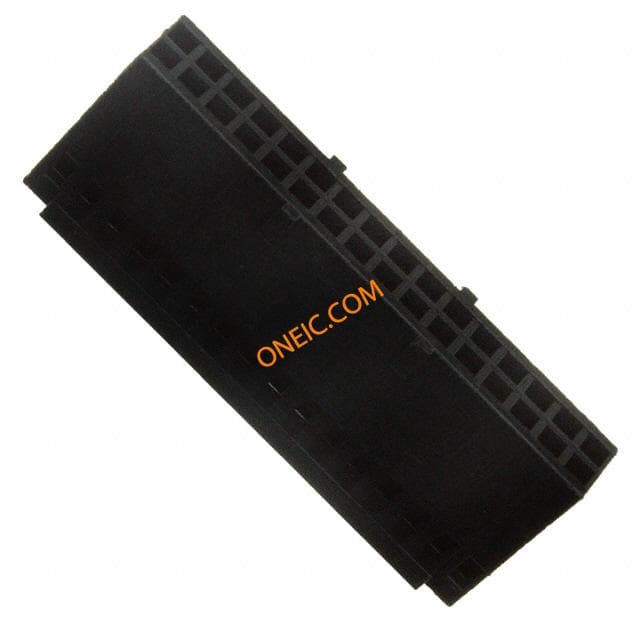

2-87631-7

2-87631-7

te connectivity / amp

Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 32POS .100 POL DUAL Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 32Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 32 MODIV HSG COMP DR .100 POL

¥8.3640
详情
87922-5

87922-5

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 18POS .100 POL W/STR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG W/STR RLF DR MRKD

¥24.8200
详情
1-102387-5

1-102387-5

te connectivity / amp

Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 22POS DUAL .100

详情
2-87499-8

2-87499-8

te connectivity / amp

Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 15POS .100 SINGLE Headers & Wire Housings 15 POS HSG SR MRKD .1CL Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 15 MODIV HSG COMP SR .100CL

¥3.8760
详情
87499-9

87499-9

te connectivity / amp

Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 5POS .100 SINGLE AmpModu IV receptacle Housing 5 way Headers & Wire Housings NON-PLRZD HSG 5 SNGL .505 width Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Single;5;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 5 路 直 母 电缆安装 PCB 连接器外壳 05 MODIV HSG SR MRKD .100CL

¥1.2784
详情
91516-1

91516-1

te connectivity / amp

General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT MOD IV TOOL CRIMPER MT CONN 20-24 AWG Crimper,SAHTRatchet,24-20AWG,AMP MOD CRIMP TOOL, SAHT, 20-24AWG Crimper;SAHTRatchet;24-20AWG;AMPMODUModIVContacts;CERTI-CRIMPII Crimping tool, 91516-1, TE Connectivity CERTICRIMP 2,SAHT MOD 4

¥3747.1400
详情
102241-1

102241-1

te connectivity / amp

Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 3POS .100 POLAR 2.54mm,housing,3W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 3 SNGL detent latching Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 3WAY Housing,Connector;ModIV;Single;3;250VAC;3A;750VYes Plug; wire-board; female; PIN:3; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 3 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-1, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 3 路 直 母 电缆安装 PCB 壳体 03 MODIV HSG COMP SR .100 POL

¥1.5776
详情
1-102387-2

1-102387-2

te connectivity / amp

Conn Housing RCP 64 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 64POS .100 POL DUAL Headers & Wire Housings 64P MODIV HOUSING Conn Housing RCP 64 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 64Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 64POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,64POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 64 路 直 母 电缆安装 PCB 连接器外壳 64 MODIV HSG COMP DR .100 POL

¥14.6200
详情

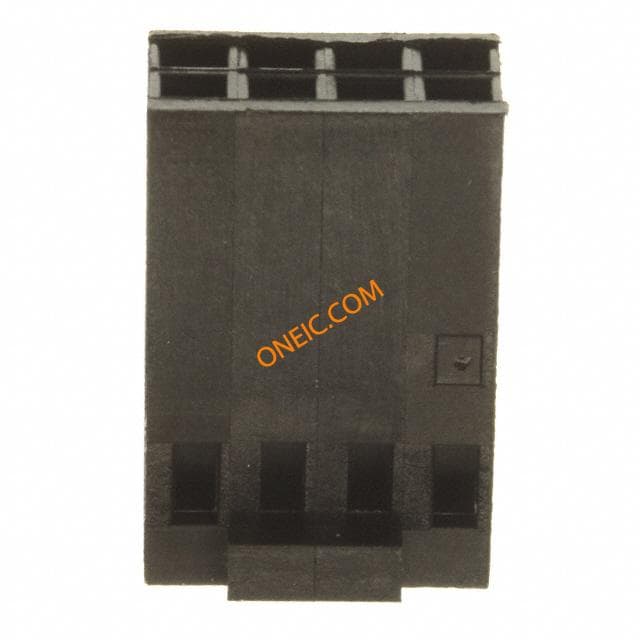

2-87977-9

2-87977-9

te connectivity / amp

Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Headers & Wire Housings 08 MODIV HSG COMP DR Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MODIV HSG COMP DR .100 POL

¥5.5080
详情
1-87733-7

1-87733-7

te connectivity / amp

Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 60POS .100 POL W/STR .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 60Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG W/STR RLF DR MRKD

¥24.5480
详情

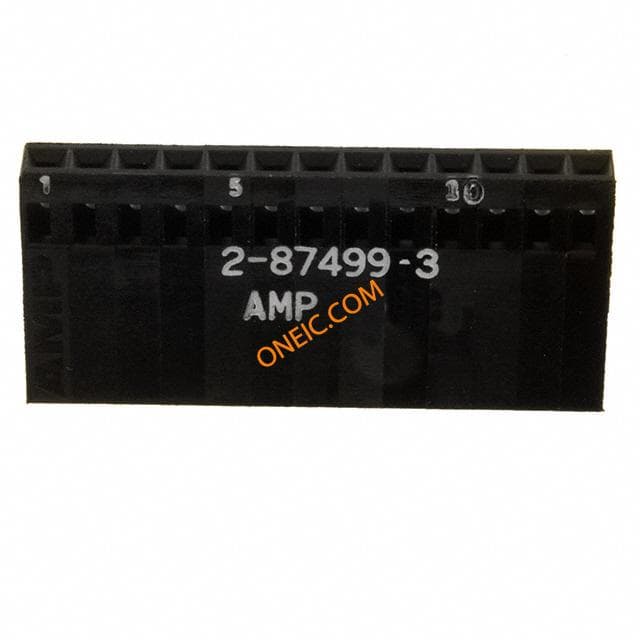

2-87499-3

2-87499-3

te connectivity / amp

Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 13POS .100 SINGLE Headers & Wire Housings HSG 1X13C F/H Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 13POS, 2.54MM 13 MODIV HSG SR MRKD .100CL

¥3.9440
详情
3-87977-3

3-87977-3

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM 16 MODIV HSG COMP DR .100 POL

¥6.4600
详情
1-102241-6

1-102241-6

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POLAR Headers & Wire Housings 18 HSG SR COMP .100 POL 18 MODIV HSG COMP SR .100 POL 18 MODIV HSG COMP SR .100 POL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥3.9440
详情
4-87977-0

4-87977-0

te connectivity / amp

Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT CRIMP 30POS Headers & Wire Housings 30 MODIV HSG COMP DR .100 POL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG COMP DR .100 POL

¥6.3920
详情
1-87631-7

1-87631-7

te connectivity / amp

Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 22POS .100 POL DUAL Headers & Wire Housings 22 MODIV HSG COMP DR Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 22Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 22 MODIV HSG COMP DR .100 POL

¥7.3440
详情

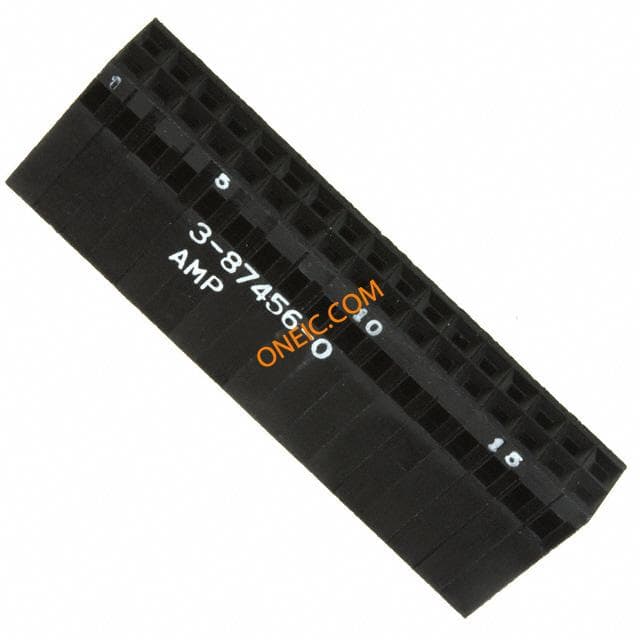

3-87456-0

3-87456-0

te connectivity / amp

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings 34P MOD IV HOUSING Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;34;250VAC;3A;750V 34 MODIV HSG DR MRKD .100CL

¥7.6160
详情
1-87631-2

1-87631-2

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings 16P 2 ROW HOUSING Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X8WAY Housing,Connector;Crimp-Snap;Dual;16;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 16 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 1-87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 16 MODIV HSG DR MRKD .100 POL

¥4.6240
详情

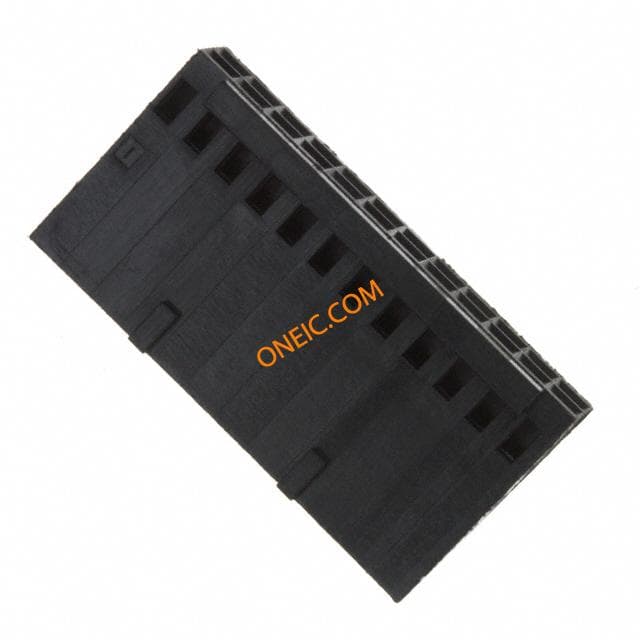

3-87977-7

3-87977-7

te connectivity / amp

Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 24POS .100 POL DUAL Headers & Wire Housings 24 HSG COMP DR .1POL 24 MODIV HSG COMP DR .100 POL 24 MODIV HSG COMP DR .100 POL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥26.8328
详情

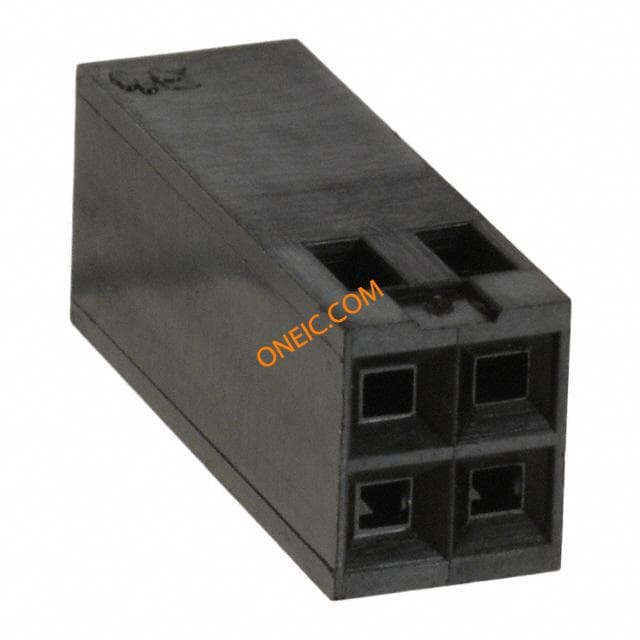

4-87456-9
