点击放大查看

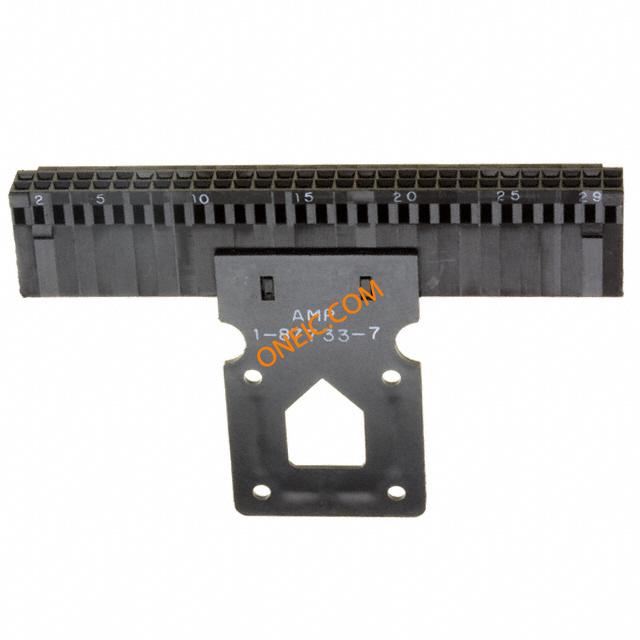

1-87733-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 60POS .100 POL W/STR .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 60Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG W/STR RLF DR MRKD
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装规格

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.1 mm [ .24 in ]	长度	76.2 mm [ 3 in ]
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	导线线规	20-32 AWG
排间距	0.100" (2.54mm)	触头类型	Male or Female
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	磷青铜	壳体材料	尼龙 - GF
包装数量	25	端接样式	插座
触点数	60	接触件端接	Crimp
位数	60	安装孔直径	带有
静电放电屏蔽	带有

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品特性	Strain Relief
产品子类型	连接器	抽头/步进数	2
其他规格	是

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65 – 105
