2-103167-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 60 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 60POS R/A DUAL 30AU Headers & Wire Housings 60 MODII HDR DRRA SH 48 Conn Shrouded Header HDR 60 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded60 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 60 MODII HDR DRRA SHRD .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 24 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Detent Windows | 连接器阻抗 | 制动器窗口 |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
| 保护额定电压（VPR） | 750 Vrms | ||
机械参数
| 颜色 | Black | 深度 | 16.23 mm |
| 间距 | 2.54 mm | 高度 | 10.49 mm |
| 底座类型 | 带有 | 锁定类型 | 带有 |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 外壳颜色 | Black | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Detent Lock | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | 4- 面 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 83.31 mm |
| 包装数量 | 24 | 面板安装类型 | 通孔 |
| 端接样式 | Through Hole | 第一连接器类型 | 带罩 |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 60 | 端接表面处理 | 带有 |
| 位数 | 60 | 柱体长度（配合） | 8.08 mm |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 0.318" (8.08mm) |
| 端子柱长度 | 3.43 mm | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 外壳尺寸，连接器布局 | 3.81 mm [ .15 in ] |
| 第一连接器安装特征 | 否 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 防护等级 | 带罩 |
| 工作温度 | - 55 C to + 105 C | 封装热阻 | 1.397 mm [ .055 in ] |
| 结工作温度 | 否 | ||
文档与媒体
相关型号

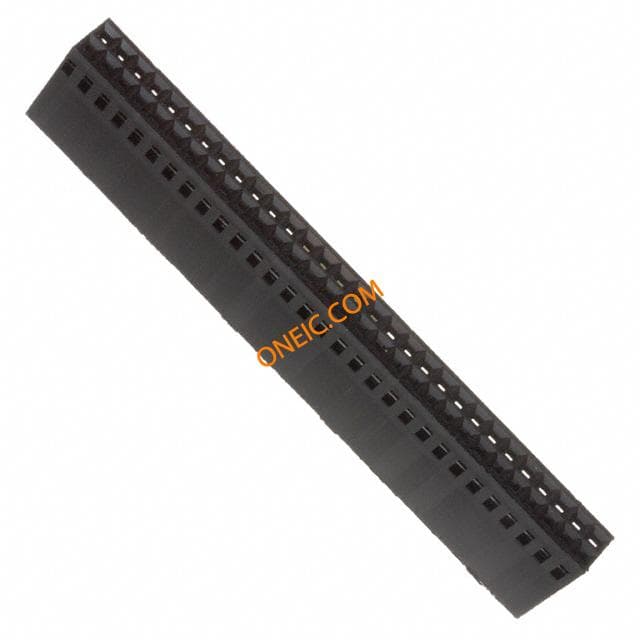

5-87456-1
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 60POS .100 DUAL ROW 60 MODIV HSG COMP DR .100CL
5-87631-2
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings 60 HSG DR MRKD .1POL CONN HOUSING 60POS .100 POL DUAL Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 60Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG DR MRKD .100 POL
1-87733-7
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 60POS .100 POL W/STR .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 60Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG W/STR RLF DR MRKD

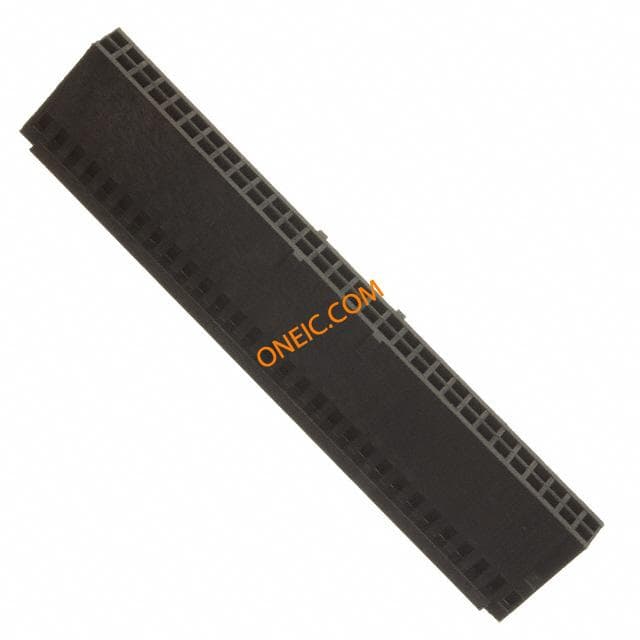

5-87631-1
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 60POS .100 POL DUAL Headers & Wire Housings 60P .1 MODIV HOUSNG Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG COMP DR .100 POL

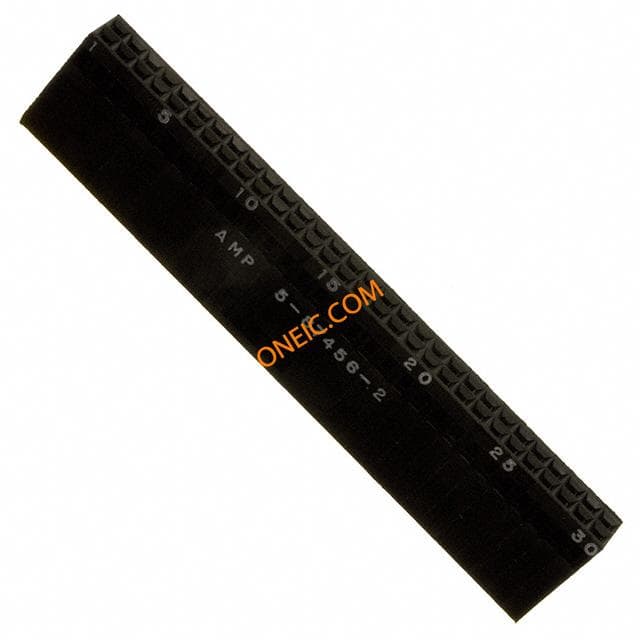

5-87456-2
