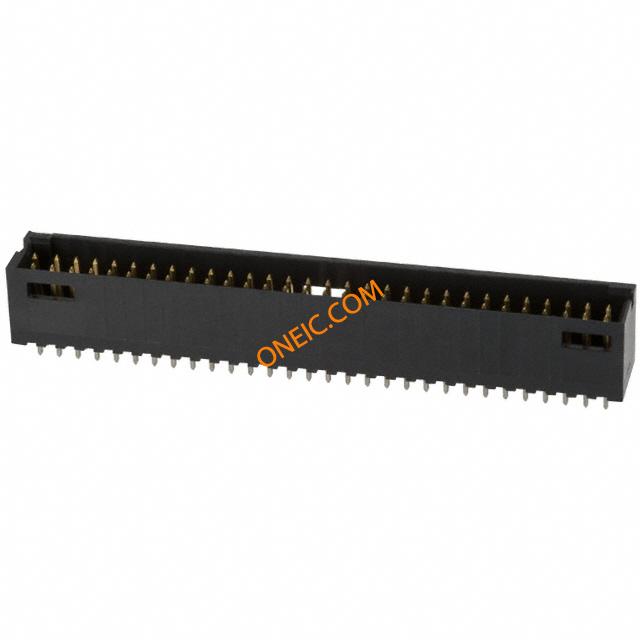

7-102618-8

点击放大查看

7-102618-8

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 60POS 15AU 60 MODII HDR DRST SHRD .100CL 60 MODII HDR DRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格48标准包装数量Trays

合规参数

RoHSLead free / RoHS Compliant标准CSA LE7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

连接器阻抗制动器窗口最大额定电流3
保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型不带包装方式Tray
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）1.68 mm [ .066 in ]
引脚样式直角排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
触头类型Male Pin第一连接器否
第二连接器With安装类型Through Hole
连接器类型Header, Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式标准
排数2外壳材料（壳体）4- 面
插入件材料磷青铜壳体材料热塑性
包装数量48面板安装类型通孔
端接样式插针外径.64 mm [ .025 in ]
触点数60端接表面处理带罩
位数60安装孔直径带有
接触长度 - 配合0.318" (8.08mm)端子柱长度3.18 mm [ .125 in ]
接触镀层厚度15µin (0.38µm)静电放电屏蔽不带
端接镀层厚度100 – 200

产品信息

类型Shrouded Header连接器性别HDR
钥匙类型否产品子类型连接器
选择性装载No加载位置数All

环境参数

密封等级不带温度No
工作温度-65 – 105封装热阻1.397 mm [ .055 in ]
