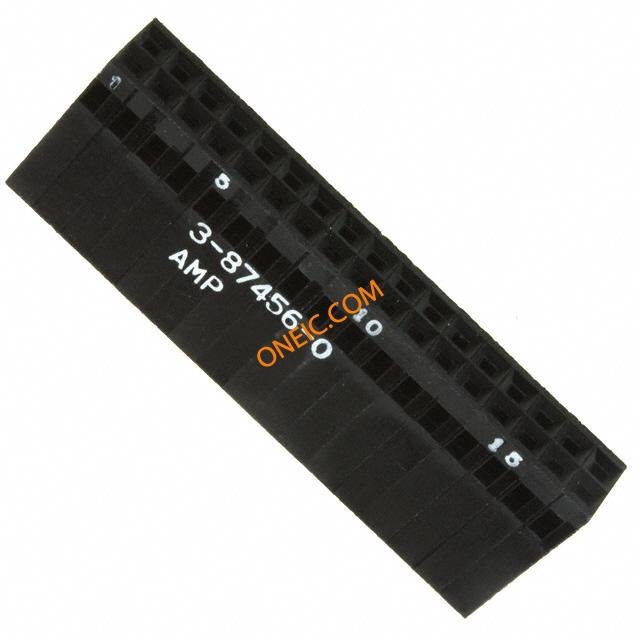

3-87456-0

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings 34P MOD IV HOUSING Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;34;250VAC;3A;750V 34 MODIV HSG DR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85369010

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 V
击穿电压	750V	最大额定电流	3A
绝缘电阻	5000 MOhms	最小供电电压	250VAC
连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.1 mm
长度	1.705in	重量	0.003
包装方式	Bulk	排间距	0.100" (2.54mm)
端接方式	Crimp	触头类型	Female Socket
极化	No	外壳颜色	Black
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	接触镀层	:-
排数	2	触头材料	:-
壳体材料	Nylon	总长度	45.72 mm
主要材料	InterconnectSystem	连接器 - 电缆	Yes
插针孔直径	0.1"	触点数	34
接触件端接	Crimp	位数	34

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU/MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
应用细节	Wire-to-Board	矩阵（列×行）	0.100x0.100in.

环境参数

工作温度

+105°C

文档与媒体

PDF 文档

1650916.pdf

相关型号

6-103168-5

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 34POS 30AU Headers & Wire Housings HDR 2X17P VRT T/H Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM 34 MODII HDR DRST SHRD .100CL

¥17.6120

详情

1-104317-8

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings OBSOLETE CONN HEADER 34POS DUAL VERT GOLD

详情

1-102619-5

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 34POS 15AU Headers & Wire Housings ACTION PIN VERT 34P dual .150 end Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 34Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRST SHRD .100CL

¥26.3160

详情

1-103168-5

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 34POS 30AU Headers & Wire Housings SHROUDED VER DUAL 34 detent windows Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 34Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRST SHRD .100CL

¥50.7280

详情

6-102617-5

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 34POS 15AU Headers & Wire Housings 34P HDR DRRA SHRD .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRRA SHRD LF

¥27.9902

详情

1-87589-3

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 34POS PCB TIN Headers & Wire Housings SHROUDED VER DUAL 34 detent windows .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded34 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRST SHRD .100CL

¥21.2133

详情

1-102570-5

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 34POS 15AU Headers & Wire Housings ACTION PIN R.A. 34P dual .150 end .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 34Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRRA SHRD .100CL

¥14.7900

详情

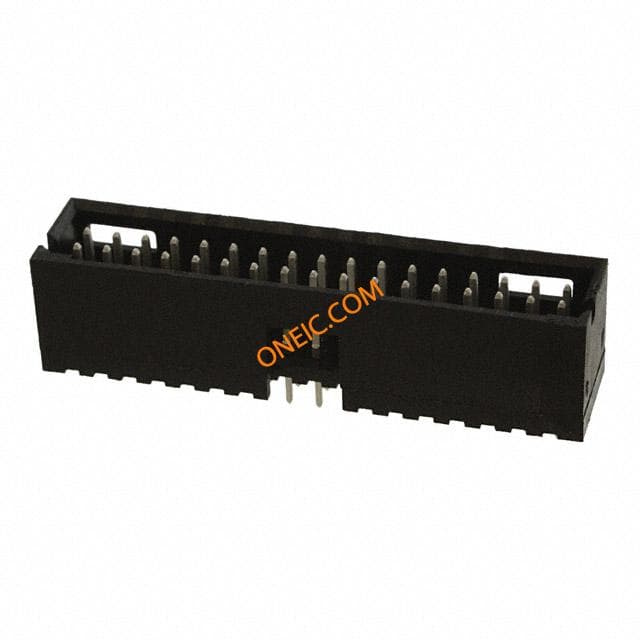

6-87589-3
