6-102617-5

点击放大查看

6-102617-5

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 34POS 15AU Headers & Wire Housings 34P HDR DRRA SHRD .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRRA SHRD LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格96
产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量96

合规参数

RoHSLead free / RoHS Compliant标准CSA LE7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
最大额定电流3 A绝缘电阻5000 MOhms
保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型带有包装方式Tray
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）1.68 mm [ .066 in ]
引脚样式直角排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
触头类型Male Pin第一连接器否
第二连接器With安装类型Through Hole, Right Angle
连接器类型Header, Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式标准
排数2外壳材料（壳体）4- 面
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic包装数量96
面板安装类型通孔端接样式Through Hole
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数34端接表面处理带罩
位数34柱体长度（配合）8.08 mm
安装孔直径带有接触长度 - 配合0.318" (8.08mm)
端子柱长度3.43 mm接触镀层厚度15µin (0.38µm)
静电放电屏蔽不带端接镀层厚度100 – 200

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Headers选择性装载No
加载位置数All

环境参数

密封等级不带温度No
工作温度- 55 C to + 105 C封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
6-102617-5

相关型号

1-102394-5

1-102394-5

te connectivity / amp

Conn Housing RCP 34 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 34POS DUAL Headers & Wire Housings RCPT 34 POS DUAL Conn Housing RCP 34 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 34 AMP MODU MT HSG DR .100CL

¥14.3480
详情
1-102398-5

1-102398-5

te connectivity / amp

Conn IDC Connector RCP 34 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 34POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 34P 26-22 Conn IDC Connector RCP 34 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 34Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector;MT(IDC);26to22AWG;InsulationDisplacementCrimp(IDC);Dual 34 AMPMODU MT ASSY DR .100CL

¥62.0568
详情

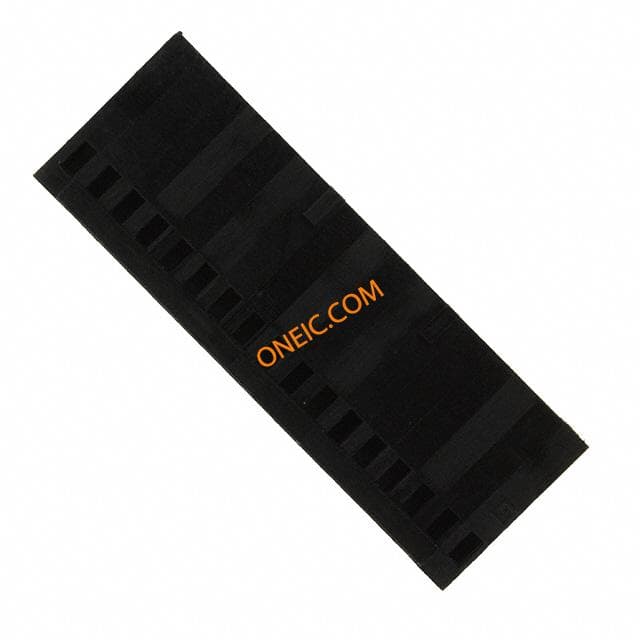

2-87631-9

2-87631-9

te connectivity / amp

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 POL DUAL Headers & Wire Housings 34 MODIV HSG COMP DR Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 34 MODIV HSG COMP DR .100 POL

¥8.2960
详情
6-534998-7

6-534998-7

te connectivity / amp

Conn Socket Strip RCP 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 34POS .100 VERT DUAL Headers & Wire Housings REC 2X17P VRT T/H Conn Socket Strip RCP 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod IV34 PositionsSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 34 MODIV VRT DR CE 100/125

¥12.9880
详情

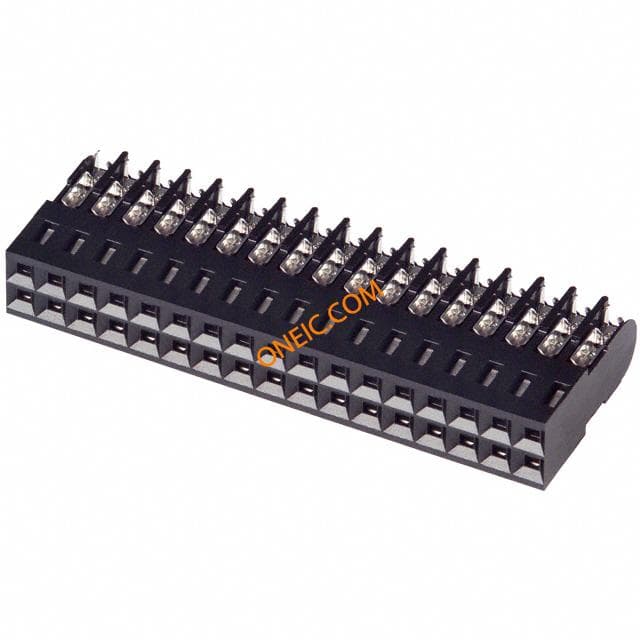

6-102398-5

6-102398-5

te connectivity / amp

Conn IDC Connector RCP 34 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 34POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 34P 26-22 Conn IDC Connector RCP 34 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Connector;MT(IDC);26to22AWG;InsulationDisplacementCrimp(IDC);Dual 34 AMPMODU MT ASSY DR .100CL

¥61.6760
详情
6-534206-7

6-534206-7

te connectivity / amp

Conn Socket Strip SKT 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 34POS .100 VERT DUAL Headers & Wire Housings REC 2X17P VRT T/H Conn Socket Strip SKT 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 34Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 34WAY, 2ROW CONN RECEPT 34POS TE Connectivity AMPMODU Mod II 系列 2行 34路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 34 MODII VRT DR CE 100/115

¥16.7280
详情
1-102448-5

1-102448-5

te connectivity / amp

Conn IDC Connector RCP 34 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings HSG DUAL 34P 22-20 .100 AMPMODU Headers, Housings & Contacts CONN RCPT 34POS DL .100 IDC GOLD

详情
1-535598-7

1-535598-7

te connectivity / amp

Conn Socket Strip SKT 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 34POS .100 DUAL T/H AU Headers & Wire Housings 34 MODIV VRT DR CE RCPT ASSY Conn Socket Strip SKT 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod IV34 PositionsSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 34 MODIV VRT DR CE RCPT ASSY

¥16.1160
详情
4-87977-2

4-87977-2

te connectivity / amp

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 34POS DL .100 CRIMP

详情
87733-8

87733-8

te connectivity / amp

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 34POS .100 POL W/STR Headers & Wire Housings MOD IV DUAL ROW 34P .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 34 MODIV HSG W/STR RLF DR MRKD

¥25.0240
详情

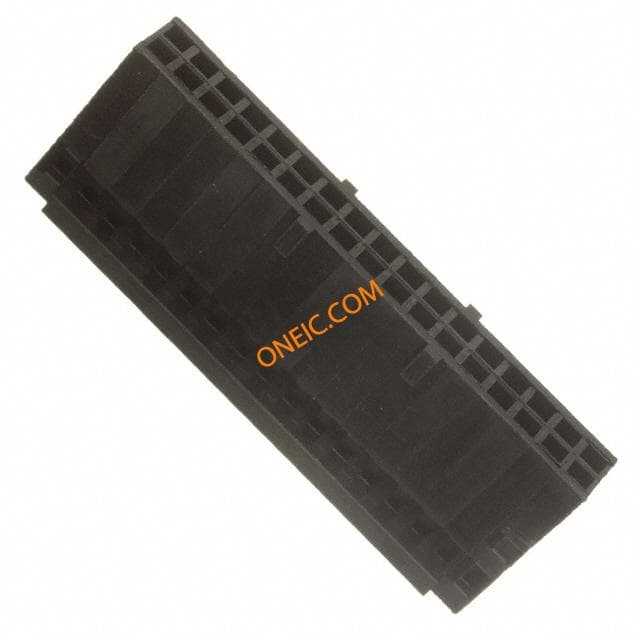

3-87631-0

3-87631-0

te connectivity / amp

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 POL DUAL Headers & Wire Housings MOD IV DUAL ROW 34P Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;34;250VAC;3A;750V 34 MODIV HSG DR MRKD .100 POL

¥9.0600
详情
1-534206-7

1-534206-7

te connectivity / amp

Conn Socket Strip SKT 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 34POS .100 VERT DUAL Headers & Wire Housings REC 2X17P VRT T/H 780 Conn Socket Strip SKT 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 34Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 34 MODII VRT DR CE 100/115

¥12.2400
详情
3-87456-0

3-87456-0

te connectivity / amp

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings 34P MOD IV HOUSING Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;34;250VAC;3A;750V 34 MODIV HSG DR MRKD .100CL

¥7.6160
详情

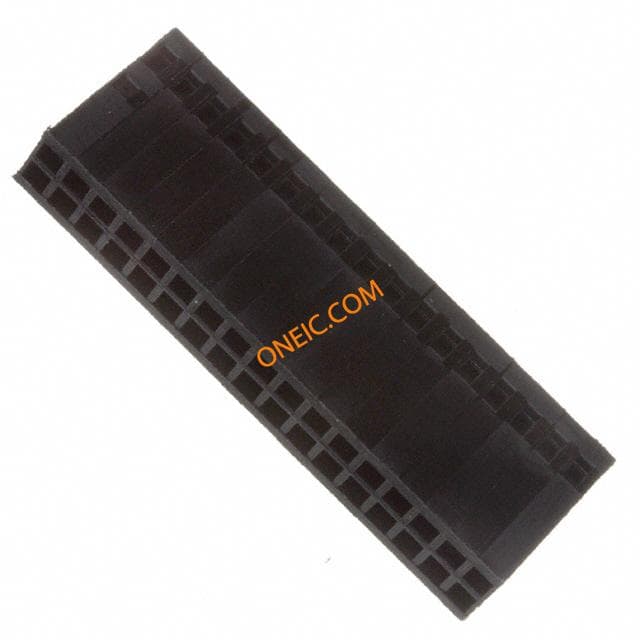

2-87456-9
