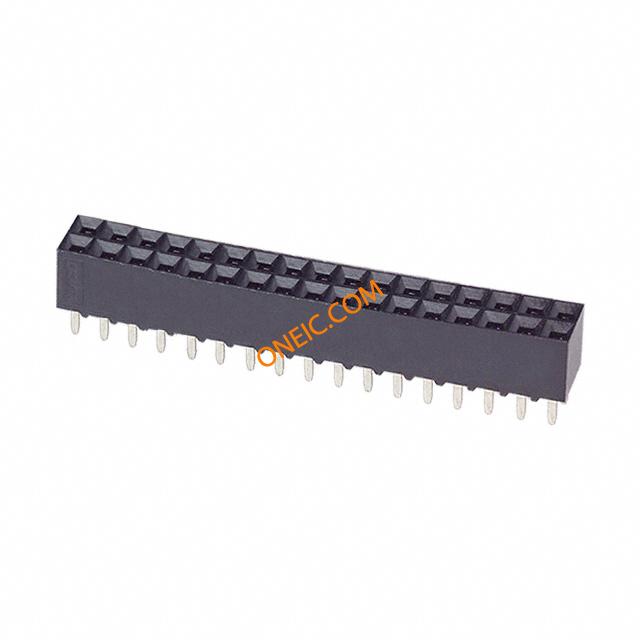

6-534998-7

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 34POS .100 VERT DUAL Headers & Wire Housings REC 2X17P VRT T/H Conn Socket Strip RCP 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod IV34 PositionsSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 34 MODIV VRT DR CE 100/125
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	13

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
MIL-C-55032	No	材料阻燃等级	UL 94V-0

电气参数

输入电阻	5000	钳位电压	750
额定交流电压	333	连接器阻抗	Closed Entry, Top
最大额定电流	2 A	初始电阻（最小）	12

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	包装方式	Tube
壳体颜色	黑色	引脚样式	圆形
轴径尺寸	不带	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle, Bottom or Top Entry
接触镀层	Gold Over Nickel	安装样式	低
排数	2	插入件材料	磷青铜
操作力	Standard	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	13
面板安装类型	通孔 - 焊接	端接样式	Through Hole
触点数	34	接触件尾部长度	3.18
位数	34	兼容外壳尺寸（如TM-700等）	与接头配合
典型触点布局	Short Point	端子柱长度	3.18 mm [ .125 in ]
接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	RCP	系列	AMPMODU MOD IV
可密封	否	可堆叠	Yes
产品子类型	Receptacles / Sockets - PCB	装配配置	Board Standoff
加载位置数	All

环境参数

温度范围	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]

文档与媒体

在线文档

TE.Connect?C=1&PN=1-534998-7&M=BYPN&LG=1&I=13

在线文档

6-534998-7?RQPN=6-534998-7
